Light beams in the same direction
s
m
a
x
.
a
1
2
1
2

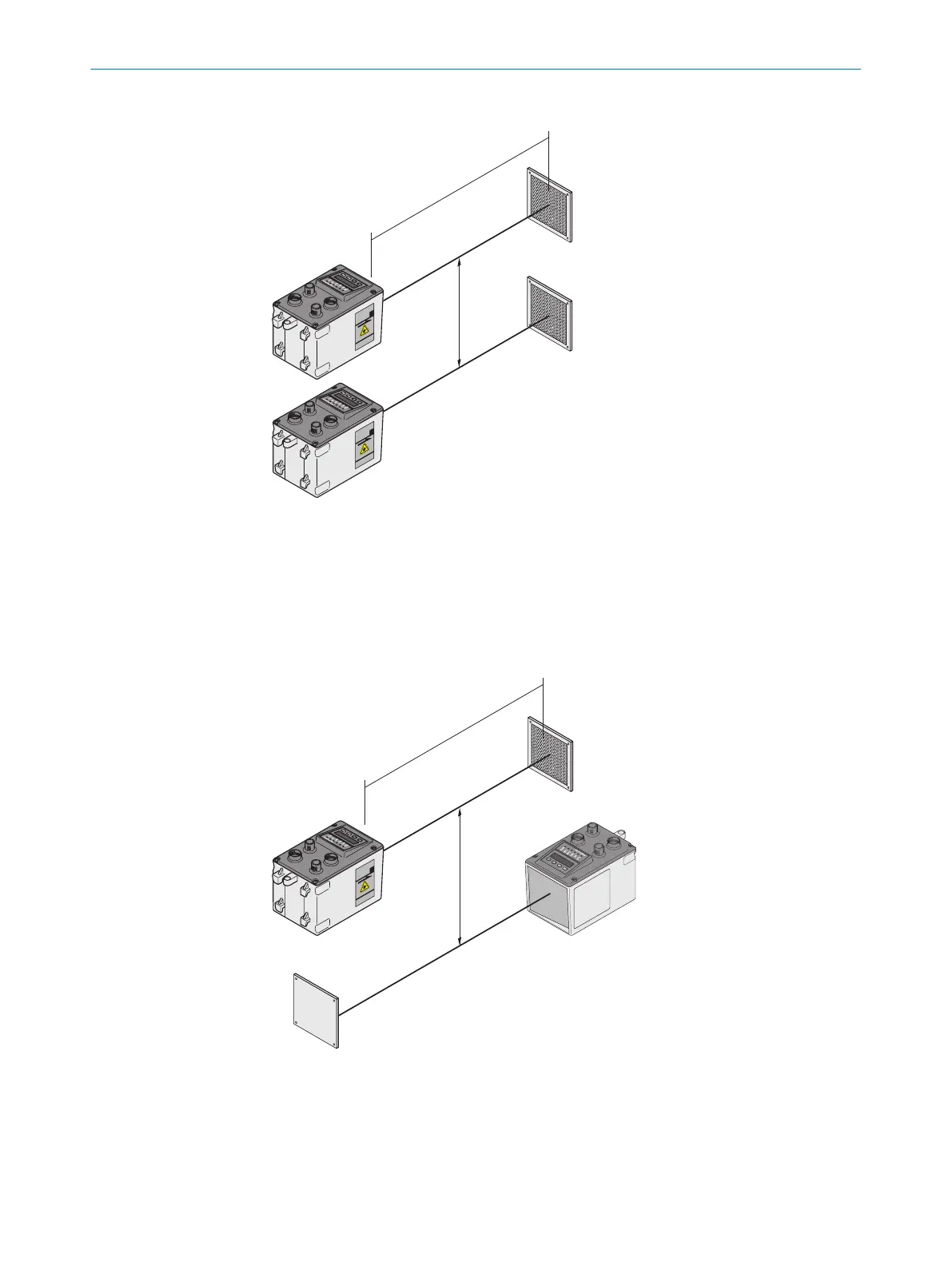

Figure 8: Placement of two distance sensors light beams in the same direction
1
Distance sensor
2
Reflector
a Minimum distance
s
max
Maximum travel distance
Light beams in opposite directions
a
1
2
1
2
s
m
a
x
.
Figure 9: Placement of two distance sensors light beams in opposite directions
1
Distance sensor
2
Reflector
a Minimum distance
s
max
Maximum travel distance
