Technical specifications
Load
type
I[A] Switching frequency
Switching operations
per annum
B
10d
PFHd
0.1 1/h 8760 10,000,000 5.00 x 10
-10
0.75 1/h 8760 4,150,000 1.20 x 10
-09
3 1/h 8760 400,000 1.20 x 10
-08
AC15
5 1/h 8760 70,000 7.20 x 10
-08
1 1/h 8760 2,000,000 2.50 x 10
-09
DC13
3 1/h 8760 450,000 1.10 x 10
-08
2 1/h 8760 1,000,000 5.00 x 10
-09
AC1
4 1/h 8760 600,000 8.40 x 10
-09

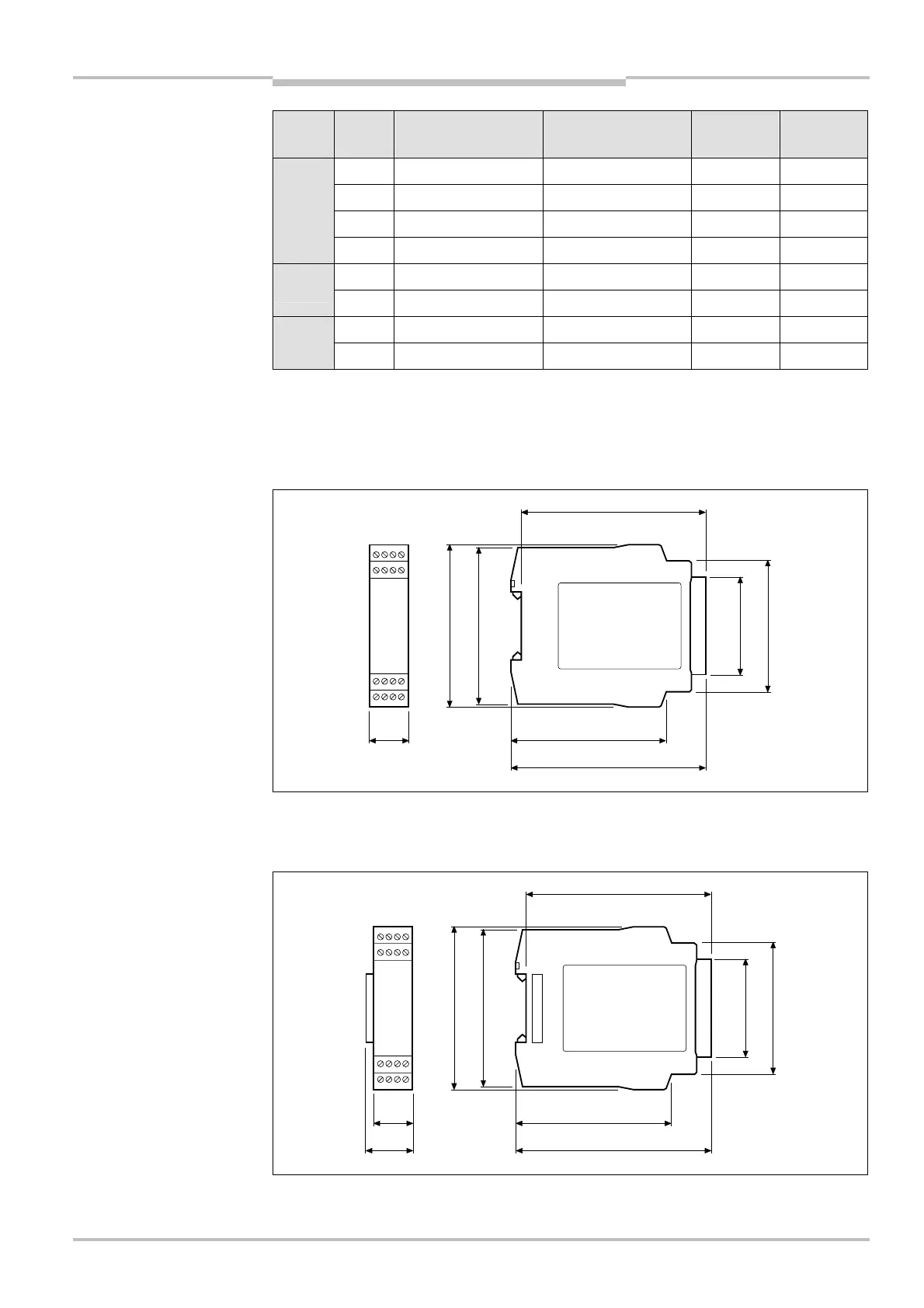

11.2 Dimensional drawings
11.2.1 UE410-MU and UE410-GU main modules
11.2.2 UE410-XU, UE410-8DI, UE410-2RO, UE410-4RO, UE410-PRO, UE410-DEV,
UE410-CAN modules
Tab.
46
:
PFHd values
Fig.
50
:
Dimensional drawing
UE410-MU and E410-GU
(mm)
Fig.
51
:
Dimensional drawing
UE410-XU, UE410-8DI,
UE410-2RO, UE410-4RO,
UE410-PRO, UE410-DEV,
UE410-CAN (mm)
114.4
93.7
120.8
22.5
96.5
93.3
58
78
114.4
93.7
120.8
29
22.5
96.5
93.3
58
78

SICK UE410-MU Specifications

General

Operating Voltage	24 V DC
Safety outputs	2
Response time	≤ 20 ms
Protection class	IP20
Housing material	Plastic
Safety Integrity Level	SIL 3
Performance Level	PL e
Number of Outputs	2
Mounting	DIN rail
Supply voltage	24 V DC
Current consumption	≤ 100 mA
Output type	Semiconductor
Switching current	≤ 0.5 A
Connection	Screw terminals
