3.8.1 AND link
The switch settings 1 to 6 of the UE410-8DI add inputs to the UE410-MU/UE410-GU/
UE410-XU modules and link them with AND logic.
If the input conditions I1-I4 and I5-I8 are logical “1”, the AND function is active and the
LED Q
A
or Q
B
is illuminated.

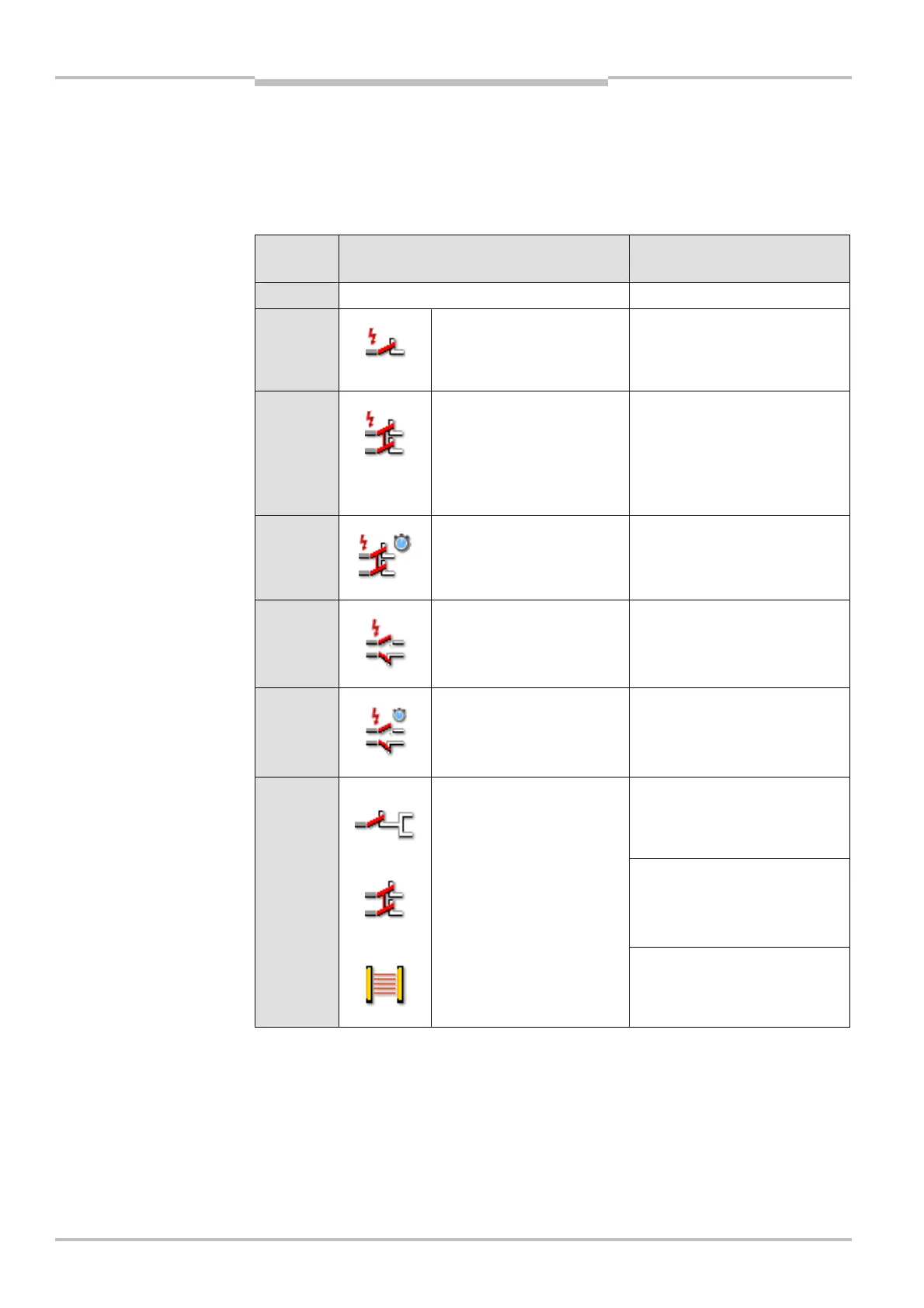

Switch
position
Application Electrical configuration
0 For unused inputs –
1 • Emergency stop button
• Safety switch
• Testable sensors
Single-channel N/C contact
2 • Emergency stop button
• Safety switch
• Switching mat (pressure-
sensitive)
• Flexi Loop
Dual-channel N/C contact,
equivalent, cross-circuit
detecting
3 • Emergency stop button
• Safety switch
• Flexi Loop
Dual-channel N/C contact,
equivalent, cross-circuit
detecting, synchronous time
monitoring 1500 ms
4 • Safety switch
Dual-channel N/C / N/O
contact, complementary, cross-
circuit detecting
5 • Safety switch
• RE300
Dual-channel N/C / N/O
contact, complementary, cross-
circuit detecting, synchronous
time monitoring. 1500 ms
Single-channel N/C contact
Dual-channel N/C contact,
equivalent
6 • Emergency stop button
• Safety switch
• ESPE (e.g. C4000)
Dual-channel semiconductor
output
Tab.
21
:
UE410
-
8DI switch
positions

SICK UE410-MU Specifications

General

Operating Voltage	24 V DC
Safety outputs	2
Response time	≤ 20 ms
Protection class	IP20
Housing material	Plastic
Safety Integrity Level	SIL 3
Performance Level	PL e
Number of Outputs	2
Mounting	DIN rail
Supply voltage	24 V DC
Current consumption	≤ 100 mA
Output type	Semiconductor
Switching current	≤ 0.5 A
Connection	Screw terminals
