Product description
3.5 UE410-XU module
The UE410-XU module is an input/output extension or a subsystem with 4 safe inputs and
outputs. It has the identical functionality to the UE410-MU main module, however without
the system save using the ENTER button.
The UE410-XU cannot be used as a stand-alone device and always requires a UE410-MU
main module.
3.5.1 Controls and status indicators
Indicators, controls and terminal assignments are the same as on the UE410-MU main
module (see Tab. 9-Tab. 11).

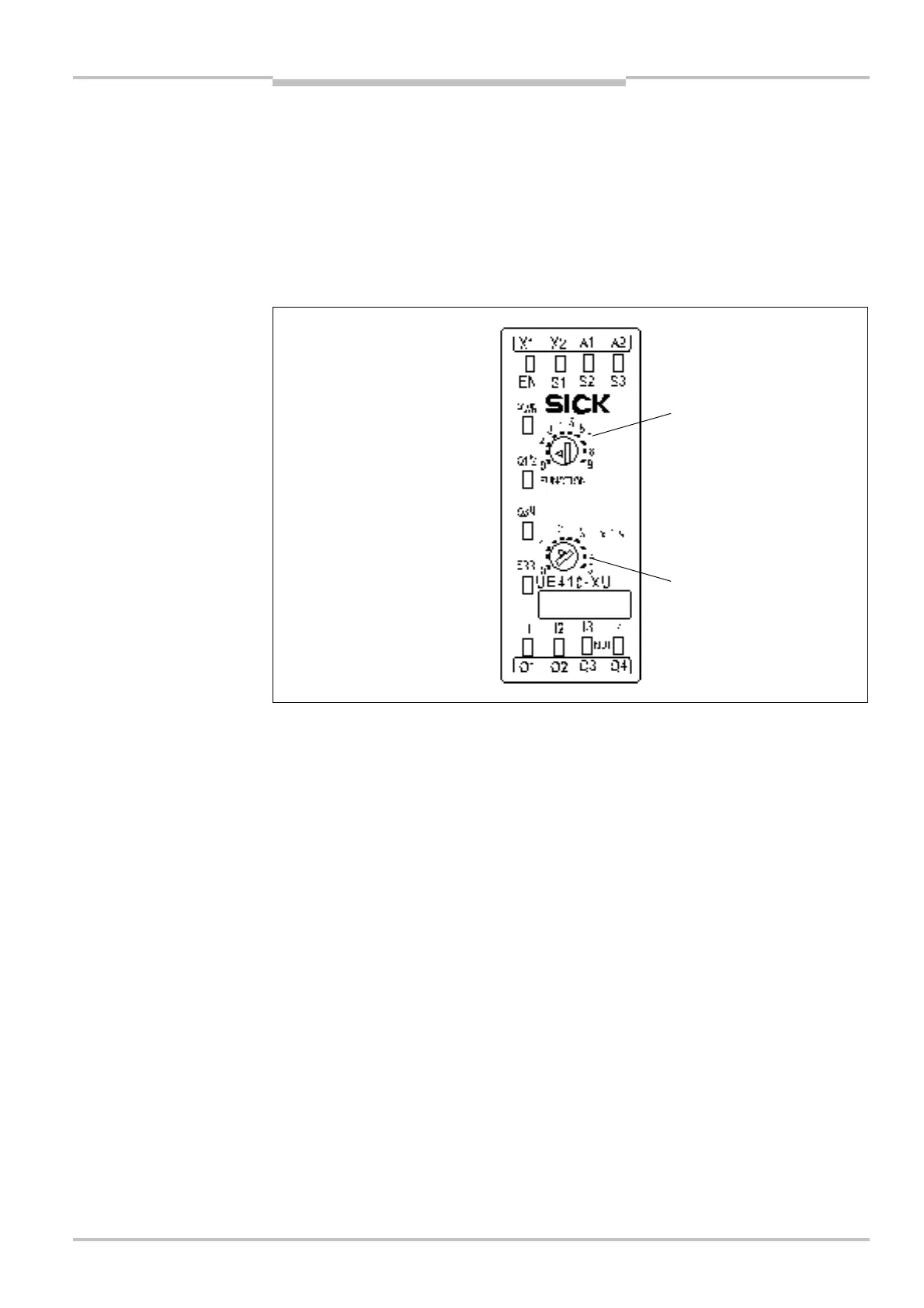

Fig.
11
:
UE410
-
XU controls
and status indicators
Program switch
Switch for off delay
(not on UE410-xxxT0)

SICK UE410-MU Specifications

General

Operating Voltage	24 V DC
Safety outputs	2
Response time	≤ 20 ms
Protection class	IP20
Housing material	Plastic
Safety Integrity Level	SIL 3
Performance Level	PL e
Number of Outputs	2
Mounting	DIN rail
Supply voltage	24 V DC
Current consumption	≤ 100 mA
Output type	Semiconductor
Switching current	≤ 0.5 A
Connection	Screw terminals
