Product description
3.3.1 Controls and status indicators
LED indicators Meaning
PWR (green) Supply voltage present
Q1/Q2, Q3/Q4 (green) Switching state of the safety outputs (high level)
Q3/Q4 (green flashing) Q3/Q4 to high level during the course of the delay time
ERR (red flashing)
Indication for erroneous operational status on this
module, see chapter 10 “Diagnostics” on page 93
ERR (red)
Indication for erroneous operational status on the whole
system (the error is on another module), see chapter 10
“Diagnostics” on page 93
EN, S1-S3 (green) Voltage is present.
I1-I4 (green) Signal is present.
I1/I2 flash in phase Cross-circuit between I1/I2
I3/I4 flash in phase Cross-circuit between I3/I4
I1/I2 flash out of phase Process error at I1/I2
I3/I4 flash out of phase Process error at I3/I4
I1 to I4 flashes
Synchronization time/concurrence error, expected signal
is not present at the respective input.
S1-S3 flashes Expected signal is not present (e.g. EDM or Reset).
Other indicators Device error, see chapter 10 “Diagnostics” on page 93

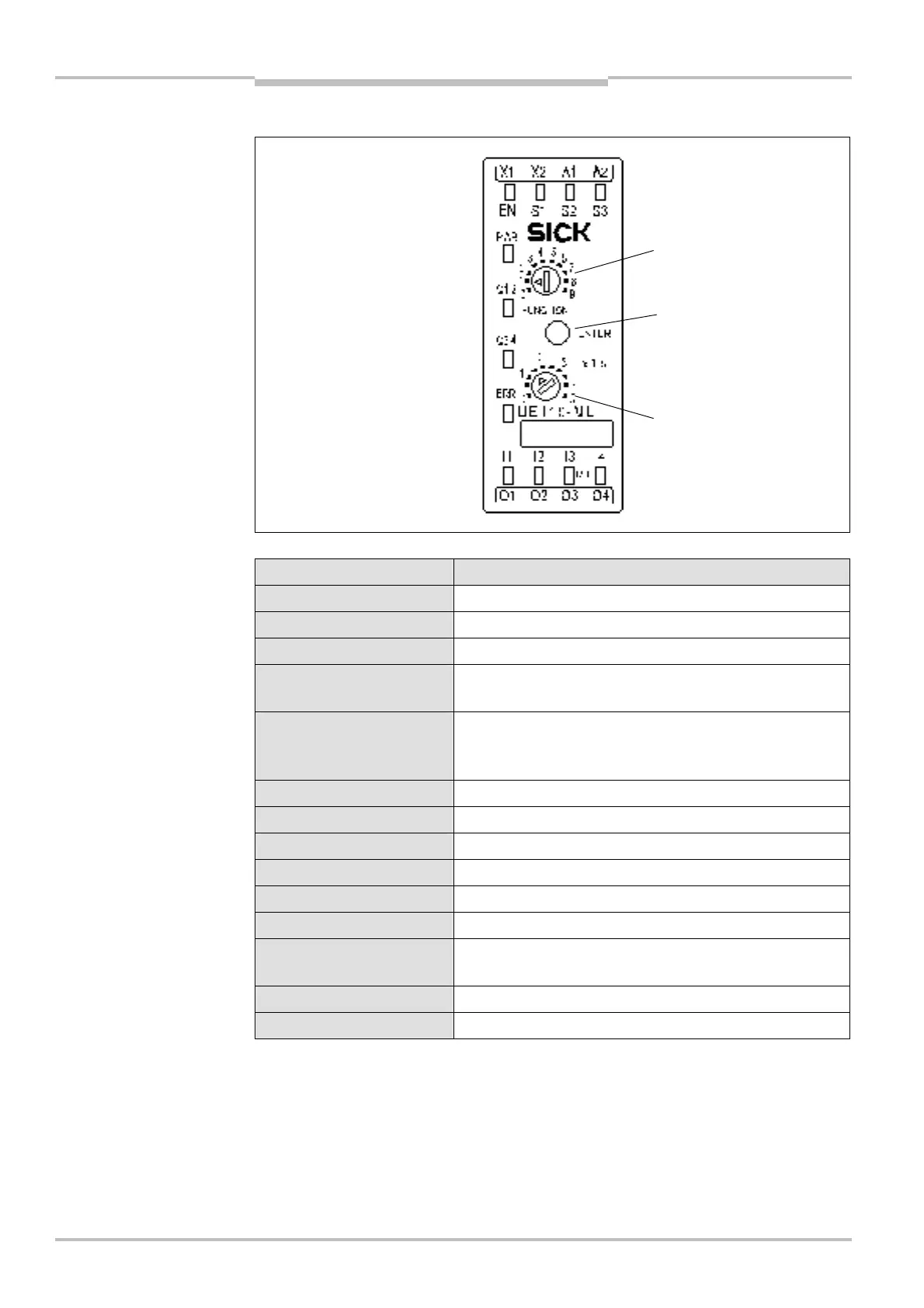

Fig.
7
:
UE410
-
MU controls
and status indicators
Tab.
9
:
UE410
-
MU
indications
Button for accepting the
system configuration
Program switch
Switch for off delay
(not on UE410-xxxT0),
see Tab. 10

SICK UE410-MU Specifications

General

Operating Voltage	24 V DC
Safety outputs	2
Response time	≤ 20 ms
Protection class	IP20
Housing material	Plastic
Safety Integrity Level	SIL 3
Performance Level	PL e
Number of Outputs	2
Mounting	DIN rail
Supply voltage	24 V DC
Current consumption	≤ 100 mA
Output type	Semiconductor
Switching current	≤ 0.5 A
Connection	Screw terminals
