Chapter 4 Operating instructions
Flexi Classic
78 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8011509/YPP0/2015-10-26
Subject to change without notice
Special applications and
functions
4.12 Grouping of subsystems
In case of single-channel wiring of a safety capable output (Q1-Q4) to a signal input (EN), it
is possible to achieve category 4 in accordance with EN ISO 13 849-1 or SILCL3 in accord-
ance with EN 62 061.
Exclude cross-circuits by means of appropriate cabling!
If several modules are used (> 1), cross-circuits on test pulse outputs (X1-Xn) can not
always be detected.
If two modules are used (UE410-MU or UE410-GU and a UE410- XU), cross-circuits on
safety outputs (Q1-Q4) can not always be detected.
= If several modules are used, the possibility of cross-circuits has to be excluded by
means of appropriate cabling measures (protected installation, plastic-sheathed cable
etc.).
Note

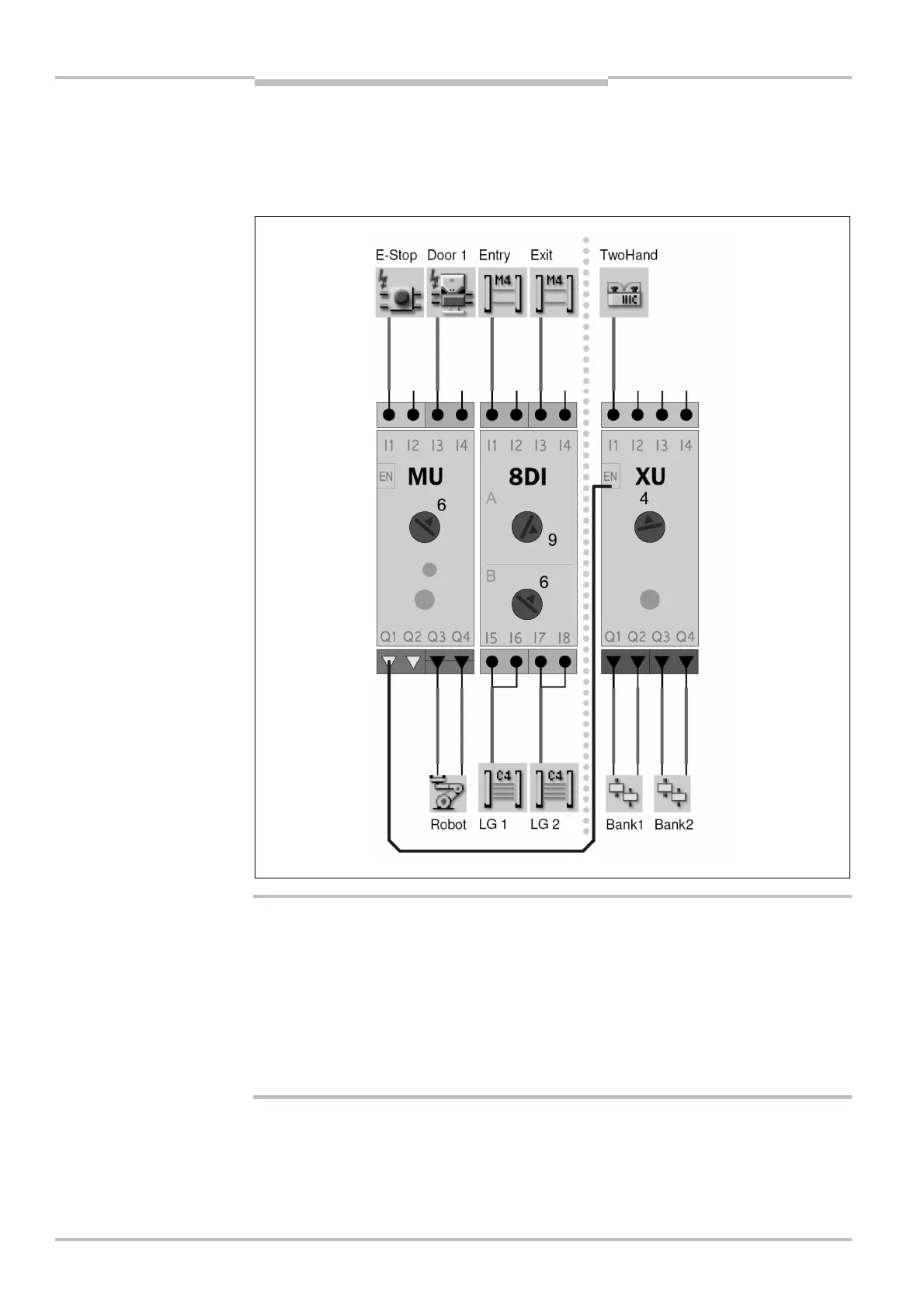

Fig.
33
:
Cascading of safety
circuits
WARNING

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the SICK UE410-MU and is the answer not in the manual?

SICK UE410-MU Specifications

General IconGeneral
Operating Voltage24 V DC
Safety outputs2
Response time≤ 20 ms
Protection classIP20
Housing materialPlastic
Safety Integrity LevelSIL 3
Performance LevelPL e
Number of Outputs2
MountingDIN rail
Supply voltage24 V DC
Current consumption≤ 100 mA
Output typeSemiconductor
Switching current≤ 0.5 A
ConnectionScrew terminals
