Application examples and
connection diagrams
7.5 C2000 and emergency stop on the UE410-MU/XU,
two hazardous areas
Program 7 with restart interlock and EDM
7.6 i11 on the UE410-MU/XU, two independent hazardous
areas
Program 8 with restart interlock and EDM

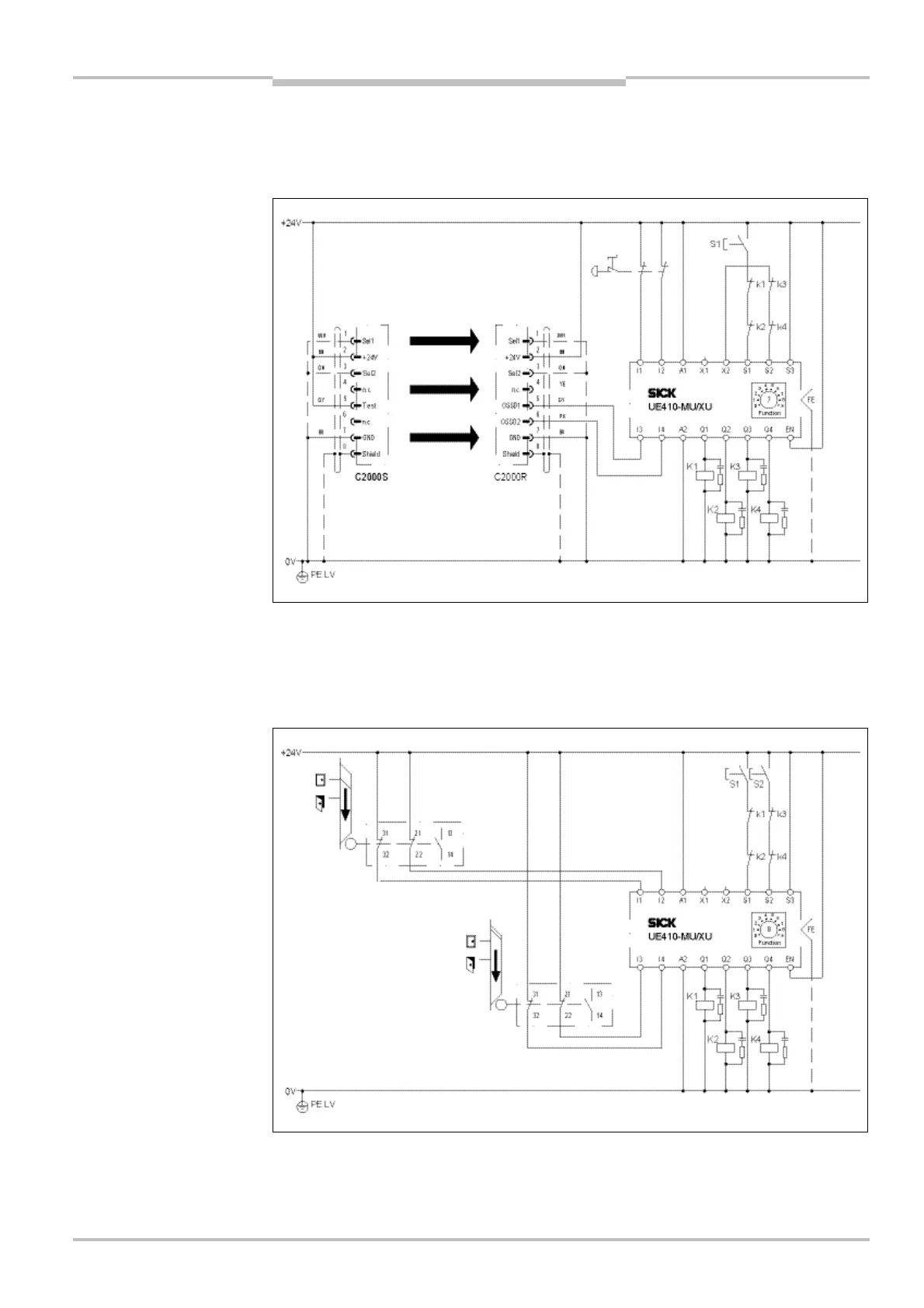

Fig.
45
:
Connection of a
C2000 and emergency stop
to the UE410-MU/XU
Fig.
46
:
Connection of two
i11 to the UE410-MU/XU, two
hazardous areas

SICK UE410-MU Specifications

General

Operating Voltage	24 V DC
Safety outputs	2
Response time	≤ 20 ms
Protection class	IP20
Housing material	Plastic
Safety Integrity Level	SIL 3
Performance Level	PL e
Number of Outputs	2
Mounting	DIN rail
Supply voltage	24 V DC
Current consumption	≤ 100 mA
Output type	Semiconductor
Switching current	≤ 0.5 A
Connection	Screw terminals
