Product description

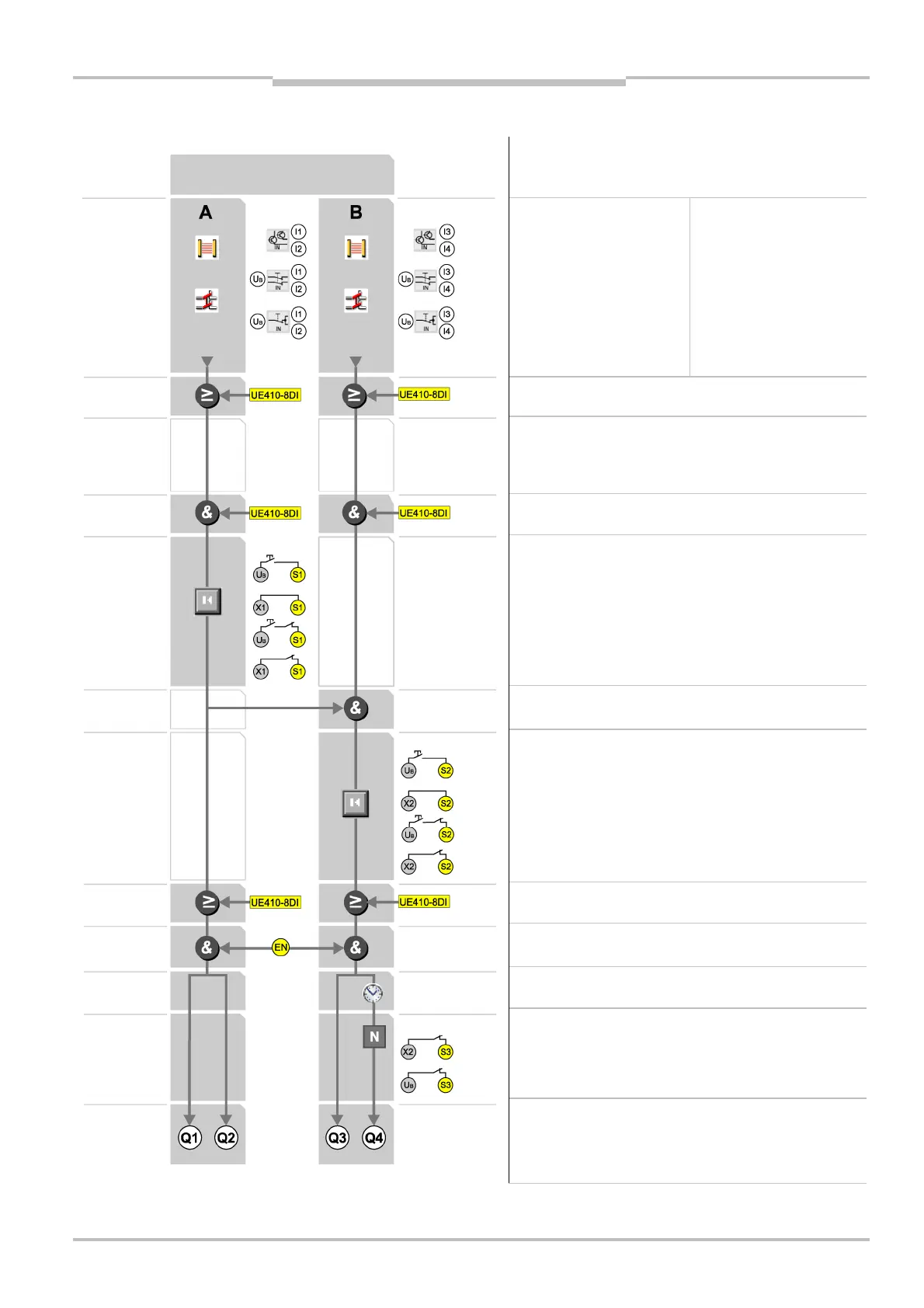

3.6.7 Program 7
A
Single-channel N/C contact
Dual-channel equivalent N/C
contact
(not cross-circuit detecting)
ESPE and sensors with
semiconductor output
B
Single-channel N/C contacts
Dual-channel equivalent N/C
contact
(not cross-circuit detecting)
ESPE and sensors with
semiconductor output
OR with UE410-8DI — switch position 7
AND with UE410-8DI — switch position 1-6
Connecting of S1:
∂ with restart interlock Q1/Q2, without EDM
∂ without restart interlock Q1/Q2, without EDM
∂ with restart interlock Q1/Q2, with EDM
∂ without restart interlock Q1/Q2, with EDM
Connecting of S2:
∂ with restart interlock Q3/Q4, without EDM Q3
∂ without restart interlock Q3/Q4, without EDM Q3
∂ with restart interlock Q3/Q4, with EDM Q3
∂ without restart interlock Q3/Q4, with EDM Q3
OR limited 60 s with UE410-8DI — switch position 8
Always wire ENABLE (expected 24 V DC)!
At ENABLE low Q1-Q4 are always low.
Off delay acts only on Q4
(not on UE410-xxxT0).
Connecting of S3:
with/without EDM Q4
∂ retriggering ON
∂ retriggering OFF
Undelayed OSSDs Q1-Q3
Delayable OSSD Q4
Inputs/
sensors
OR
Restart
interlock
Bypass
ENABLE
Off delay
Outputs
2 linked logic paths
AND
AND
R
estart
interlock
Retriggering

SICK UE410-MU Specifications

General

Operating Voltage	24 V DC
Safety outputs	2
Response time	≤ 20 ms
Protection class	IP20
Housing material	Plastic
Safety Integrity Level	SIL 3
Performance Level	PL e
Number of Outputs	2
Mounting	DIN rail
Supply voltage	24 V DC
Current consumption	≤ 100 mA
Output type	Semiconductor
Switching current	≤ 0.5 A
Connection	Screw terminals
