Product description
3.3 UE410-MU main module
The UE410-MU main module is the main module of the Flexi Classic modular safety con-
troller. Only one UE410-MU can be integrated for each Flexi Classic system. A UE410-MU
can control up to two applications acting independently or two applications that are depen-
dent on each other.
In order to increase the number of inputs, one or more UE410-8DI extension modules can
be used additionally.
An additional UE410-XU module can be used in order to increase the number of outputs
(for further information refer to section 4.12 “Grouping of subsystems” on page 78).
The system configuration is stored in the UE410-MU main module (ENTER button to accept
the program settings and system configuration) (for further information refer to section 9.1
“Accepting the system configuration” on page 92).
9 programs that can be set with a screwdriver at the program switch are available.

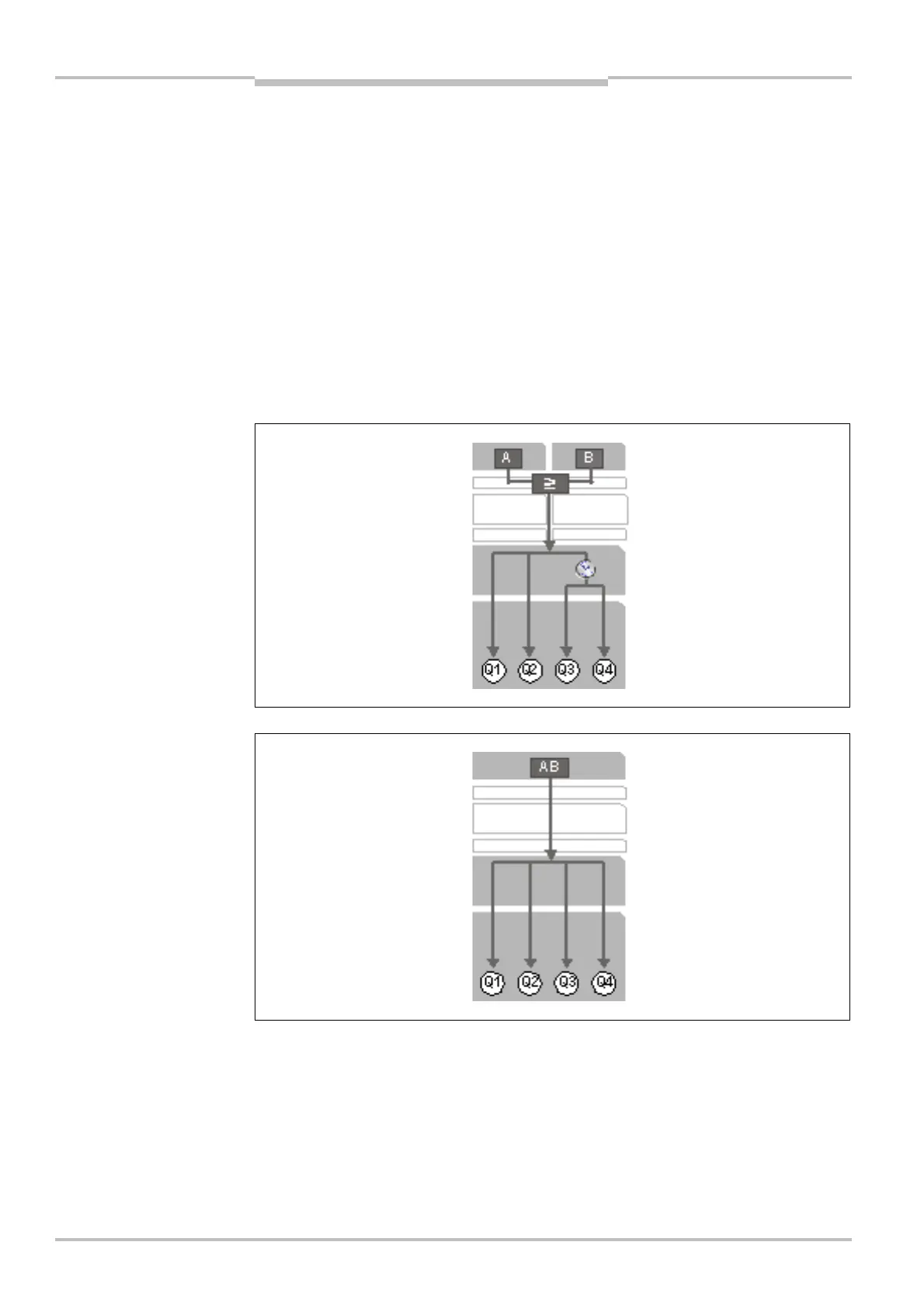

Fig.
3
:
Scheme programs 1
-
3
Fig.
4
:
Scheme program 4

SICK UE410-MU Specifications

General

Operating Voltage	24 V DC
Safety outputs	2
Response time	≤ 20 ms
Protection class	IP20
Housing material	Plastic
Safety Integrity Level	SIL 3
Performance Level	PL e
Number of Outputs	2
Mounting	DIN rail
Supply voltage	24 V DC
Current consumption	≤ 100 mA
Output type	Semiconductor
Switching current	≤ 0.5 A
Connection	Screw terminals
