SICK UE410-MU - Steps for dismantling the modules

Operating instructions Chapter 5
Flexi Classic
8011509/YPP0/2015-10-26 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 81
Subject to change without notice
Mounting/dismantling
= If there are several modules, slide the modules together individually in the direction of
the arrow until the side plug connection latches in.
= Install end clips on the right and left.
5.2 Steps for dismantling the modules
= Remove the plug-in terminals with wiring and the end clips.

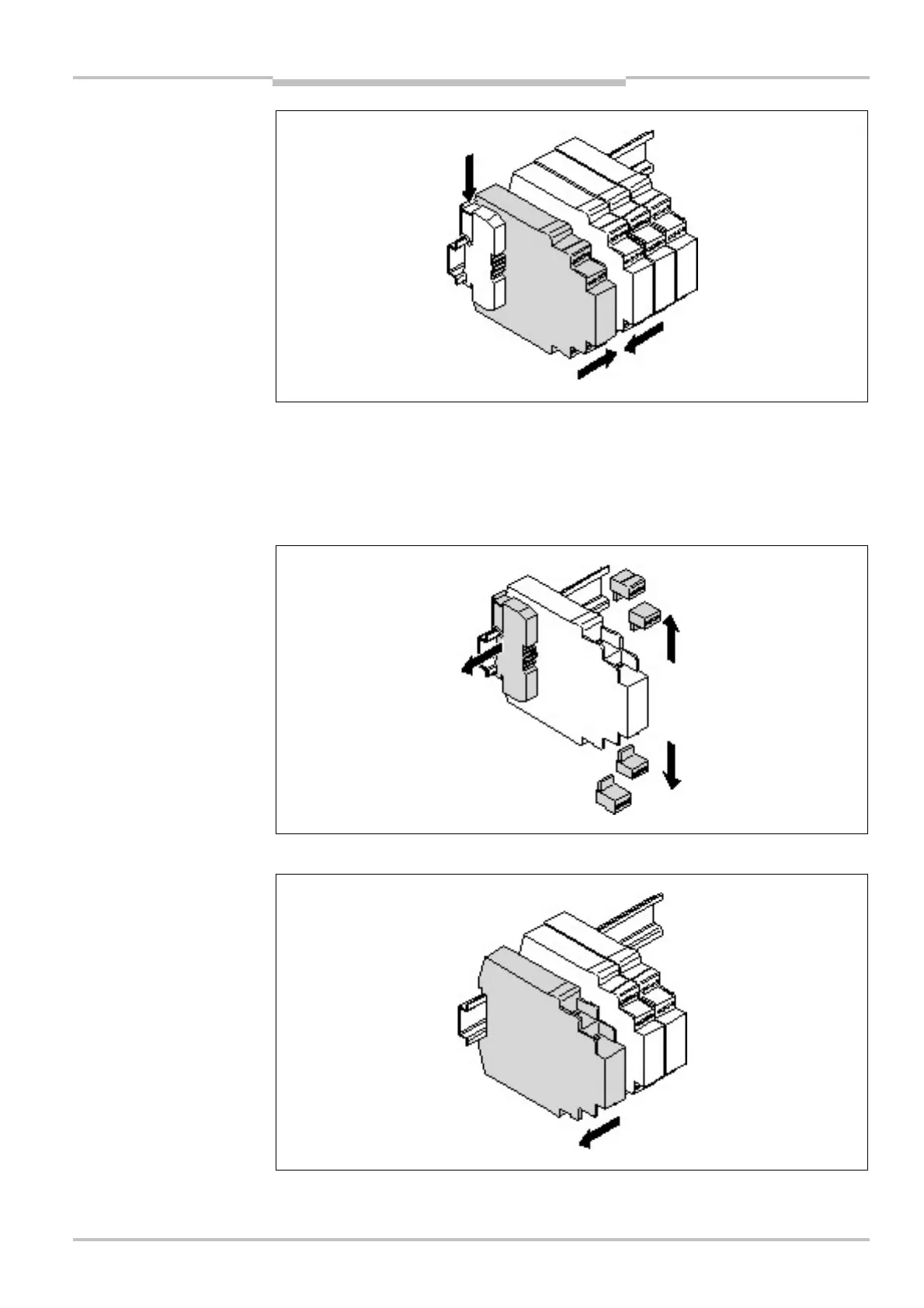

Fig.
36
:
Installing the end
clips
Fig.
37
:
Removing the plug
-
in
terminals
Fig.
38
:
Disconnecting the
plug connection
