Application examples and
connection diagrams

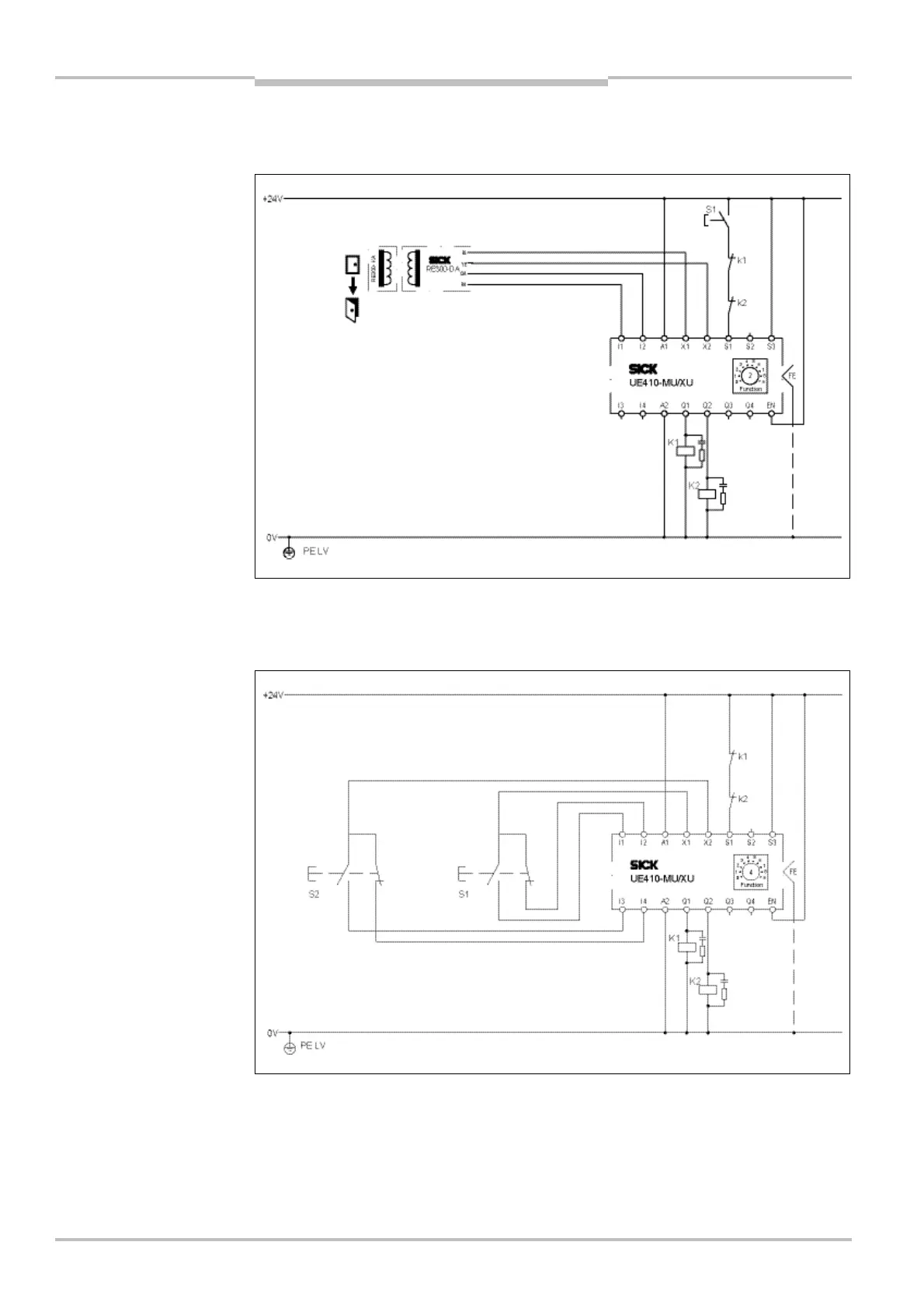

7.3 RE300 on the UE410-MU/XU
Program 2 with restart interlock and EDM
7.4 Two-hand IIIC on the UE410-MU/XU
Program 4 without restart interlock and with EDM
Fig.
43
:
Connection of an
RE300 to the UE410-MU/XU
Fig.
44
:
Connection of a two
-
hand switch IIIC to the
UE410-MU/XU

SICK UE410-MU Specifications

General

Operating Voltage	24 V DC
Safety outputs	2
Response time	≤ 20 ms
Protection class	IP20
Housing material	Plastic
Safety Integrity Level	SIL 3
Performance Level	PL e
Number of Outputs	2
Mounting	DIN rail
Supply voltage	24 V DC
Current consumption	≤ 100 mA
Output type	Semiconductor
Switching current	≤ 0.5 A
Connection	Screw terminals
