5 Drive Amplifier SD2B / SD2B plus
5.1 Type Plate

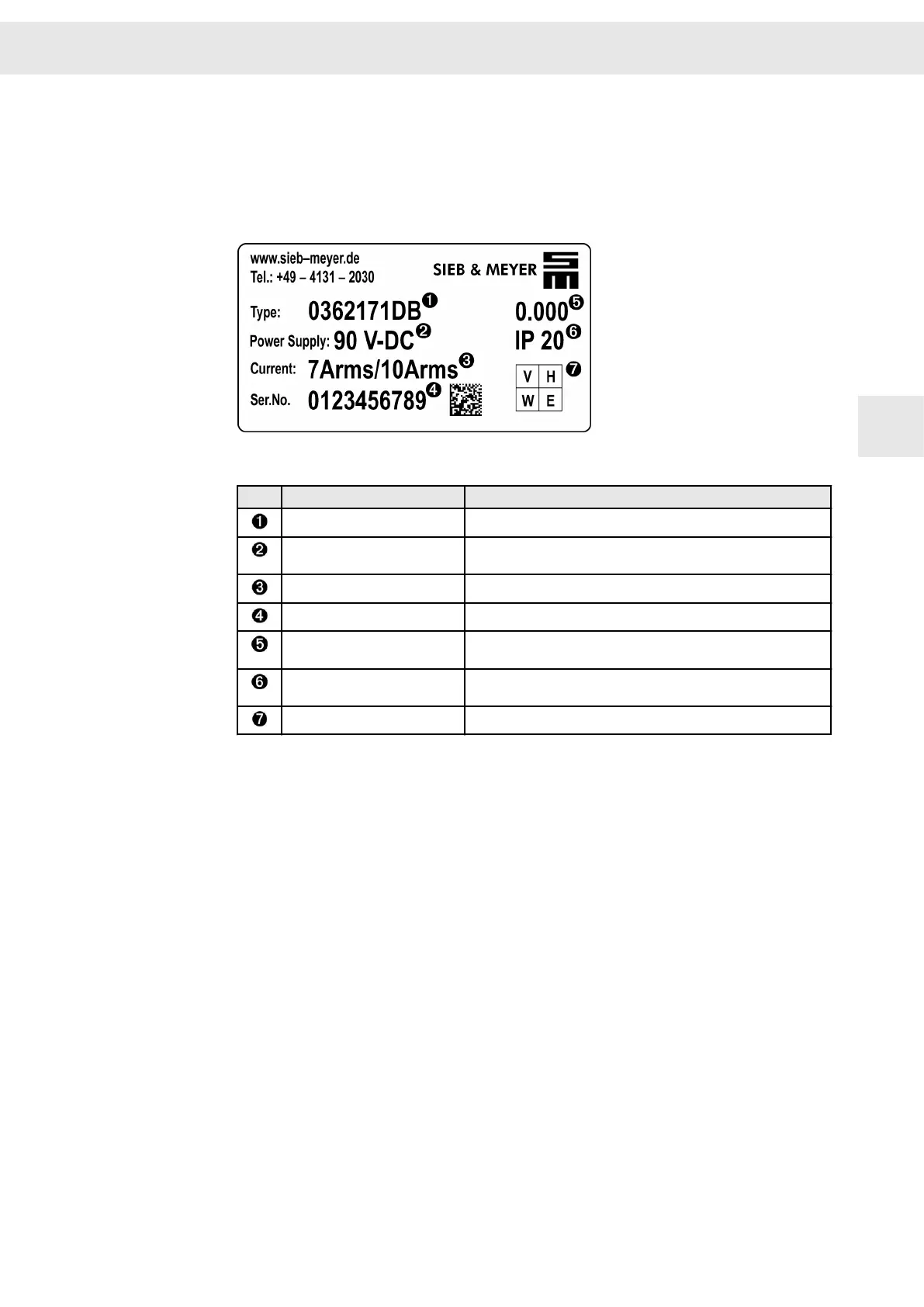

Fig. 1: Example of type plate (SD2B plus)
No. Meaning Explanation
Device designation Composed of module type and performance range as letter code
Supply voltage Indicates the maximum voltage range (if this row is left blank, an
external power supply unit is necessary)
Rated current/peak current Applies to the output stage; indicated as RMS value
Serial number Indicates the individual number of the device
Device version Indicates the version of the hardware; if no version is existent,
0.000 is indicated here
IP Code Indicates the level of protection of the device against touching or
intrusion of solid objects (1st digit) and water ingress (2nd digit)
QA label
W
Drive Amplifier SD2B / SD2B plus
Drive Amplifier SD2B / SD2B plus - Hardware Description 23
