7.2 Dimensions/Mounting

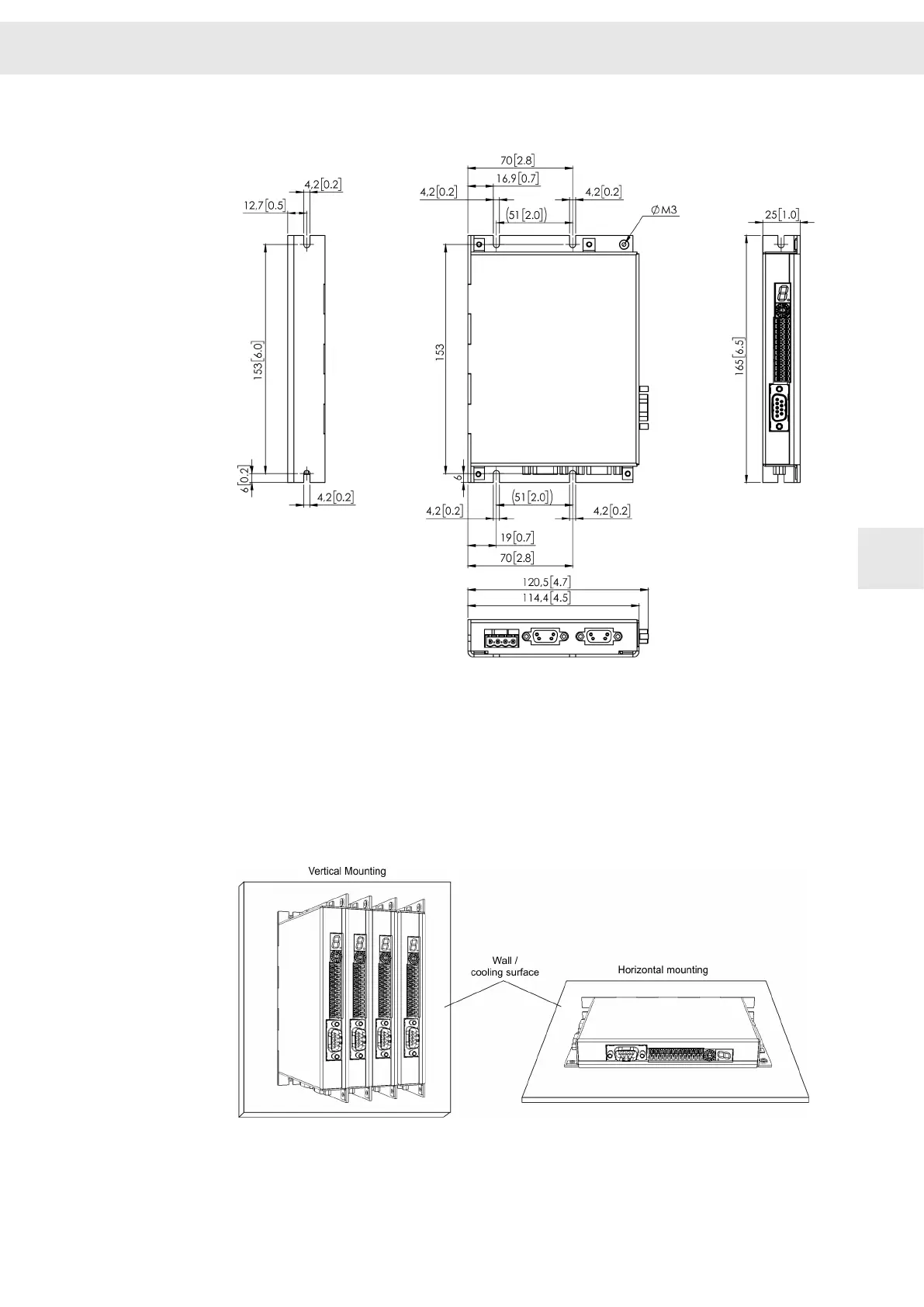

Fig. 8: Dimensions SD2B plus in mm [inch]
Mounting Instructions
▶ The device is mounted horizontally or vertically to a mounting wall. The mounting
surface is used for cooling.
▶ The mounting surface must be able to dissipate a heat output of 25 W at a
housing temperature of 60 °C for each device.
▶ With vertical mounting several device can be mounted next to each other without
any space in-between.
Fig. 9: Mounting options
W
Device variant SD2B plus
Drive Amplifier SD2B / SD2B plus - Hardware Description 35
