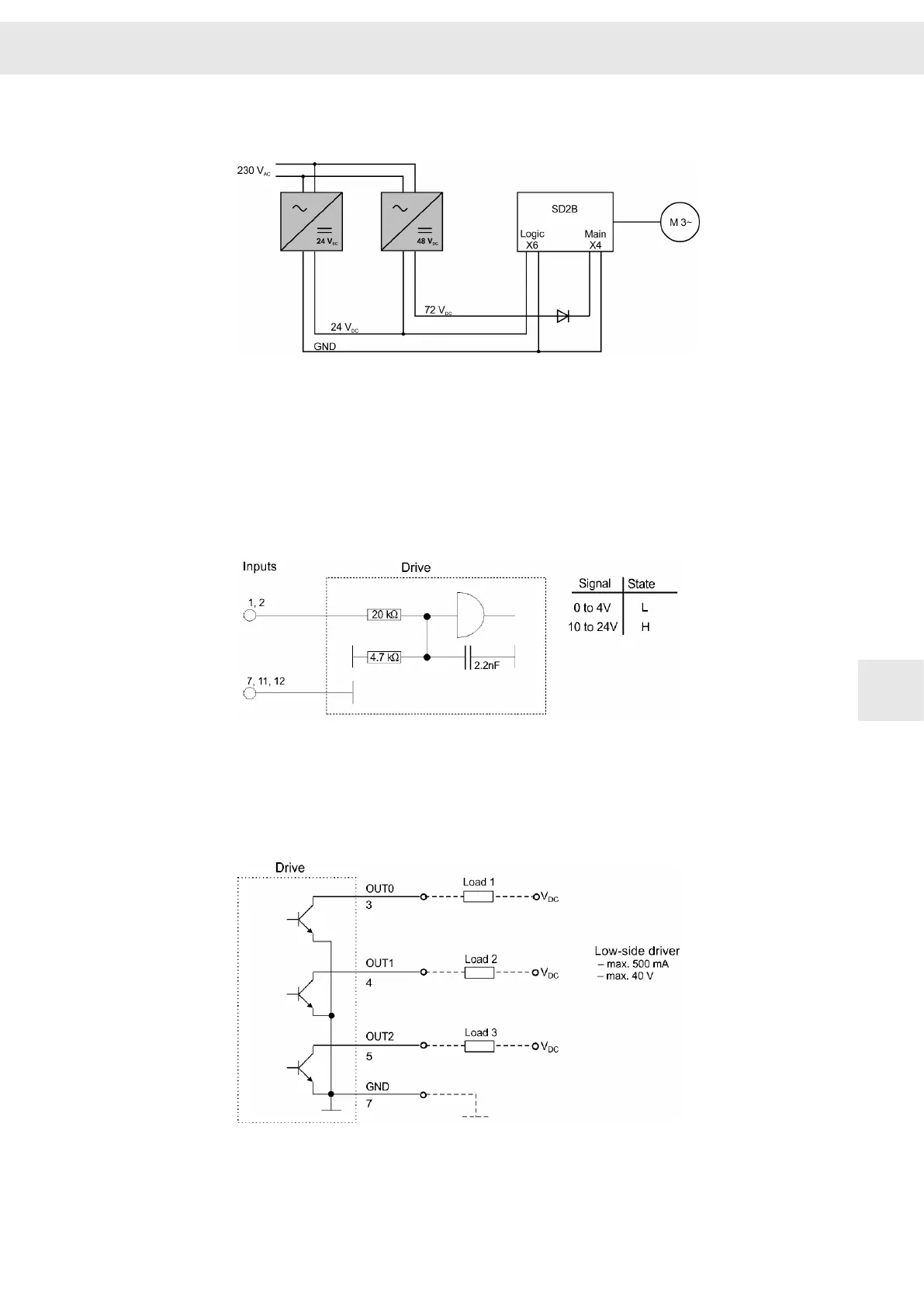

Setup 3: 24 V
DC
logic supply and 72 V
DC
main voltage supply (two power supply units
connected in series)
9.4 X9 – Inputs/Outputs
9.4.1 Digital Inputs
The meanings of the digital inputs can be defined by parameters.
9.4.2 Digital Outputs
The output driver can operate as low-side driver or as high-side driver. You can set the
desired driver type in the software drivemaster2 .
W
Connection Examples
Drive Amplifier SD2B / SD2B plus - Hardware Description 49
