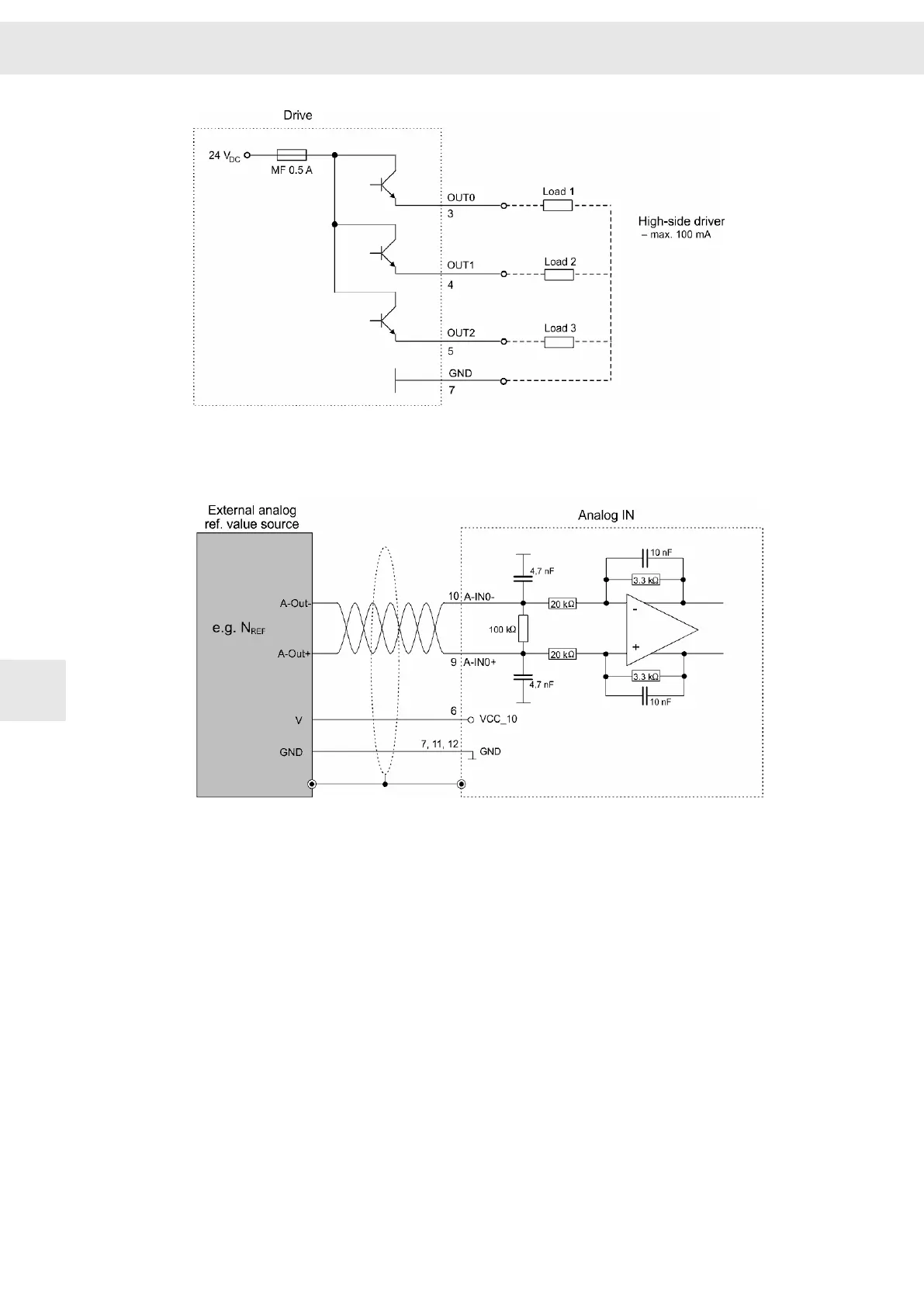

9.4.3 Analog Input
Voltage interface with input voltage range: ±10 V
Can also be connected to potentiometer (500 Ω – 5 kΩ)
9.5 X9/X14 – Temperature Sensor of the Motor
INPUT/OUTPUT: The thermal motor protection is evaluated via these connectors.
The drive amplifier supports evaluating the temperature monitoring integrated in the
motor. The NTC/PTC behavior of the monitoring is defined in the software (motor para‐
meters). The controller is deactivated as soon as the critical motor temperature is
reached.
You can configure “None”, “PTC / Thermo switch”, “NTC”, “KTY84/130”, “KTY83/122”
and “PT1000”.
Connection Examples
W
50 Drive Amplifier SD2B / SD2B plus - Hardware Description
9
