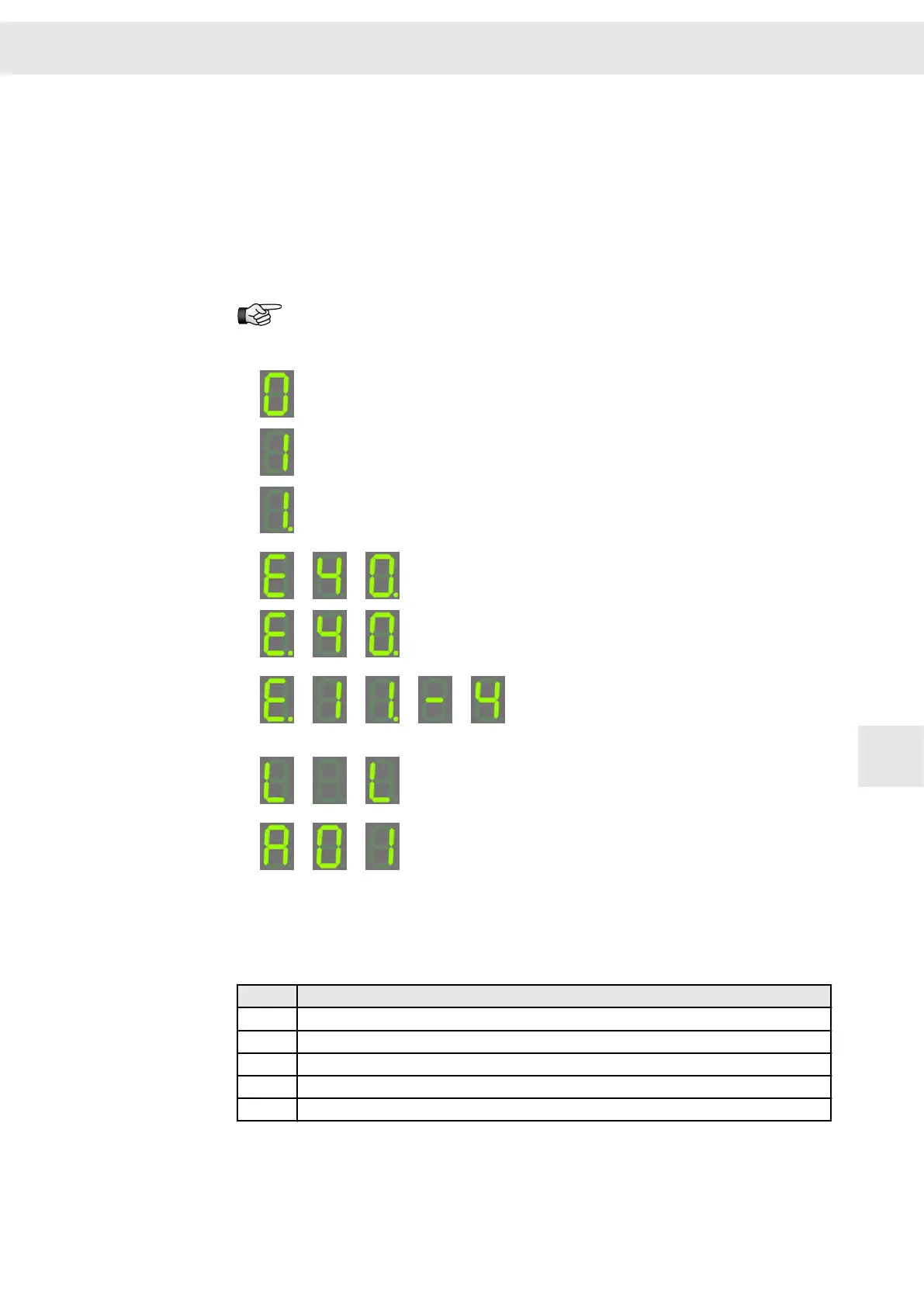

10 Status Display and Error Messages
The 7-segment display shows status and error messages.
A status message is made up of 1 to 5 digits and displayed as sequence. All messages
end with dot behind the last digit. When the first digit is 'E.', there is a permanent error.
If the cause of an error can be specified, the display indicates the actual error code
followed by a hyphen and a one-digit sub error code.
Devices with older firmware do not feature the sub error code.
Examples:
1. Permanent display 0
▶ Controller is switched off.
▶ No error.
2.
Permanent display 1
▶ Controller is switched on.
▶ No error.
3.
Permanent display 1.
▶ Controller is switched on.
▶ No error.
▶ Dot calls additional attention to PI limit.
4.
→ →
Sequential display
▶ Controller is switched off due to error E40.
▶ The error is not present anymore.
5.
→ →
Sequential display
▶ Controller is switched off due to error E40.
▶ The error is still present (indicated by the dot
behind 'E').
6.
→ → → →
Sequential display
▶ Controller is switched off due to error E11.
▶ The error is still present (indicated by the dot
behind 'E').
▶ Sub error code 4 is indicated as cause.
7.
→ →
Sequential display
▶ Controller is in boot loader mode: Display appears
short-time when the device is booted and when
the system software is loaded.
8.
→ →
Sequential display
▶ Drive address: During booting of the devices the
set address of the drive is displayed short-time
(here A01)
10.1 List of the Operating States
Code
Description
0 Ready to switch on
1 Controller active
1. Controller active, controller is limited / PI limit
2 Mains 'Ready for operation' not present yet
L Boot loader active (during boot / software load)
W
Status Display and Error Messages
Drive Amplifier SD2B / SD2B plus - Hardware Description 59
