9 Connection Examples
The following sections provide connection examples for the individual connectors of
the device.

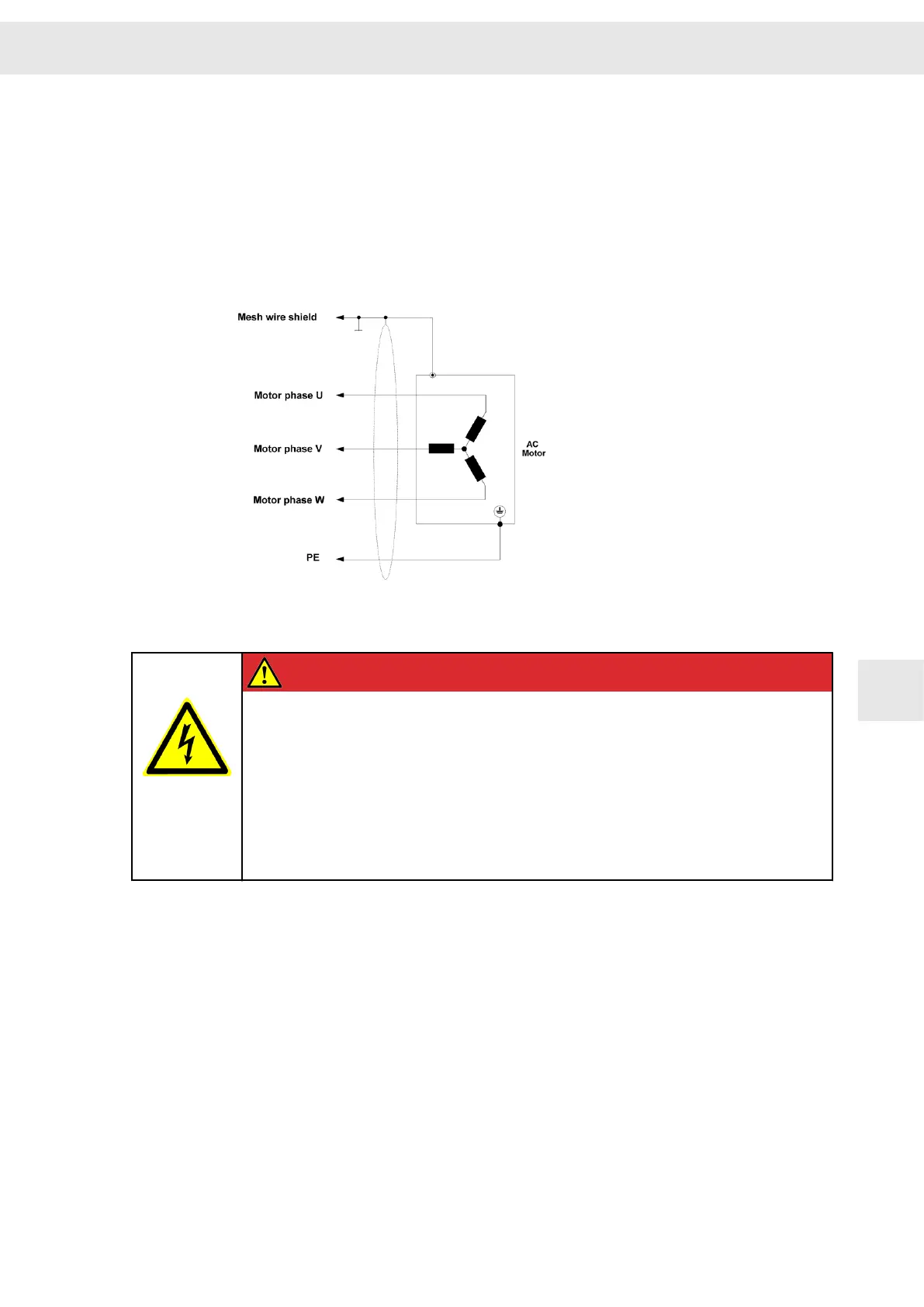

9.1 X2/X13 – Motor Phases
Ground the motor housing in the machine!
DANGER
Dangerous shock currents
Earthing and shielding measures are required to protect devices and persons. To
ensure the safety of the operator earthing must be carried out with low impedance.
With respect to the ground connection one of the following actions must be done:
▶ connect the motor housing to the ground of the machine or
▶ connect the ground terminal of the motor connector to the central ground point
of the machine.
Consider the following with regard to shielding: Always use shielded motor cables!
W
Connection Examples
Drive Amplifier SD2B / SD2B plus - Hardware Description 47
9
