SIEB & MEYER SD2B - Wiring Without OSSD; X15, X16 - Incremental Encoder with TTL Signals

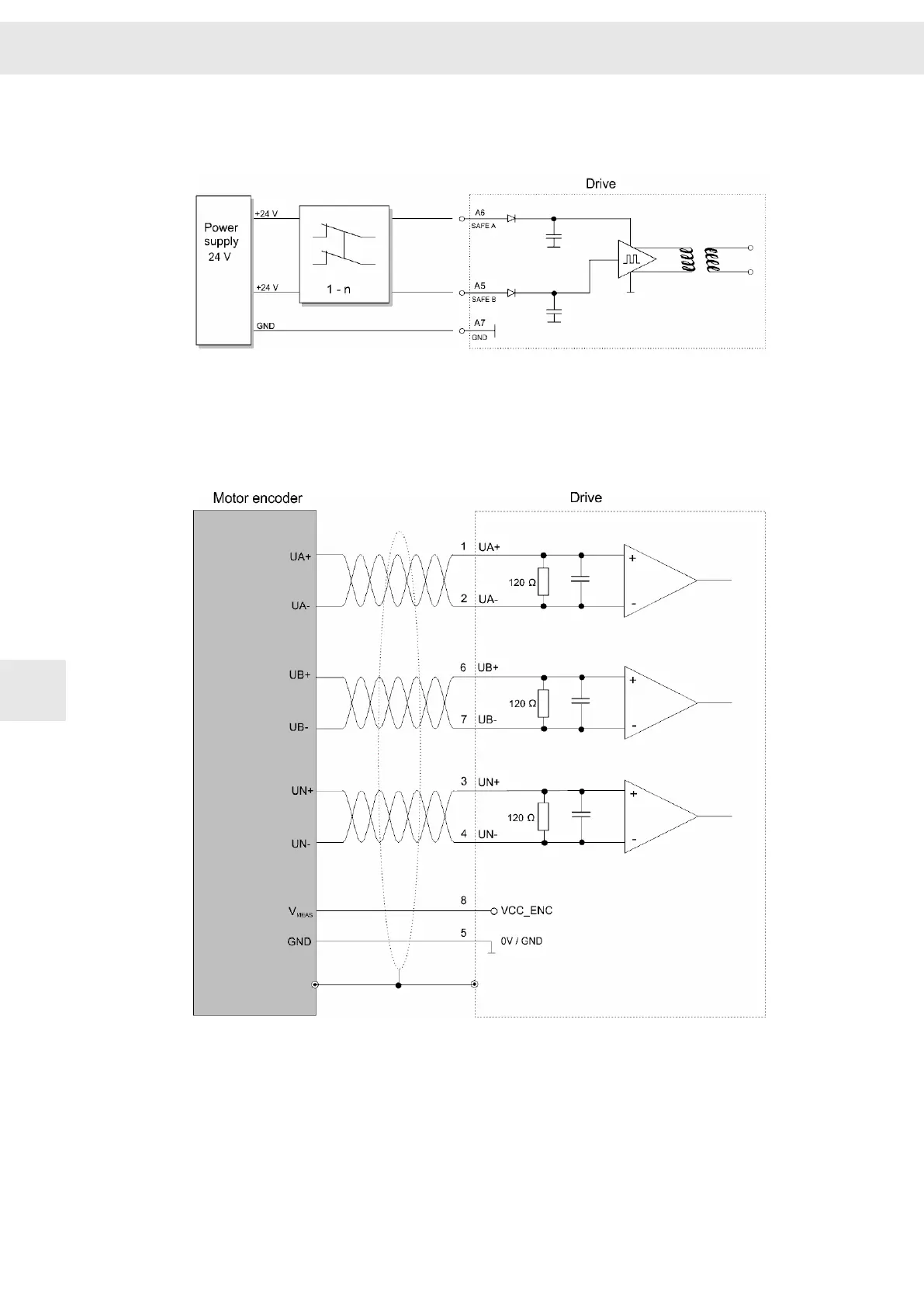

9.8.4.2 Wiring without OSSD
OSSD = Output Signal Switching Device
9.9 X15, X16 – Incremental Encoder with TTL
Signals
Encoder signals: 5V
Connection Examples
W
56 Drive Amplifier SD2B / SD2B plus - Hardware Description
9
