SIEB & MEYER SD2B - X4;X6 - DC Power Supply Unit

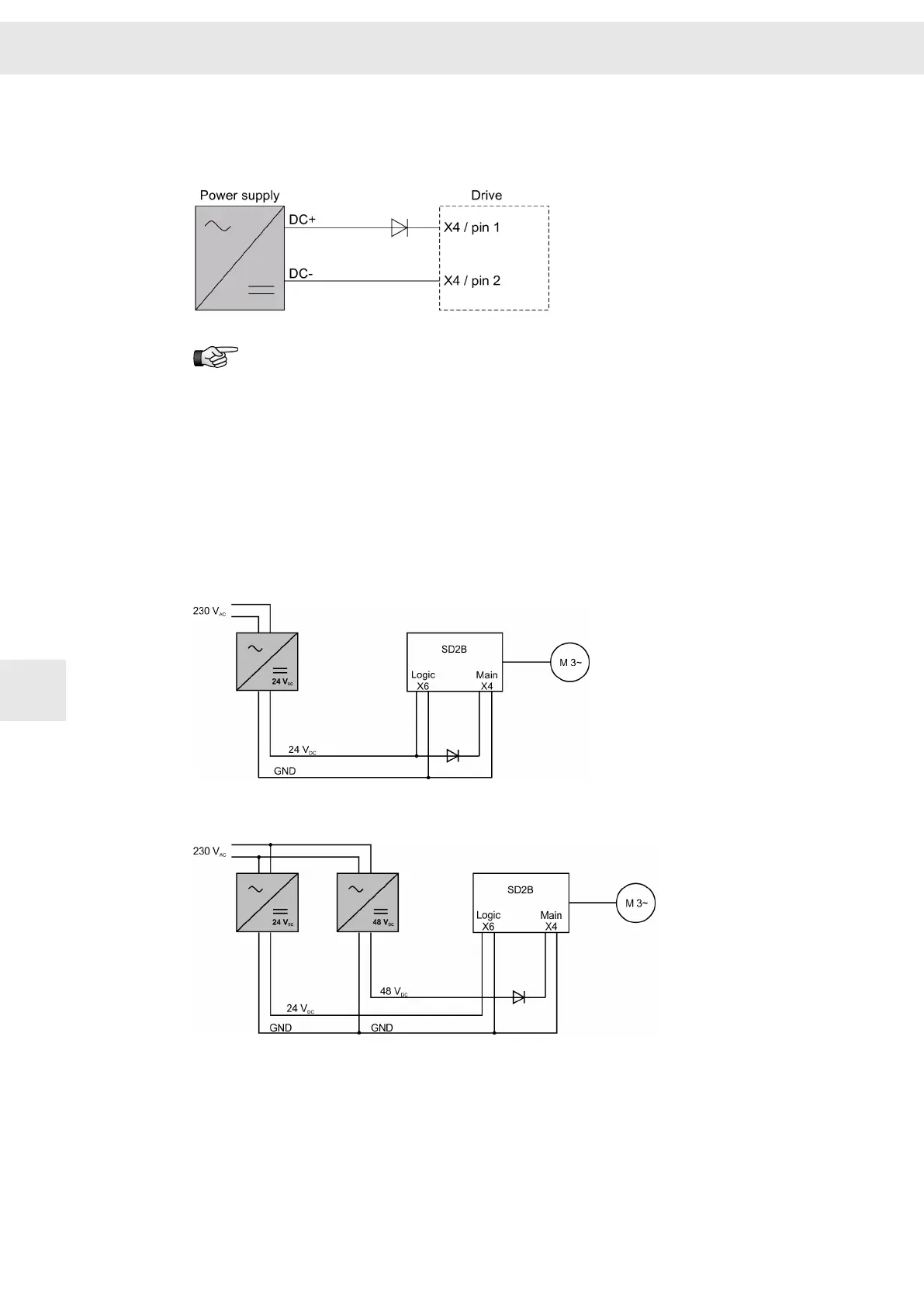

9.2 X4 – Decoupling of the Main Voltage
Decoupling of the main voltage by means of a blocking diode:
You can order the appropriate blocking diode module at SIEB & MEYER
(article No. 036210082). For a description of the module and more connec‐
tion examples refer to the technical information “TIE_036210082_Blocking‐
Diode_SD2B.pdf”.
9.3 X4/X6 – DC Power Supply Unit
The following examples show different options for the connection of the power supply
unit to SD2B for main and logic supply.
Setup 1: 24 V
DC
logic and main voltage supply (one power supply unit)
Setup 2: 24 V
DC
logic supply and 48 V
DC
main voltage supply (two power supply units)
Connection Examples
W
48 Drive Amplifier SD2B / SD2B plus - Hardware Description
9
