Always place the modules on conductive and grounded surfaces.
Always pack, store and transport electronic modules or components in conductive
packaging, such as:
Metallized plastic or metal containers
Conductive foam material
Domestic aluminum foil

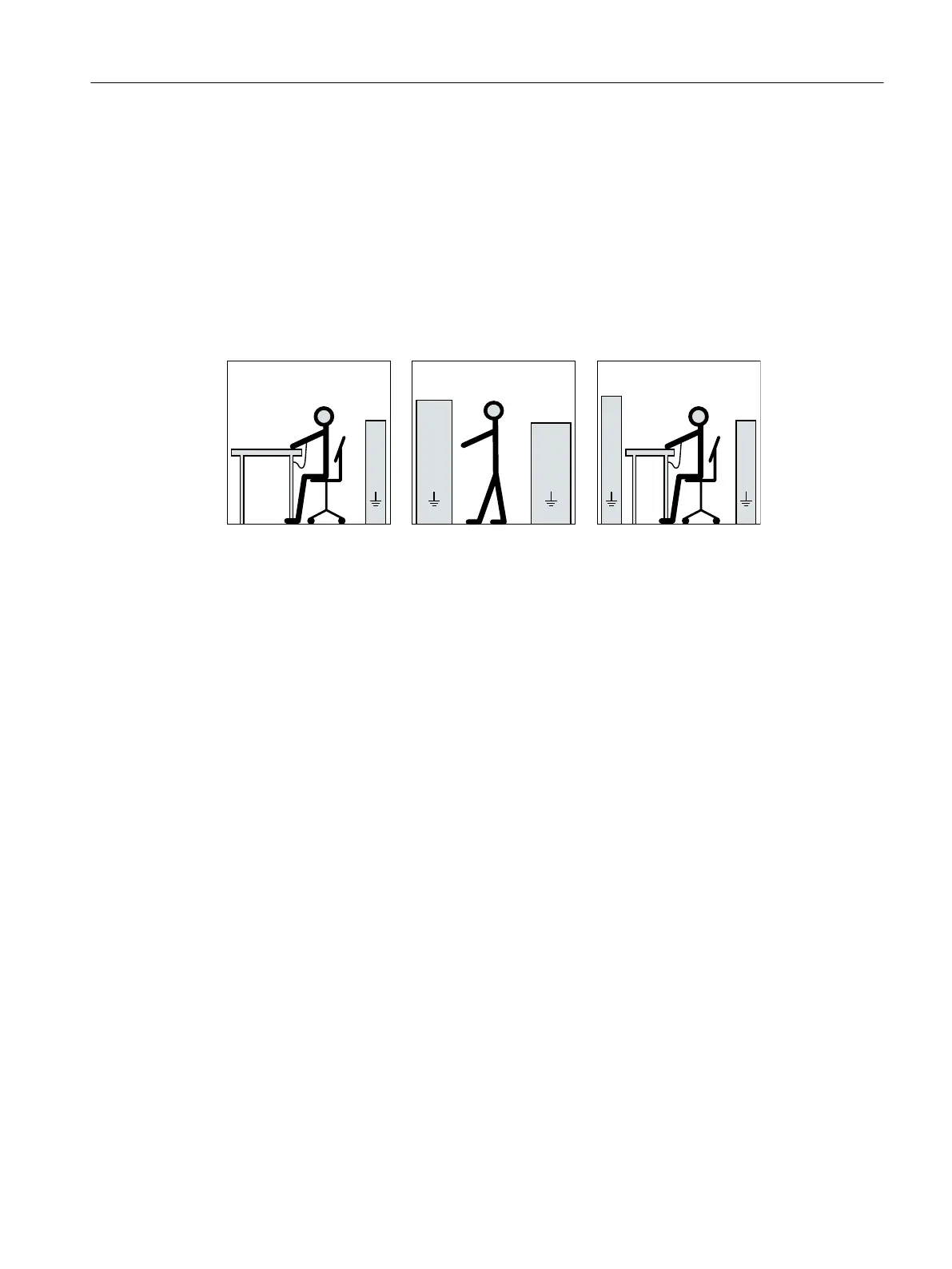

The ESD protective measures required for components that can be destroyed due to
electrostatic discharge are shown in the following drawings:
6HDWLQJSRVLWLRQ
6WDQGLQJSRVLWLRQ
6WDQGLQJVHDWLQJSRVLWLRQ
EE
D
F
D
IIIII
D
FF
H
GG
H
G
a = conductive 󹪞oor sur‐
face
b = ESD table c = ESD shoes
d = ESD overall e = ESD wristband f = cabinet ground connection
2.1.7 Electromagnetic compatibility
Electromagnetic compatibility
This machine is designed in accordance with IEC/EN60034, and when used as speci󹪝ed it
satis󹪝es the requirements of European Directive 2014/30/EU on Electromagnetic Compatibility.
2.1.8 Interference immunity
By selecting suitable signal cables and evaluation units, ensure that the interference immunity
of the machine is not diminished.
2.1.9 In󹪞uence on the line power supply through a strongly irregular torque
A strongly irregular torque, for example with the drive of a reciprocating motor, forces a non-
sinusoidal motor current. The emerging harmonics can have an impermissible in󹪞uence on the
line power supply via the connection lines.
Safety information
2.1General safety instructions
1LE1, 1FP1/3, 1PC1/3 shaft height 63 ... 315
Operating Instructions, 11/2023, A5E38483075A 19
