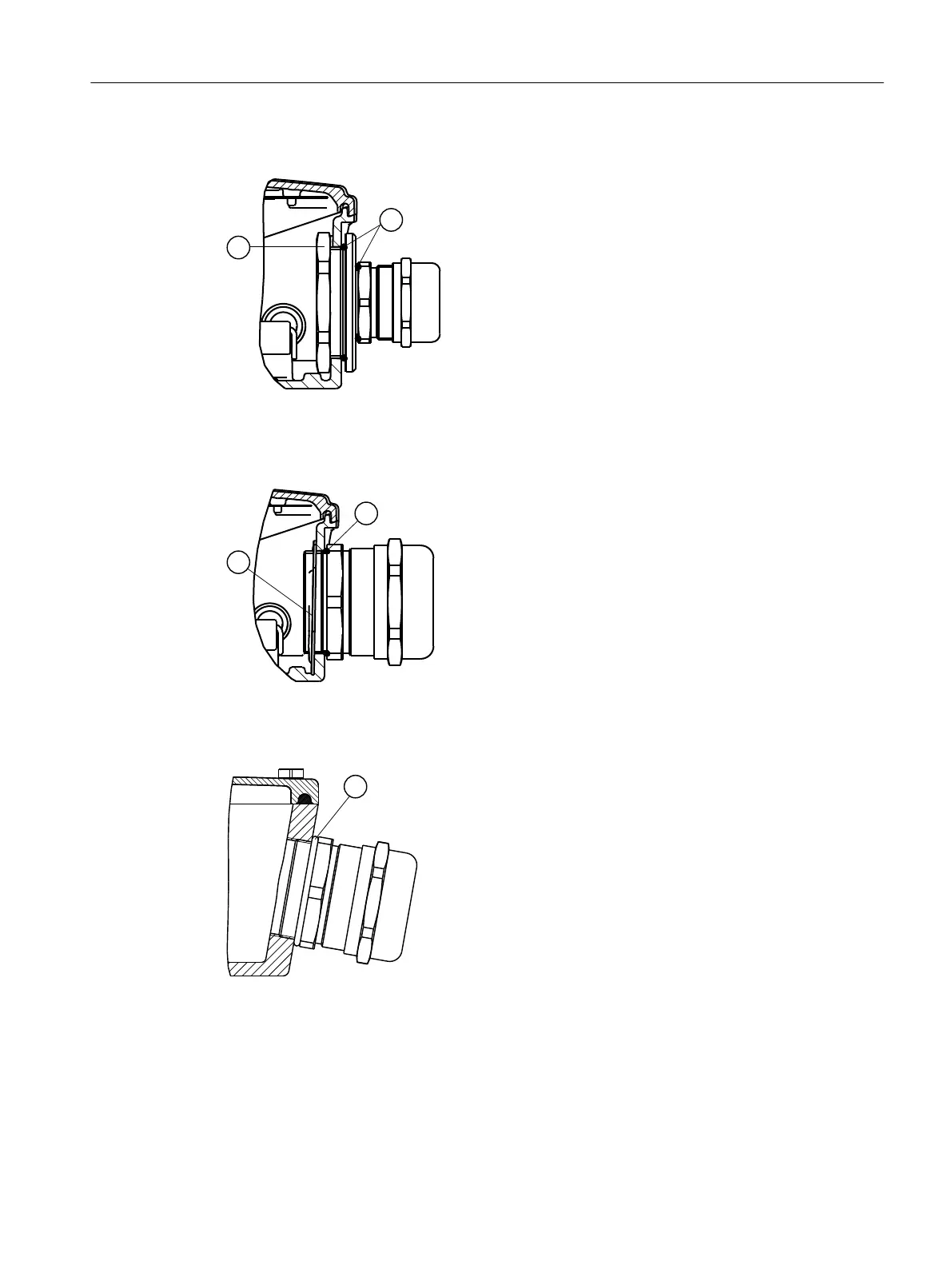

Cable glands with reductions and (sheet metal) nuts (EN 50262)
①
②
Nut
O ring
6.2.3.1 Mounting position of sheet metal nuts in screw-type connections
②
③
O ring
Mounting position of metal-sheet
nuts
Cable glands with connecting thread in the terminal box (EN 50262)
② O ring
6.3 Tightening torques
Note the information in Chapter Tightening torques (Page133).
Electrical connection
6.3Tightening torques
1LE1, 1FP1/3, 1PC1/3 shaft height 63 ... 315
Operating Instructions, 11/2023, A5E38483075A 69
