6.5 Connection, temperature sensor/anti-condensation heating
WARNING
Hazard due to electric shock
The installation of the temperature sensors for the winding monitoring with respect to the
winding is implemented according to the requirements for basic insulation. The temperature
sensor connections are located in terminal boxes that are safe to touch and have no protective
separation. This is the reason that in the case of a fault, a hazardous voltage can be present at
the measuring sensor cable. When touched, this can result in death, severe bodily injury and
material damage.
• When connecting the temperature sensor to external temperature monitoring devices,
when required, apply additional measures to fully comply with the requirements set out in
IEC60664-1 or IEC61800-5-1 "Hazard due to electric shock".
6.5.1 Connecting optional integrated devices and equipment
In addition to the current-dependent overload protective device located in the connecting
cables, use the optionally available integrated devices and equipment, for example,
temperature sensors, anti-condensation heating.
Depending on the terminal box version, connect the auxiliary circuits to the terminal box.

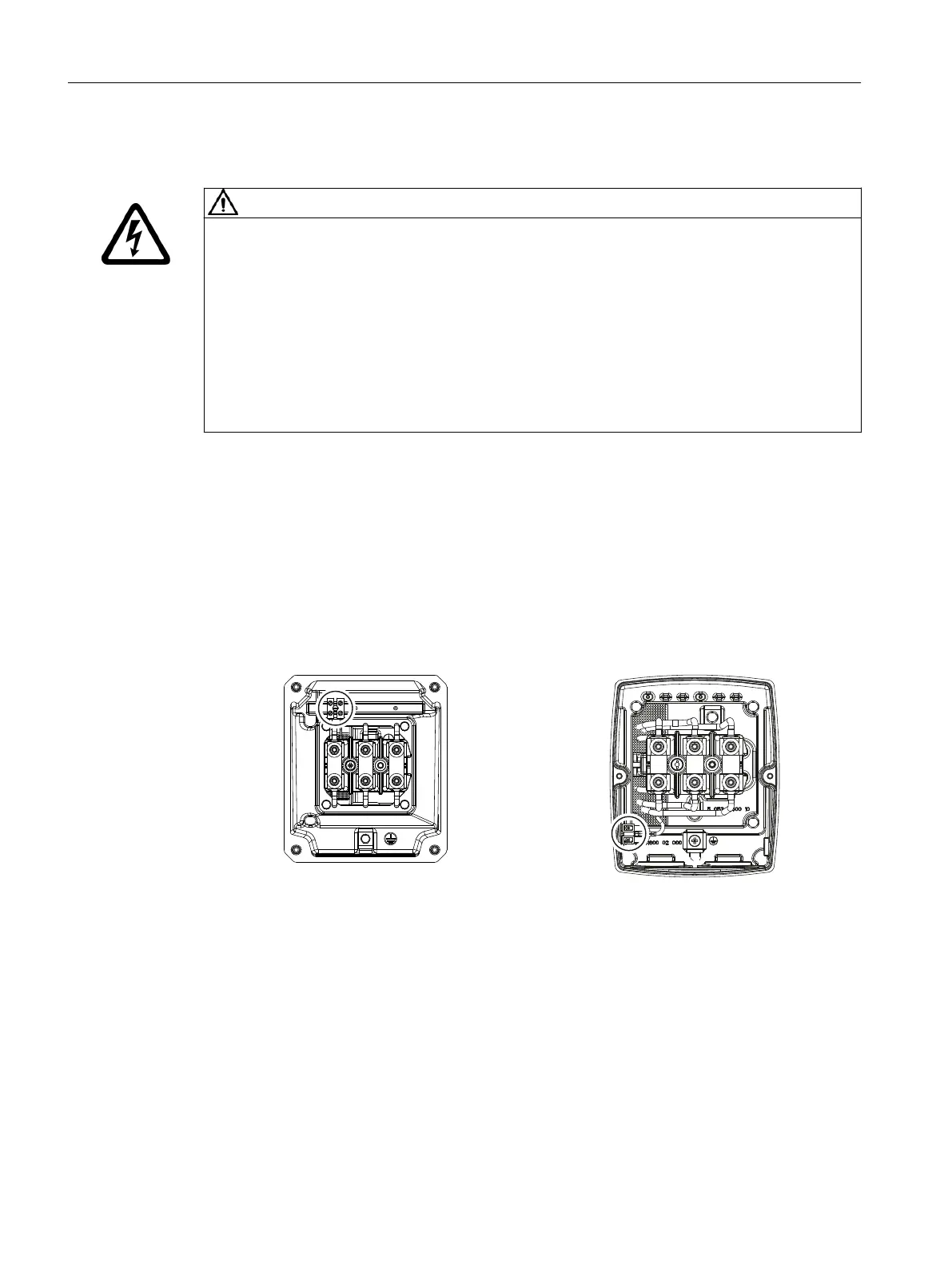

Terminal block connection
6.6 Conductor connection
Cross-sections that can be connected depending on the size of the terminal (possibly reduced
due to size of cable entries)
Electrical connection
6.6Conductor connection
1LE1, 1FP1/3, 1PC1/3 shaft height 63 ... 315
72 Operating Instructions, 11/2023, A5E38483075A
