Siemens 1FP1/3 - Type of Conductor Connection

Table 6-4 Max. conductor connection
Shaft height Max. connectable conductor cross-section
[mm²]
63 ... 90 1.5
2.5 with cable lug
100 ... 112 4.0
132 6.0
160 ... 180 16.0
200 25.0
225 35.0 with cable lug
250 ... 280 120.0
315 240.0

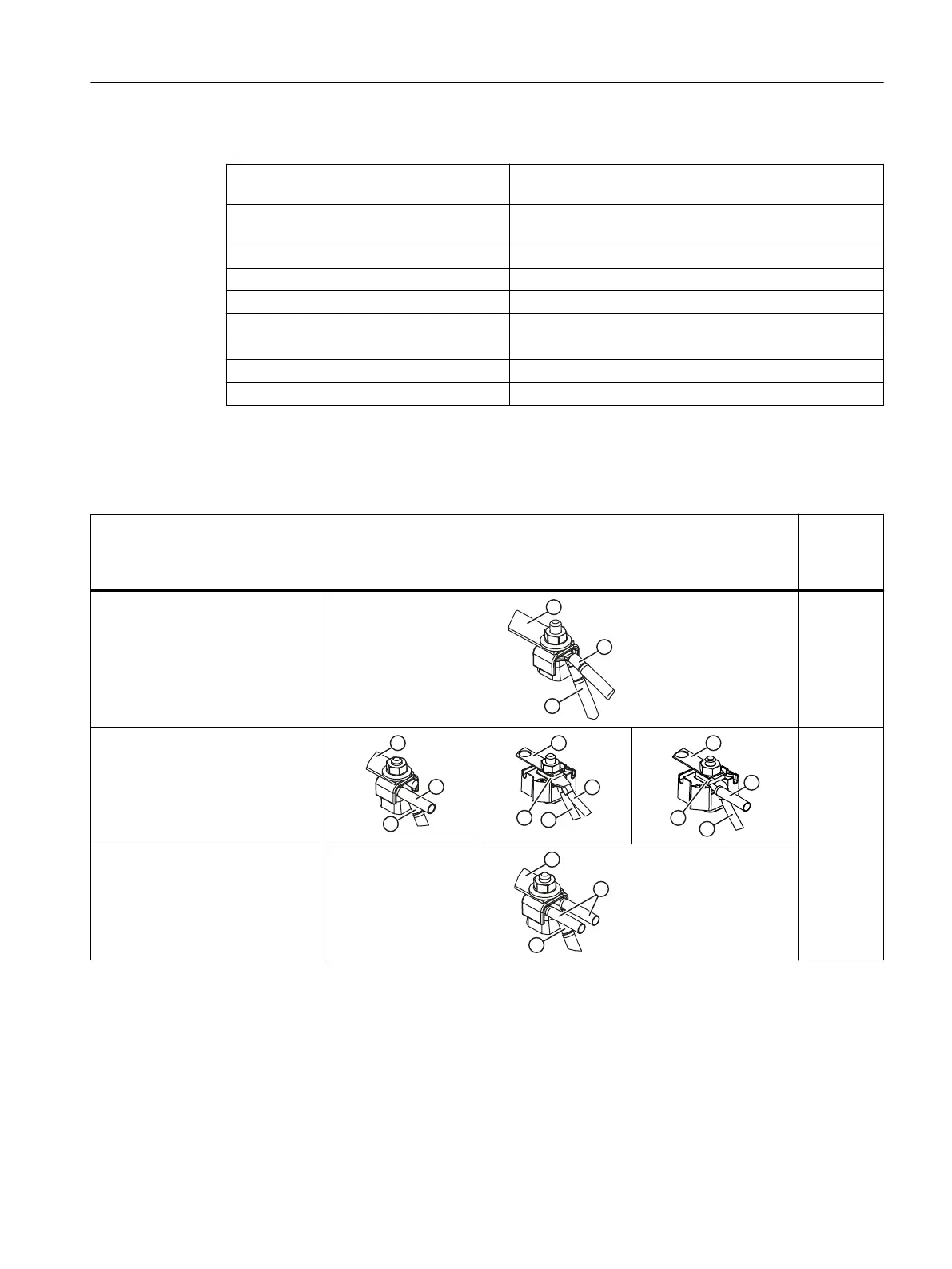

6.6.1 Type of conductor connection
Terminal board Conductor
cross-
section
[mm²]
Connection with cable lug
DIN 46 234
Bend down the cable lug for the
connection.





...25
Connection of an individual conduc‐
tor with terminal clamp













...10
Connection of two conductors of
approximately the same thickness
with terminal clamp





...25
① Connecting bar
② Line supply cable
③ Motor connecting cable
④ Cover plate
Electrical connection
6.6Conductor connection
1LE1, 1FP1/3, 1PC1/3 shaft height 63 ... 315
Operating Instructions, 11/2023, A5E38483075A 73
