Alternative rotor bracing

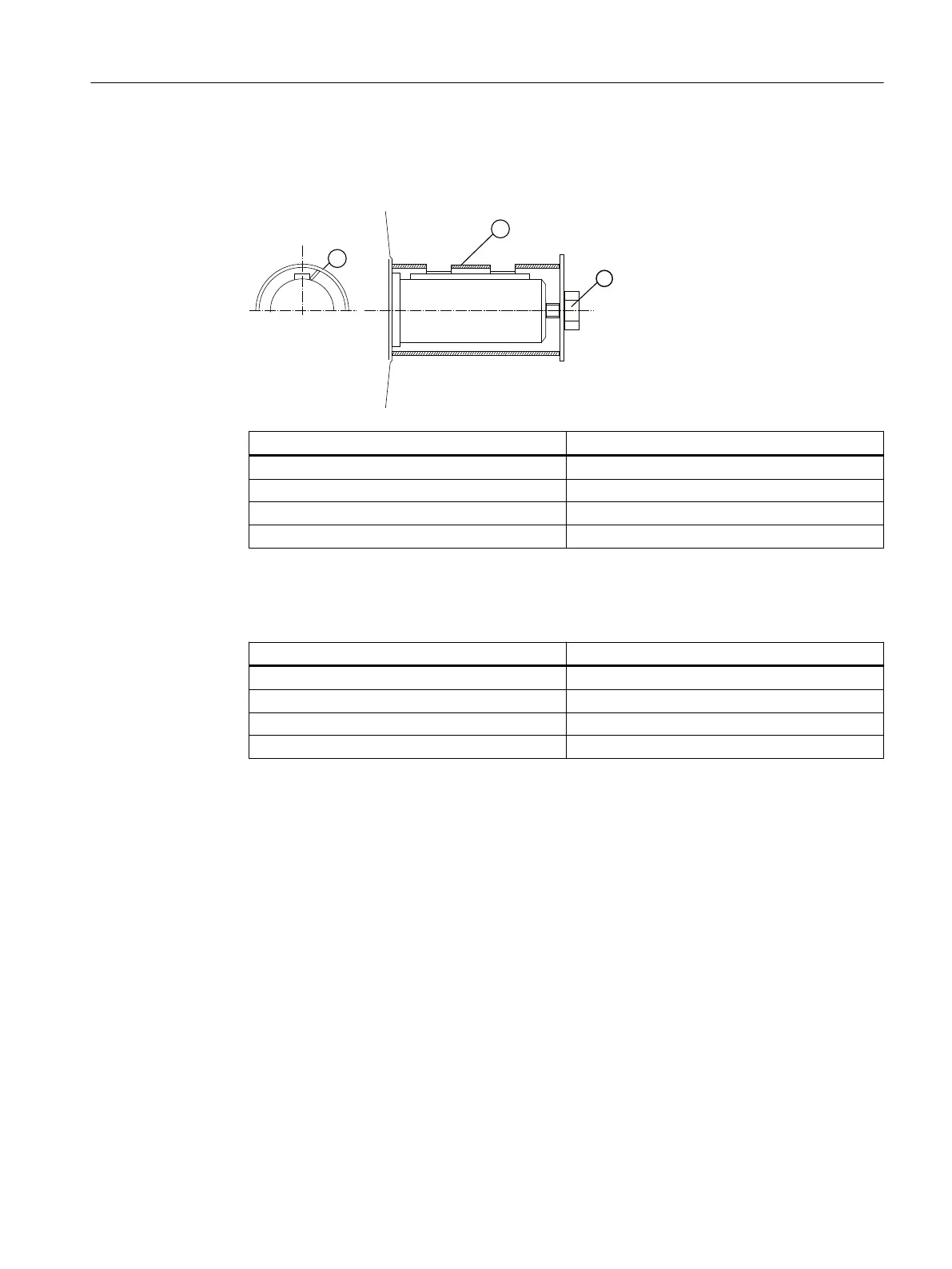

• If you transport the machine after the output element has been pulled on, then you must
axially 󹪝x the rotor in another way.



Thread in the shaft extension Tightening torque
M16 40Nm
M20 80Nm
M24 150Nm
M30 230Nm
Tightening torques for other rotor shipping brace types
• The thread in the shaft extension indicates the rotor weight. This indirectly speci󹪝es the
required preload force when axially fastening the rotor.
Thread in the shaft extension Preload
M16 13kN
M20 20kN
M24 30kN
M30 40kN
Axial preload force for other rotor shipping brace types
Storing the rotor locking device
Store the rotor locking device in a safe place. It must be remounted if the machine is removed
and shipped on further.
Preparing for use
4.5Transport and storage
1LE1, 1FP1/3, 1PC1/3 shaft height 63 ... 315
Operating Instructions, 11/2023, A5E38483075A 37
