Function
Status
Symbol
Comments
PID autotuning Active
Hibernation Active
Write protection Active Parameters cannot be changed.
Know-how
protection
Active
ESM Active Essential services mode (fire control)

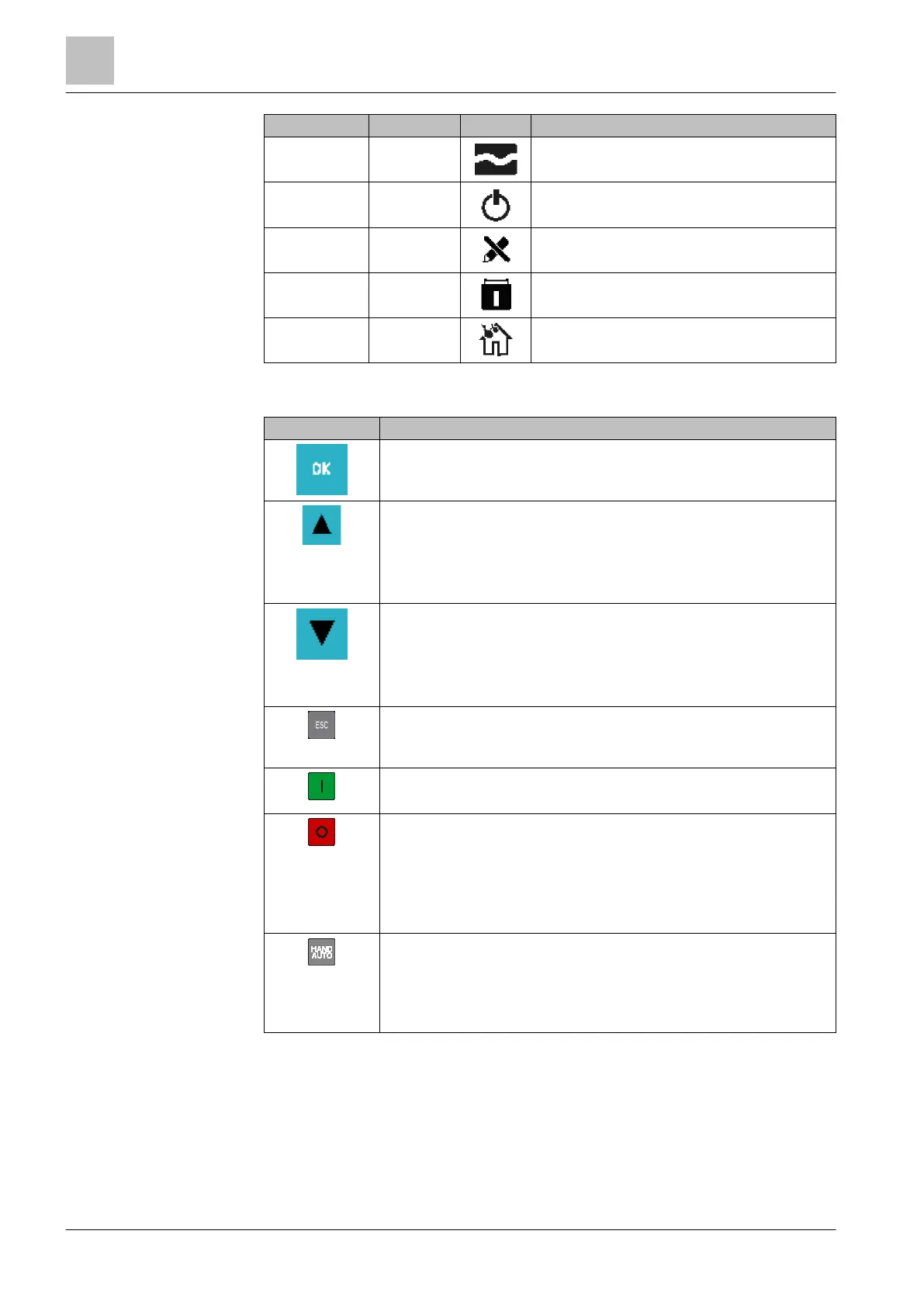

Table 4: IOP-2 screen symbols
Button
Function
● Pressing the button: Confirm selection
● Pressing and holding down the button (> 3 s): Toggle between changing
individual digits and changing the whole value
● Pressing the button:
– Scroll up through the menu
– Increase a parameter value
● Pressing the UP and DOWN buttons simultaneously when MANUAL and
JOG mode are activated: Switch the reverse function on and off
● Pressing the button:
– Scroll down through the menu
– Reduce a parameter value
● Pressing the UP and DOWN buttons simultaneously when MANUAL and
JOG mode are activated: Switch the reverse function on and off
● Pressing briefly: return to the previous display
● Pressing and holding down the button (> 3 s): The BOP-2 returns to the
status screen
● In AUTO mode: no function
● In MANUAL mode: pressing starts the variable speed drive
● In AUTO mode: no function
● In MANUAL mode:
– Pressing briefly: OFF1 - the motor comes to a standstill along the set
down ramp (parameter P1121)
– Pressing and holding down the button (> 3 s) or pressing it briefly twice:
the motor coasts to a standstill
● Pressing the button: Toggle between external command sources and the
BOP-2 as command source.
– MANUAL means: manual control using the BOP-2 buttons
– AUTO means: the variable speed drive responds to external control
commands (e.g. fieldbus or terminals)
Table 5: BOP-2 operator controls
BOP-2 - operator controls
