administrat
ion.fm
A31003-S20
10-M100-18-7
6A9
OpenStage HFA Famil
y, Administrat
ion Manual
3-113
Administration
Diagnostics

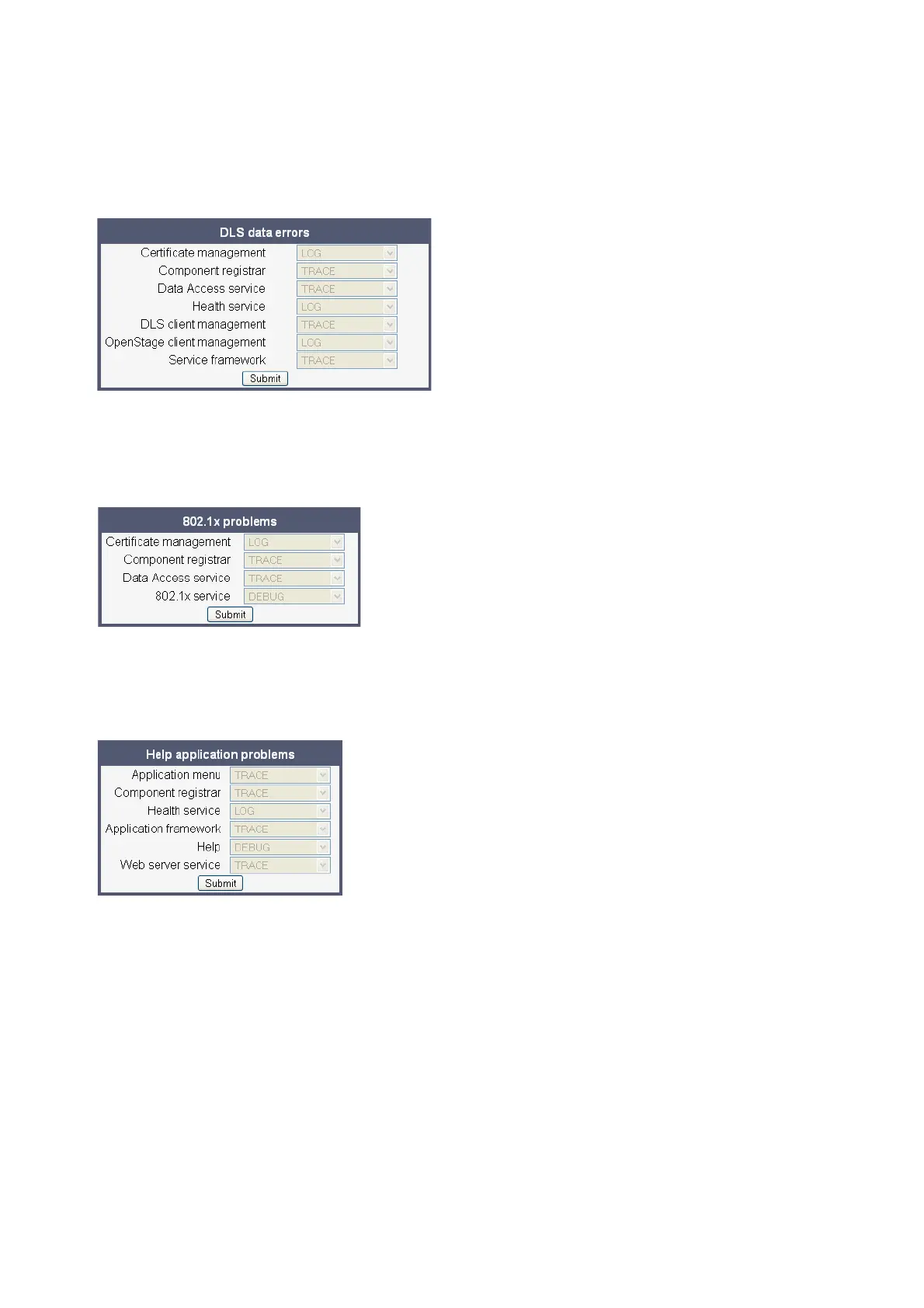

3.20.3.8
DLS Data Err
ors
Diagnostics
>
Easy T
race Profiles > DLS data errors
3.20.3.9
802.1x
Diagnostics
>
Easy T
race Profiles > 802.1x problems
3.20.3.10
Help Application
Diagnostics
>
Easy T
race Profiles > Help application problems
156
158
Table of Contents
Default Chapter
3
Table of Contents
3
A31003-S2010-M100-18-76A9 Openstage HFA Family, Administration Manual
8
1 Overview
9
Important Notes
9
Maintenance Notes
10
About the Manual
10
Conventions for this Document
10
A31003-S2010-M100-18-76A9 Openstage HFA Family, Administration Manual
10
The Openstage Family
11
Openstage 40
12
A31003-S2010-M100-18-76A9 Openstage HFA Family, Administration Manual
12
Openstage 20
13
Openstage 15
14
Administration Interfaces
15
Web-Based Management (WBM)
15
Deployment Service (DLS)
15
Local Phone Menu
15
2 Startup
17
Prerequisites
17
Assembling and Installing the Phone
18
Shipment
18
Connectors at the Bottom Side
18
Assembly
20
Connecting the Phone
21
Key Module
23
Quick Start
24
Access the Web Interface (WBM)
25
Basic Network Configuration
25
Extended Network Configuration
26
VLAN Discovery
26
Using a Vendor Class
26
Using Option #43 "Vendor Specific
32
DLS Server Address
34
Using Vendor Class
34
Using Option #43 "Vendor Specific
41
HFA Gateway Settings
43
Using the Web Interface (WBM)
43
Using the Local Menu
43
3 Administration
45
Access Via Local Phone
45
LAN Settings
49
LAN Port Settings
49
Vlan
51
Automatic VLAN Discovery Using DHCP
52
Automatic VLAN Discovery Using LLDP-MED (V2)
54
Manual Configuration of a VLAN ID
56
IP Network Parameters
57
Quality of Service (Qos)
57
Layer 2 / 802.1P
57
Layer 3 / Diffserv
58
Use DHCP
60
IP Address - Manual Configuration
62
Default Route/Gateway
63
Specific IP Routing
64
Dns
65
DNS Domain Name
65
DNS Servers
66
Terminal Hostname (V2)
67
Configuration & Update Service (DLS)
68
Snmp
69
Hipath Service Menu
72
System Settings
73
System Identity
73
HFA Gateway Settings
73
HFA Emergency Gateway Settings
75
Server and Standby Server Ports
76
Redundancy
77
Emergency Number
79
Lin
79
Not Used Timeout
81
Energy Saving (Openstage 40/60/80)
82
Date and Time
83
SNTP Is Available, but no Automatic Configuration by DHCP Server
83
Security
85
Dialing
87
Canonical Dialing Configuration
87
Canonical Dial Lookup
91
Mobility (Openstage 60/80, V1R3 Onwards)
93
Platform Specific Behaviour
94
Transferring Phone Software, Application and Media Files
95
FTP/HTTPS Server
95
Common FTP Settings
95
Phone Software
97
FTP/HTTPS Access Data
97
Download/Update Phone Software
99
Picture Clips
100
FTP/HTTPS Access Data
100
Download Picture Clip
102
LDAP Template
103
FTP/HTTPS Access Data
103
Download LDAP Template
105
Logo
106
FTP/HTTPS Access Data
106
Download Logo
108
Screensaver
109
FTP/HTTPS Access Data
109
Download Screensaver
111
Ringer File
112
FTP/HTTPS Access Data
113
Download Ringer File
115
HPT Dongle Key
116
FTP/HTTPS Access Data
116
Download Dongle Key File
118
Corporate Phonebook: Directory Settings
119
Ldap
119
Picture Via LDAP (Starting with Hipath 4000 V6)
121
Softgate V6"Settings for Central Access to Subscriber Pictures
122
Local Phone Configuration
122
Phone Canonical Settings
124
Speech
125
RTP Base Port
125
Codec Preferences
126
Display General Phone Information
128
Applications (V2 on Openstage 60/80)
129
XML Applications/Xpressions
129
Setup/Configuration
129
HTTP Proxy
134
Modify an Existing Application
136
Remove an Existing Application
137
Password
138
Troubleshooting: Lost Password
139
Restart Phone
140
Factory Reset
141
SSH - Secure Shell Access (V2)
142
Display License Information
143
HPT Interface (for Service Staff)
144
Diagnostics
145
Lldp-Med (V2)
145
Fault Trace Configuration
147
Easy Trace Profiles
154
No Tracing for All Services
154
Bluetooth Handsfree
155
Bluetooth Headset
155
Call Connection
155
Call Log
156
LDAP Phonebook
156
DAS Connection
156
DLS Data Errors
157
Help Application
157
Sidecar
158
Key Input
158
LAN Connectivity
158
Local Phonebook
158
Messaging
159
Mobility
159
Phone Administration
159
Server Based Applications
160
Speech
160
Tone
160
USB Backup/Restore
160
Voice Dialling
161
Web Based Management (Openstage 15/20/40)
161
Web Based Management (Openstage 60/80)
161
Qos Reports
162
Ping
165
Memory Status Information
166
Core Dump
169
Remote Tracing - Syslog (V2)
170
Bluetooth
171
4 Examples and Howtos
173
Canonical Dialing
173
Canonical Dialing Settings
173
Canonical Dial Lookup
174
Conversion Examples
175
How to Create Logo Files for Openstage Phones
177
For Openstage 40
177
For Openstage 60/80
178
How to Set up the Corporate Phonebook (LDAP)
181
Prerequisites
181
Create an LDAP Template
182
Load the LDAP Template into the Phone
185
Configure LDAP Access
186
Test
186
5 Technical Reference
189
Menus
189
Web Interface Menu
189
Menu Structure
189
Web
192
Local Phone Menu
218
Troubleshooting: Error Messages
225
Glossary
229
Index
237
