OpenStage HFA Family, Administration Manual
3-15
Administration
IP Network Parameters
Three drop levels Y are reserved for AFXY: AFX1 (low drop probability), AFX2 and AFX3 (High
drop probability). In the case of low drop level, packets are buffered over an extended period in
the case of high drop level, packets are promptly rejected if they cannot be forwarded.Data
required
• Layer 3: Activates or deactivates QoS on layer 3.
Value range: "Yes", "No".
Default: "Yes".
• Layer 3 voice: Sets the CoS (Class of Service) value for voice data (RTP streams).
Value range:"AF11", "AF12", "AF13", "AF21", "AF22", "AF23", "AF31", "AF32", "AF33",
"AF41", "AF42", "AF43", "EF", "CS7", "CS3", "CS4", "CS5"
Default: "EF"
• Layer 3 signalling: Sets the CoS (Class of Service) value for signaling.
Value range: "AF11", "AF12", "AF13", "AF21", "AF22", "AF23", "AF31", "AF32", "AF33",
"AF41", "AF42", "AF43", "EF", "CS7", "CS3", "CS4", "CS5"
Default: "AF31"

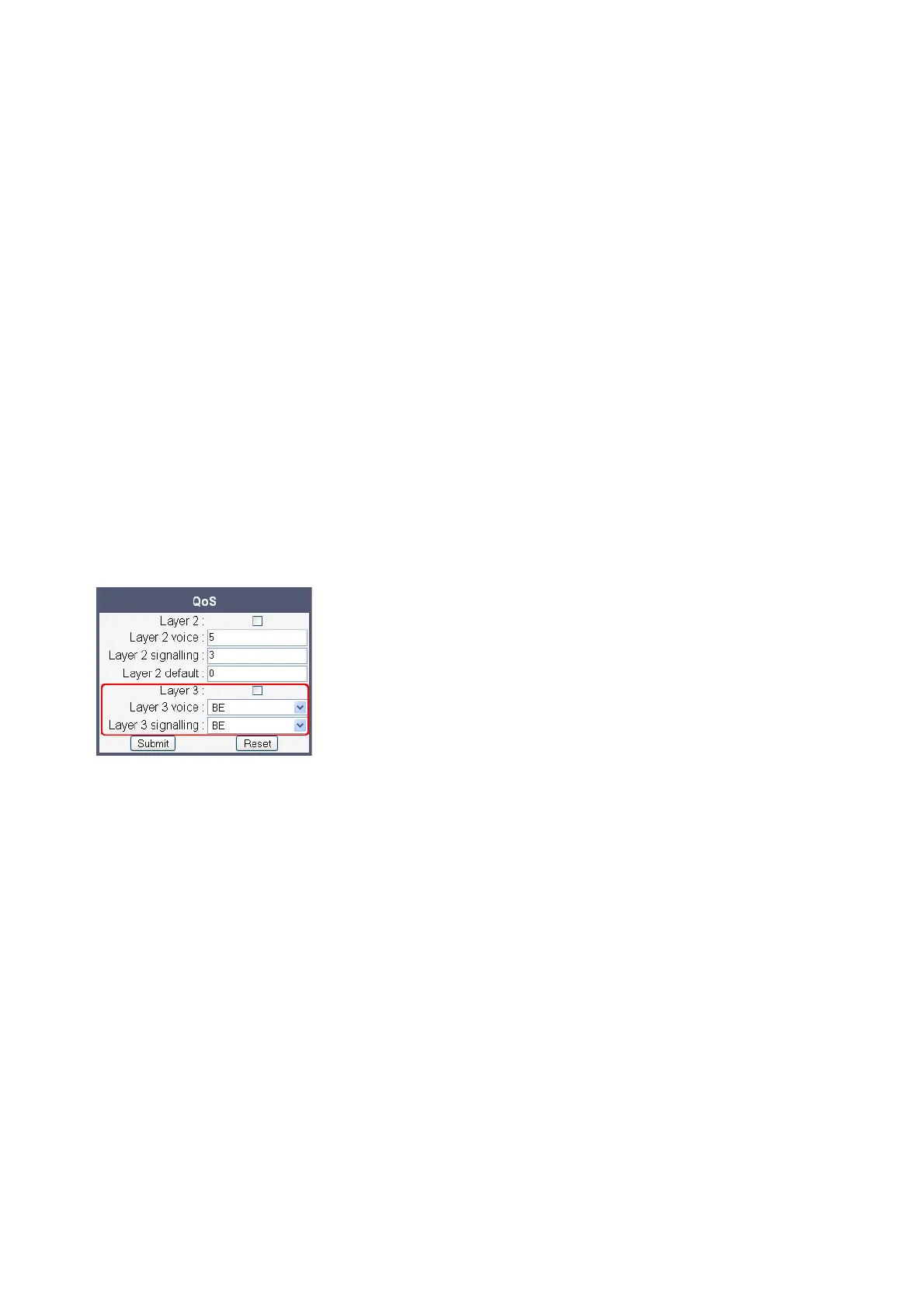

Administration via WBM
Network > QoS
Administration via Local Phone
|
--- Admin
|
--- Network
|
--- QoS
|
--- Service
|--- Layer 3
|--- Layer 3 voice
|
--- Layer 3 signalling
