Siemens MCP 398C Equipment Manual

9.3.4 Connection
9.3.4.1 Interface overview
3RZHUVXSSO\
3RZHUVXSSO\
7HUPLQDOVWULSFRQYHUWHU
5LEERQFDEOH
&RQQHFWLRQFDEOHPD[LPXPb
P);'&
'LJLWDO,2
$QDORJ,2
3RUWVDQG
33'$31
9'&
352),1(7;
;
;
;
;
;
1&8[%31
33'31
33'$31
0&3&&31

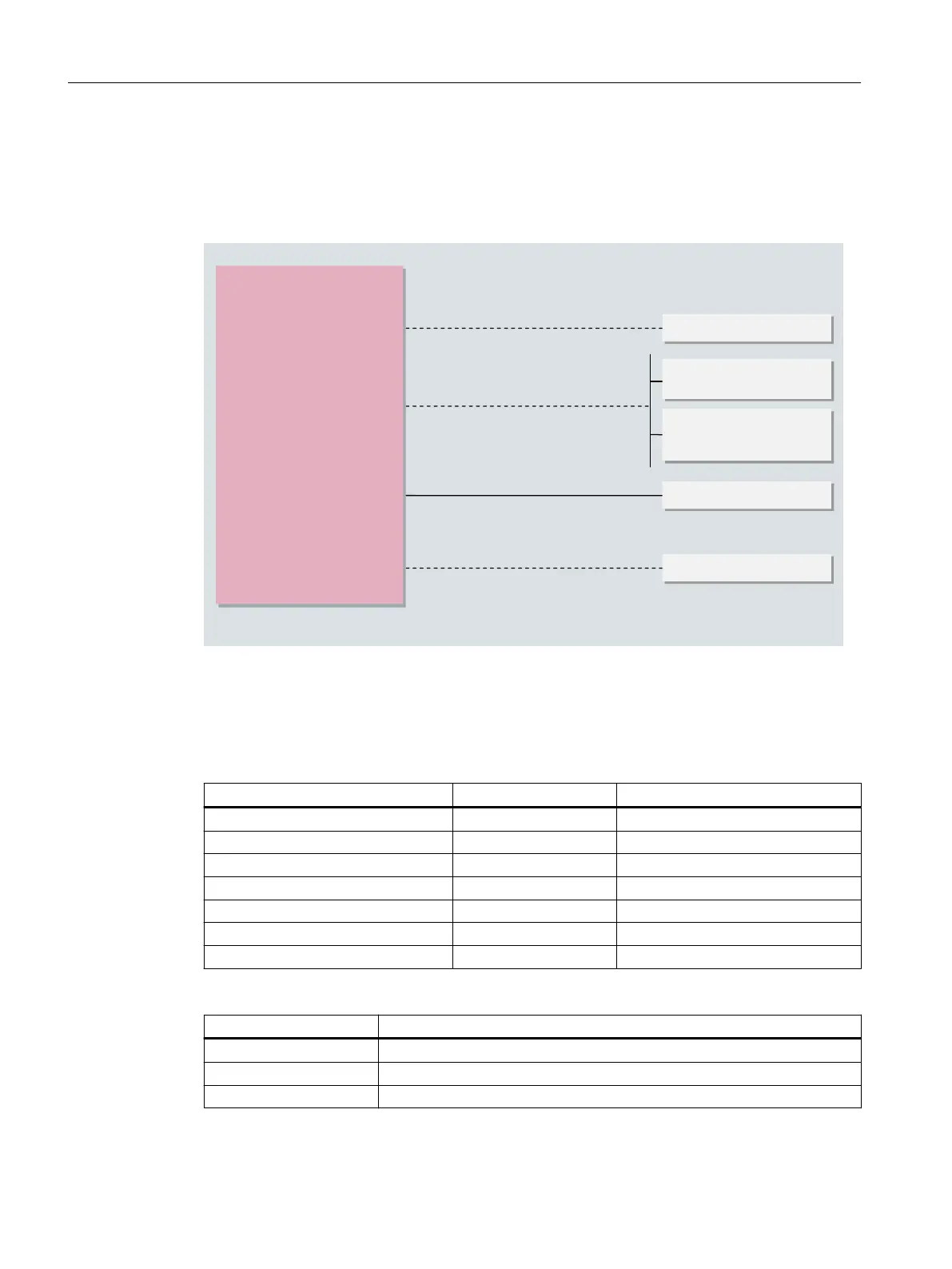

Figure 9-16 Connection options of the PP 72/48D 2/2A PN I/O module
Interface overview
Table 9-33 Interfaces of the PP 72/48D 2/2A PN I/O module
Interface Designation Type
Power supply connection X1 Screw-terminal block
PROFINET IO X2 (ports 1 and 2) Socket
Analog inputs/outputs X3 Terminal block
PROFINET address S1 DIP switch
Digital input/outputs 1 X111 Ribbon cable connector
Digital input/outputs 2 X222 Ribbon cable connector
Digital input/outputs 3 X333 Ribbon cable connector
The following abbreviations are used:
Signal type Meaning
I Input
O Output
B Bidirectional
Connectable components
9.3 PP 72/48D 2/2A PN
NCU 7x0.3B PN
122 Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1
