9.4 COM01.3 RS 232C (V.24) module
9.4.1 Description
The COM01.3 RS 232C (V. 24) option board can be inserted into the option slot of the NCU.
An NCU can be connected to a master computer or modem via COM port X491. The COM port
has been designed in accordance with the "ANSI/EIA/TIA-232-F-1997" standard.
Note
The option board COM01.3 RS 232C (V.24) module cannot be used for the NCU730.3B PN with
PLC 319 DP/PN.
Illustration
2SHUDWLQJVWDWH/('+
&20SRUW;
5HWDLQLQJVFUHZV

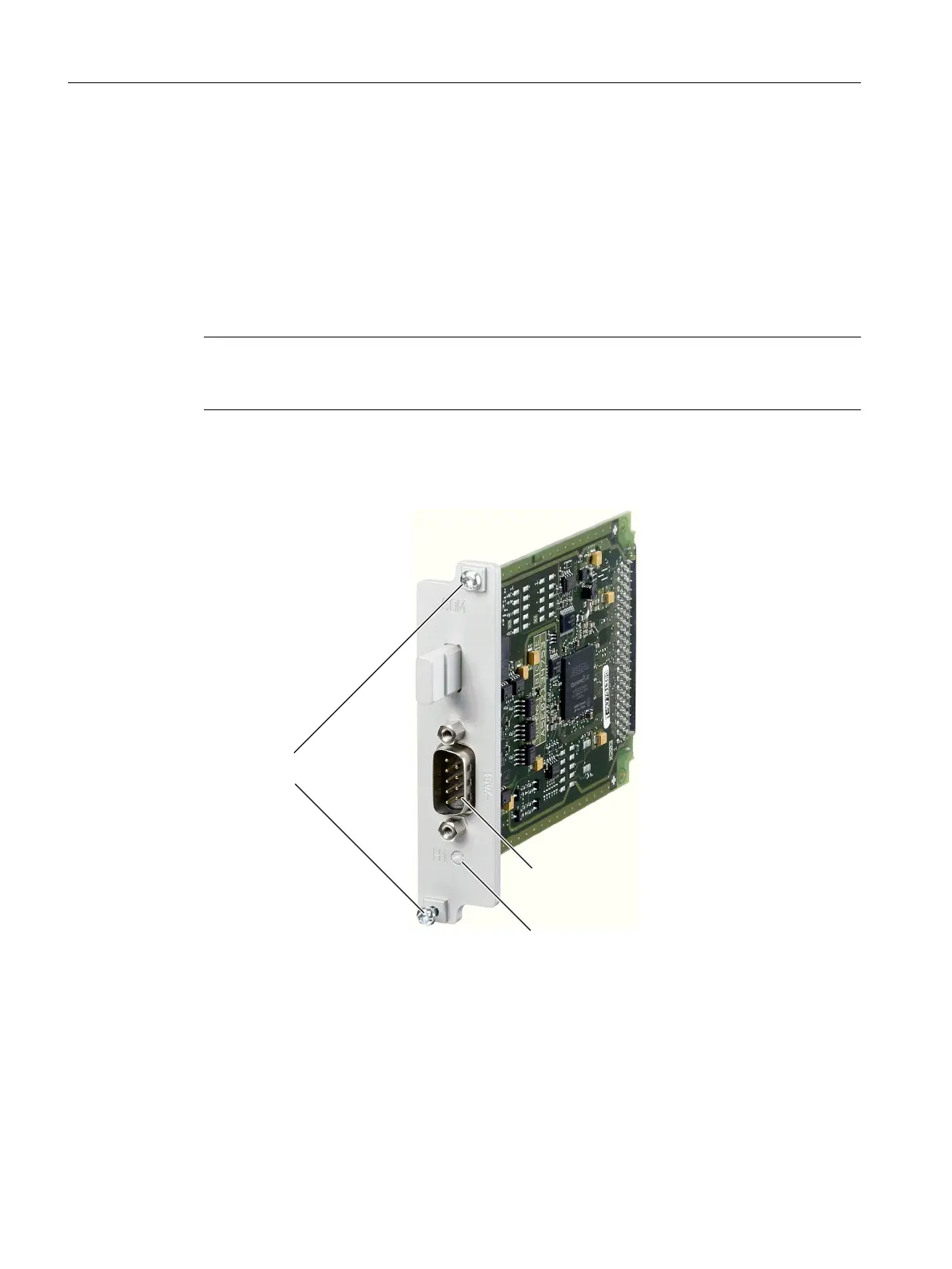

Figure 9-20 COM01.3 RS 232C (V.24) module
Connectable components
9.4 COM01.3 RS 232C (V.24) module
NCU 7x0.3B PN
146 Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1
