Spare Parts/Accessories
10
10.1 Replacing the dual fan/ battery module
Procedure
Proceed as follows to replace the dual fan/battery module but only observe points 3 and 4 if you
want to replace the battery as well:

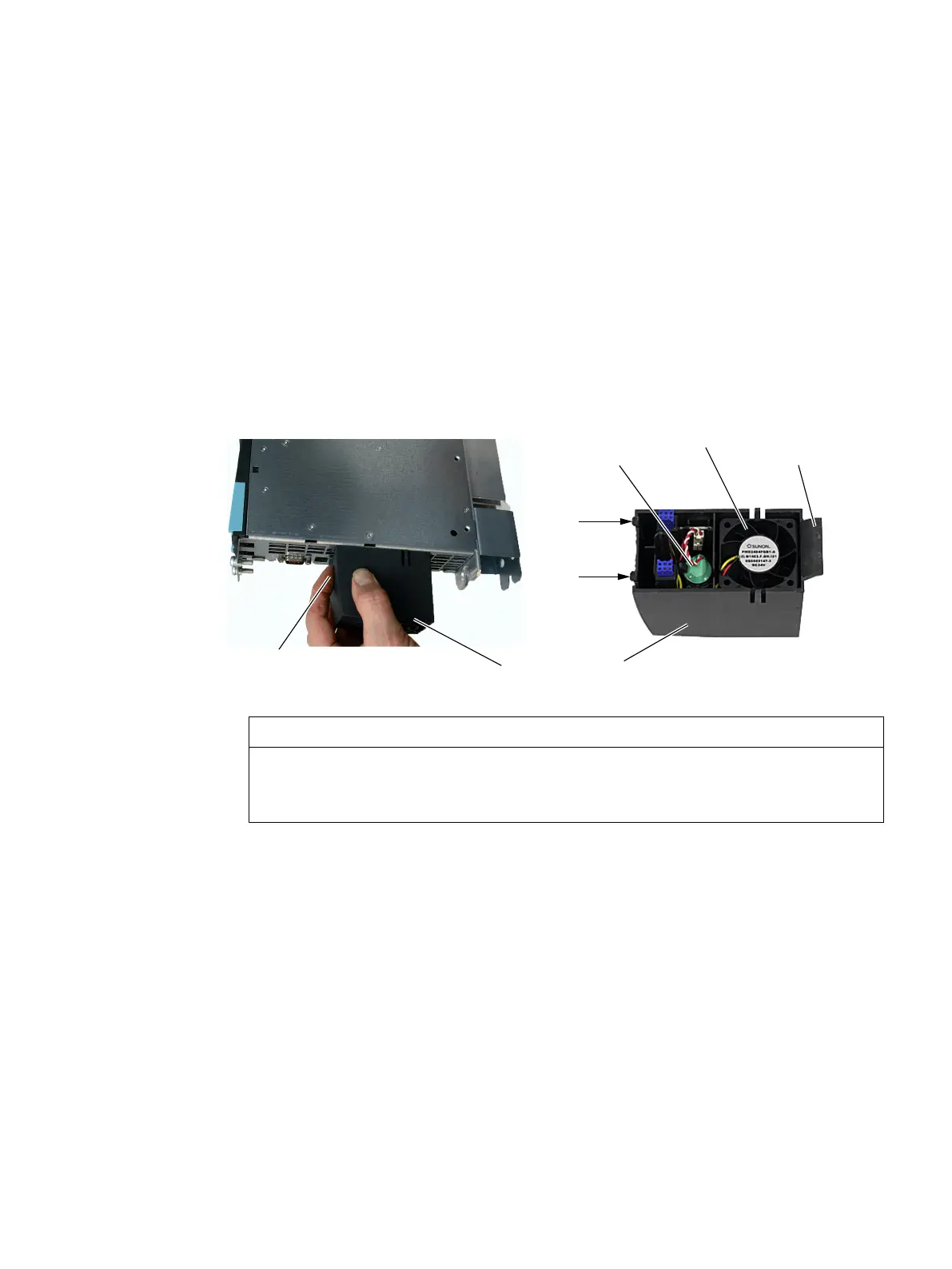

1. Gently push the dual fan/battery module backwards (by pressing on the pressure point) to
release the module from its front interlock (snap-in hooks).
'XDOIDQEDWWHU\PRGXOH
3ODVWLFJXLGH
)DQV
%DWWHU\
/RFNLQJODWFK
3RVLWLYHFOLFNDFWLRQ
NOTICE
Forcibly withdrawing the module can permanently damage it
Never pull the dual fan/battery module out abruptly without having released the interlock.
This would break the snap-in hooks and you would not be able to reinsert the module.
2. Tilt the dual fan/battery module forward at an angle and pull out the plastic guide from the
NCU cutout.
3. Remove the battery by rst removing the plug connector and then taking out the battery.
NCU 7x0.3B PN
Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1 155
