7.8.4 Example PROFINET CBA con󹪝guration

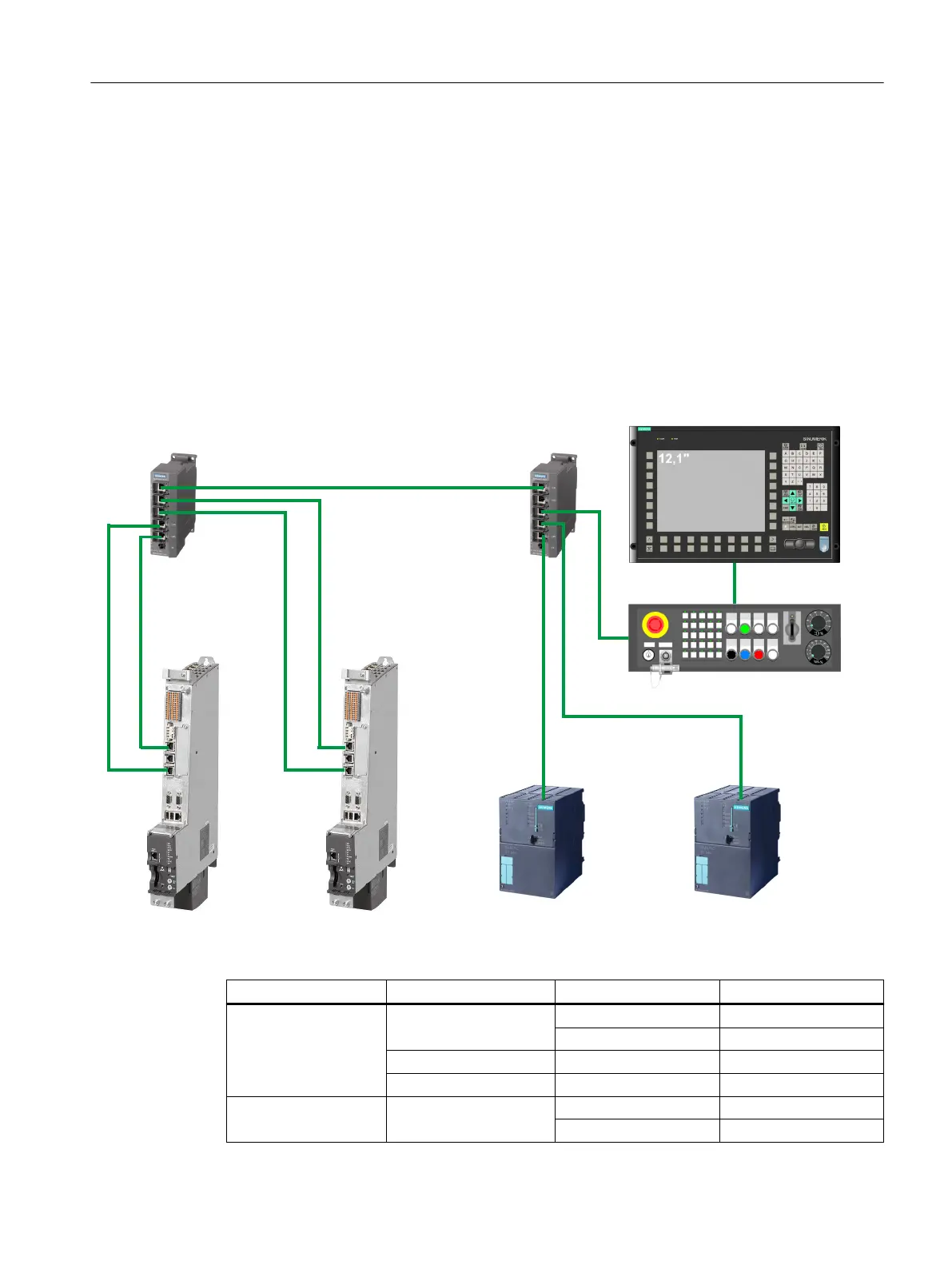

The following 󹪝gure shows a typical system con󹪝guration with PROFINET CBA.
&HQWUDO8QLW8QLW8QLW
3ODQWQHWZRUN
3ODQWQHWZRUN
3ODQWQHWZRUN
6\VWHPVQHWZRUN352),1(7&%$
6\VWHPVQHWZRUN352),1(7&%$
6\VWHPVQHWZRUN352),1(7&%$
6FDODQFH;6FDODQFH;
;
1&8%311&8%31
&3831'3
033,(
3&823
&3831'3
;
3RUW
;
3RUW
;
;
;
;
352),1(7&%$
352),1(7&%$
Figure 7-8 Example PROFINET CBA con󹪝guration
Station name Module type Interface IP address
Central NCU 730.3B PN X120 192.168.200.1
X150 port 1 192.168.200.2
IPC X501 192.168.200.5
MPP 483 IE X20 DHCP server 192.168.200.50
Unit01 NCU 730.3B PN X120 192.168.200.11
X150 port 1 192.168.200.12
Connecting
7.8 PROFINET
NCU 7x0.3B PN
Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1 65
