3. Carefully insert the new CompactFlash Card ② into the slot until it clicks into place. The
marking ③ provided on the CompactFlash Card is used as orientation: the two arrow heads
point to one another. When properly installed, the card does not extend beyond the housing.
4. Switch the power supply on again.
① Blanking plate
② CompactFlash Card
③ Marking for insertion direction

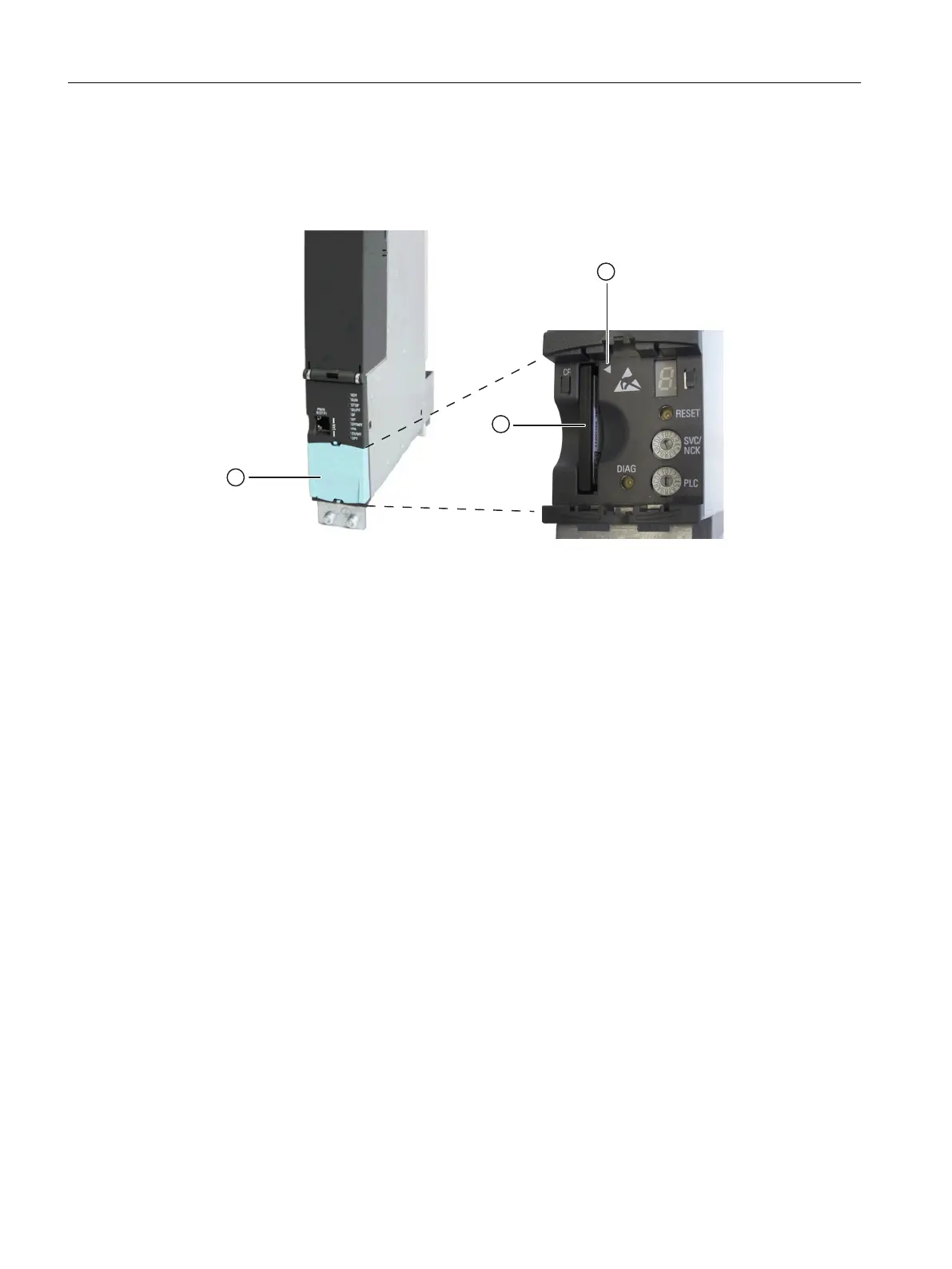

Figure 10-2 Inserting the CompactFlash card
Spare Parts/Accessories
10.2 CompactFlash Card
NCU 7x0.3B PN
158 Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1
