Pin assignment
Table 7-2 Power supply X124
Pin Signal name Signal type Meaning
+ P24 VI Power supply 24 V
+ P24 VI
M M VO Ground
M M VO
Signal type: VI = voltage input;VO = voltage output
Note
The two "+" or "M" terminals are jumpered in the connector. This ensures the 24 V voltage is
looped through.

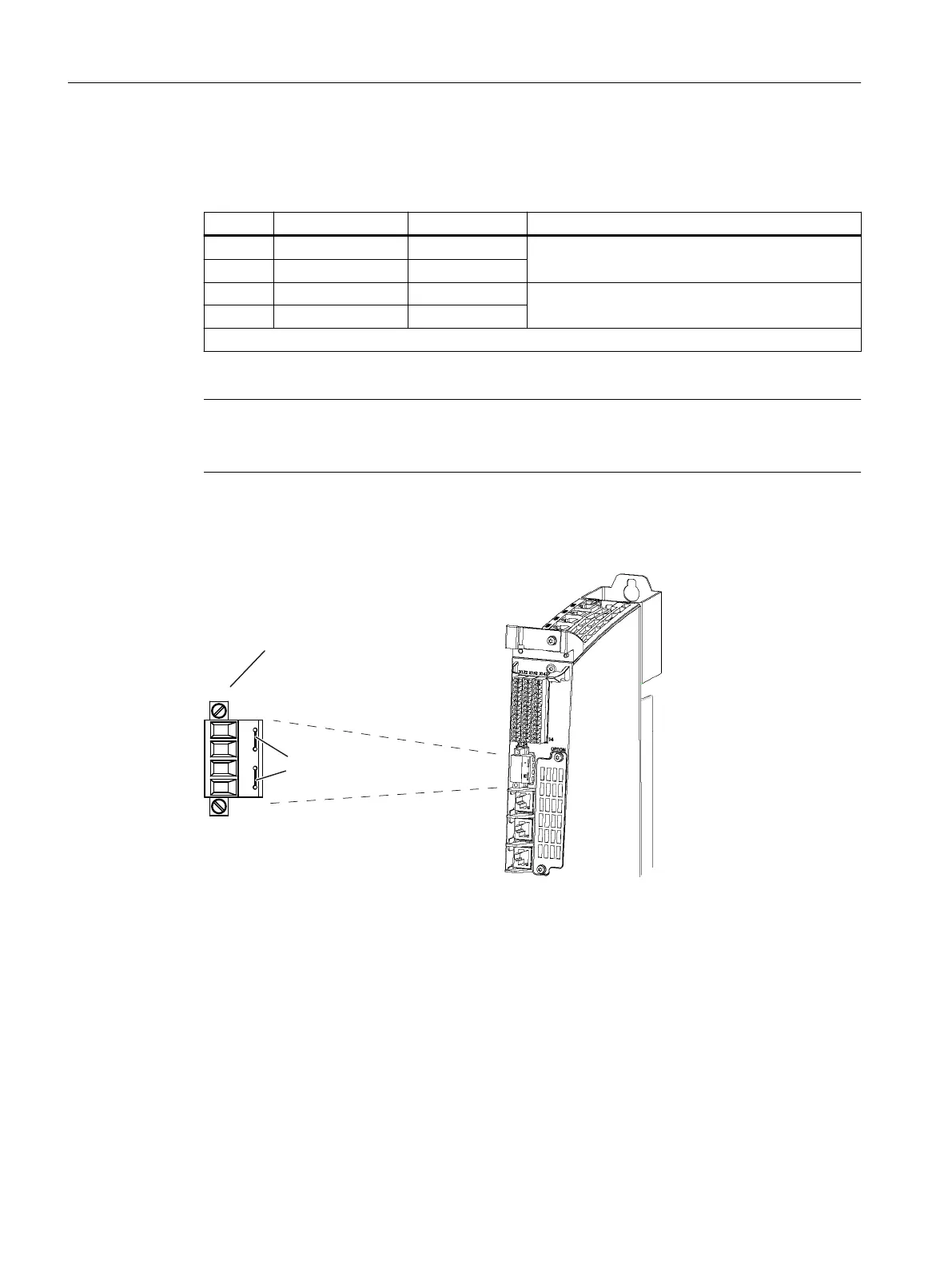

Position of power supply interface

0
-XPSHU
3RZHUVXSSO\FRQQHFWRU
Figure 7-3 Power supply interface
Connecting
7.5 Power supply
NCU 7x0.3B PN
52 Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1
