Siemens MICROMASTER 440 Series - Figure 2-3 Motor and Power Connections

2 Installation International English
MICROMASTER 440 Operating instructions
28 6SE6400-5CA00-0BP0
CONTACTOR
FUSE
N
L1
L2
L3
OPTIONAL
FILTER
(Class B only)
MICROMASTER
MOTOR
U
U
V
V
W
W
L/L1
N/L2
PE
PEPE
SINGLE PHASE
CONTACTOR
FUSE
L1
L2
L3
L1
L2
L3
OPTIONAL
FILTER
MICROMASTER
MOTOR
U
U
V
V
W
W
PE
PEPE
THREE PHASE
TYPICAL INSTALLATION
CABLE
SCREENING
CABLE
SCREENING

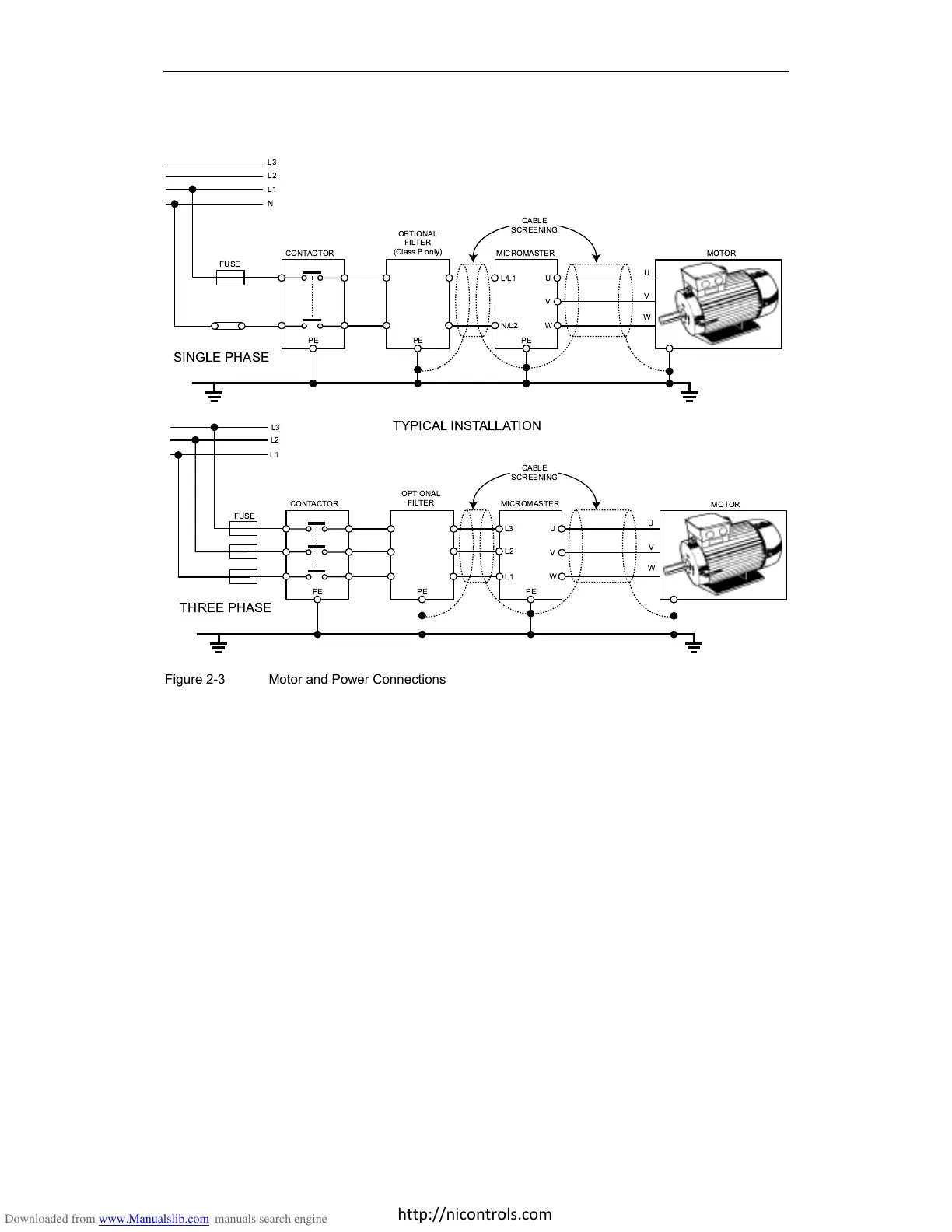

Figure 2-3 Motor and Power Connections
