Siemens MICROMASTER 440 Series User Manual

International English 5 System Parameters
MICROMASTER 440 Operating instructions
6SE6400-5CA00-0BP0
53
5.2 Parameter Overview
P0004 = 5
Technol.
Application / units
P0004 = 2
Inverter Unit
P0004 = 3
Motor Data
P0004 = 7
Commands and
Digital I/O
P0004 = 8
Analogue I/O
P0004 = 10
Setpoint Channel &
Ramp Generator
P0004 = 12
Drive Features
P0004 = 13
Motor Control
P0004 = 20
Communication
P0004 = 21
Alarms, Warnings &
Monitoring
P0004 = 22
PI Controller
P0004 = 4
Speed sensor
P0004 = 0
(no filter function)
allows direct access
to the parameters,
For BOP and AOP
depending on the
selected access
level
P0004 = 2, P0003 = 1,
Parameters level 1
concerning the inverter unit
P0004 = 2, P0003 = 2,
Parameters level 1 and 2
concerning the inverter unit
P0004 = 2, P0003 = 3,
Parameters level 1, 2 and 3
concerning the inverter unit
P0004 = 2, P0003 = 4,
Parameters level 1, 2, 3 and
4concerning the inverter unit
P0004 = 2
Inverter Unit

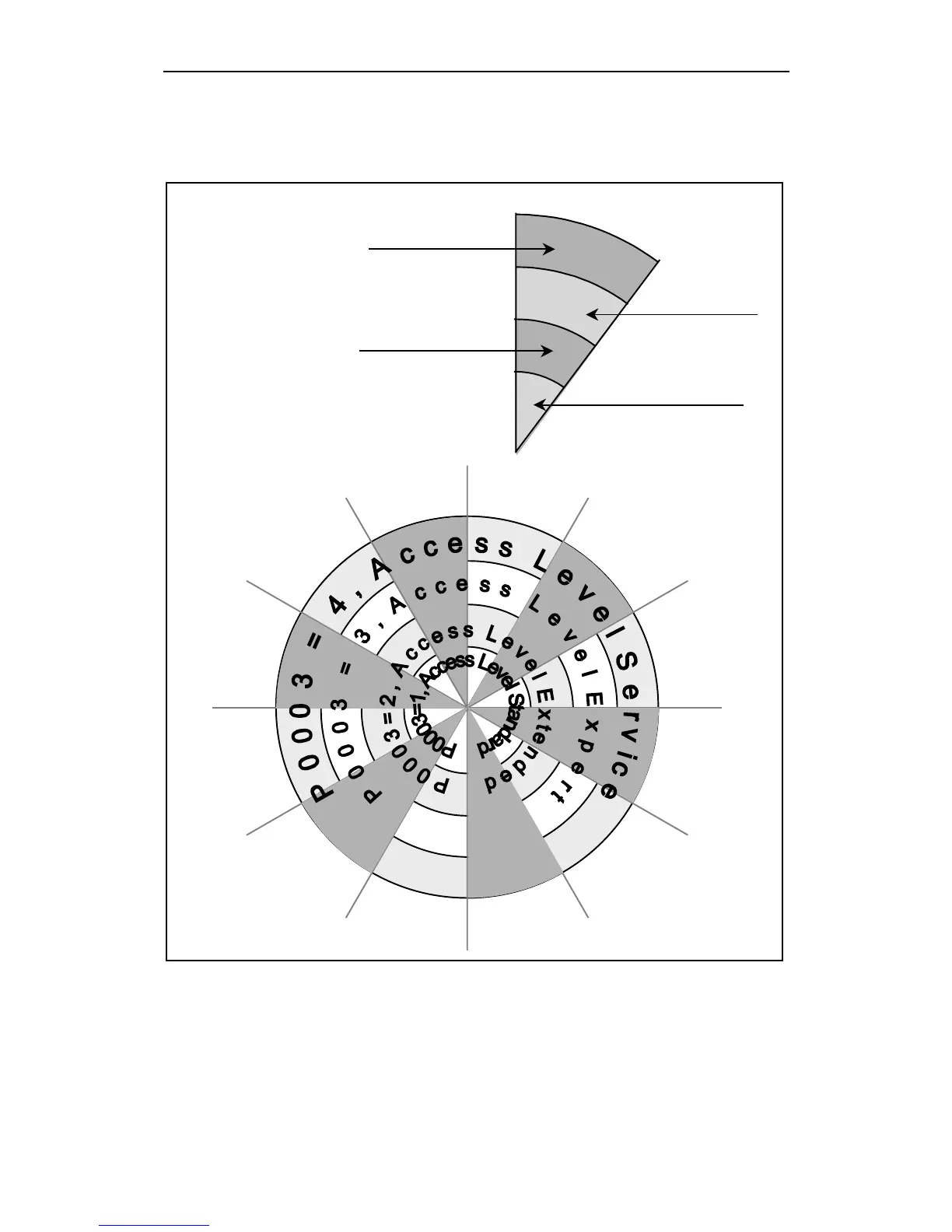

Figure 5-1 Parameter Overview
http://nicontrols.com

Siemens MICROMASTER 440 Series Specifications

General

Power Range	0.12 kW to 250 kW
Output Voltage	0V to Input Voltage
Frequency Range	0 Hz to 650 Hz
Overload Capacity	150% for 60 seconds, 200% for 3 seconds
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Control Modes	Vector control
Protection Features	Overvoltage, undervoltage, short circuit
Communication Interfaces	PROFIBUS, CANopen, RS485
Operating Temperature	-10°C to +50°C
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
