Siemens MICROMASTER 440 Series User Manual

International English 2 Installation
MICROMASTER 440 Operating instructions
6SE6400-5CA00-0BP0
23
2.3 Mechanical Installation
Warning
THIS EQUIPMENT MUST BE GROUNDED.
♦ To ensure the safe operation of the equipment, it must be installed and
commissioned by qualified personnel in full compliance with the warnings laid
down in these operating instructions.
♦ Take particular note of the general and regional installation and safety
regulations regarding work on dangerous voltage installations (e.g. EN
50178), as well as the relevant regulations regarding the correct use of tools
and personal protective equipment (PPE).
♦ The mains input, DC and motor terminals, can carry dangerous voltages even
if the inverter is inoperative; wait 5 minutes to allow the unit to discharge after
switching off before carrying out any installation work.
4
160 mm
6.30"
55 mm
0.22"
Ø 4.5 mm
0.17"
Ø 4.8 mm
0.19"
174 mm
6.85"
138 mm
5.43"
Ø 5.5 mm
0.22"
204 mm
8.03"
174 mm
6.85"
Frame Size A
Frame Size D Frame Size E Frame Size F
Frame Size B Frame Size C
Ø 17.5 mm
0.68"
486 mm
19.13"
235 mm
9.25"
616.4 mm
24.27"
810 mm
31.89"
With
Filter
1110 mm
43.70"
Ø 17.5 mm
0.68"
Ø15mm
0.59"
235 mm
9.25"
300 mm
11.81"
Operator
Panel
Operator
Panel
Operator
Panel
Operator
Panel
Operator
Panel

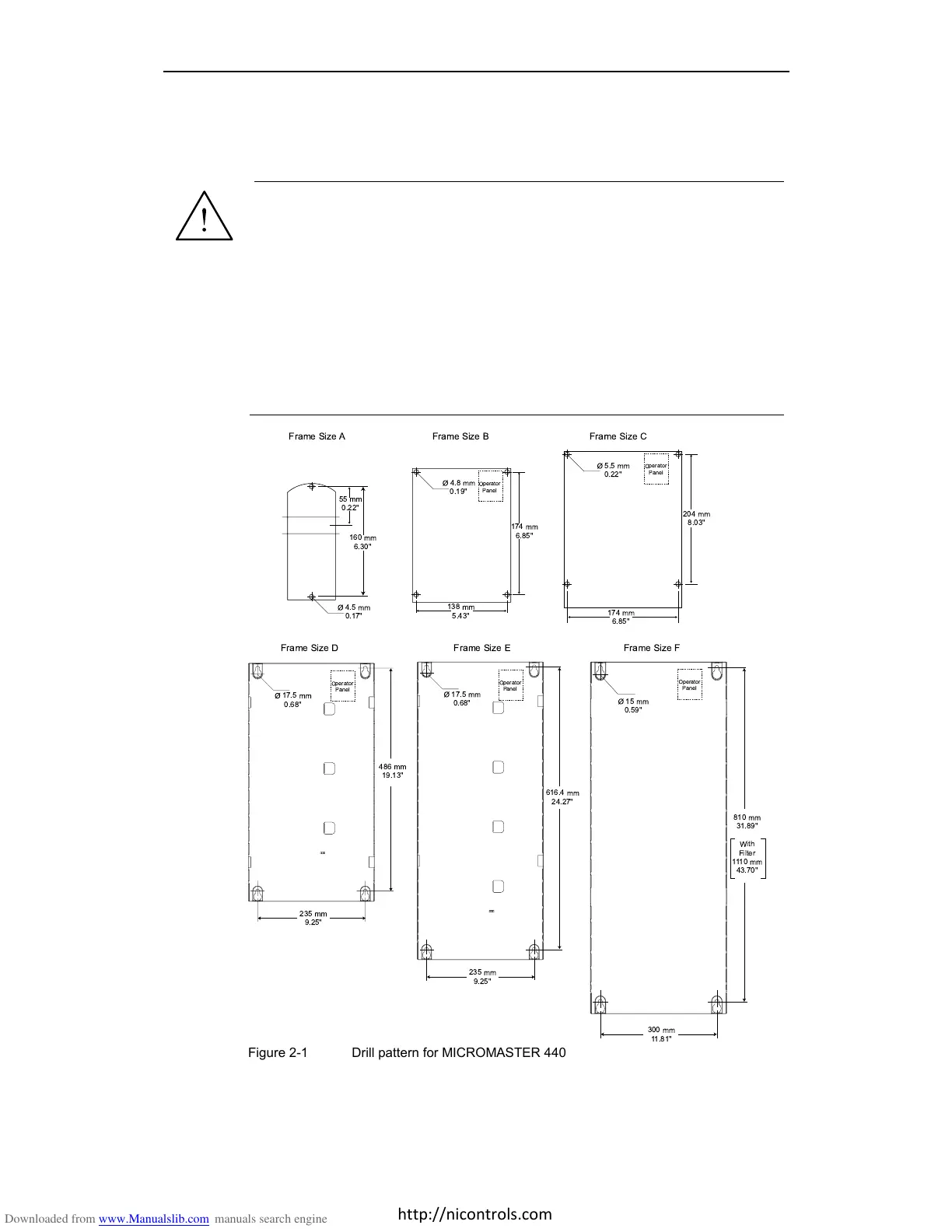

Figure 2-1 Drill pattern for MICROMASTER 440
http://nicontrols.com

Siemens MICROMASTER 440 Series Specifications

General

Power Range	0.12 kW to 250 kW
Output Voltage	0V to Input Voltage
Frequency Range	0 Hz to 650 Hz
Overload Capacity	150% for 60 seconds, 200% for 3 seconds
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Control Modes	Vector control
Protection Features	Overvoltage, undervoltage, short circuit
Communication Interfaces	PROFIBUS, CANopen, RS485
Operating Temperature	-10°C to +50°C
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
