Table 3-1 Default settings for operation using the Status Display Panel
Terminals Parameter Default Operation
Digital Input 1 5 P0701 = ‘1’ ON right
Digital Input 2 6 P0702 = ‘12’ Reverse
Digital Input 3 7 P0703 = ‘9’ Fault Acknowledge
Digital Input 4 8 P0704 = ‘15’ Fixed Frequency
Digital Input 5 16 P0705 = ‘15’ Fixed Frequency
Digital Input 6 17 P0706 = ‘15’ Fixed Frequency
Digital Input 7 Via AIN1 P0707 = ‘0’ Inactive
Digital Input 8 Via AIN2 P0708 = ‘0’ Inactive
3.2.3 Basic operation with SDP
With the SDP fitted, the following is possible:
 Start and stopping the motor (DIN1 via external switch)
 Reversing the motor (DIN2 via external switch)
 Fault Reset (DIN3 via external switch)
Controlling the speed of the motor is accomplished by connecting the analog inputs
as shown in the Figure 3-4.
AIN1
OFF = Voltage 0 - 10 V
ON =0-20mA
AIN2
OFF = Voltage0-10V
ON =0-20mA
Analogue
Output
0-20mA
(500 Ω )
ACK
P+
N-

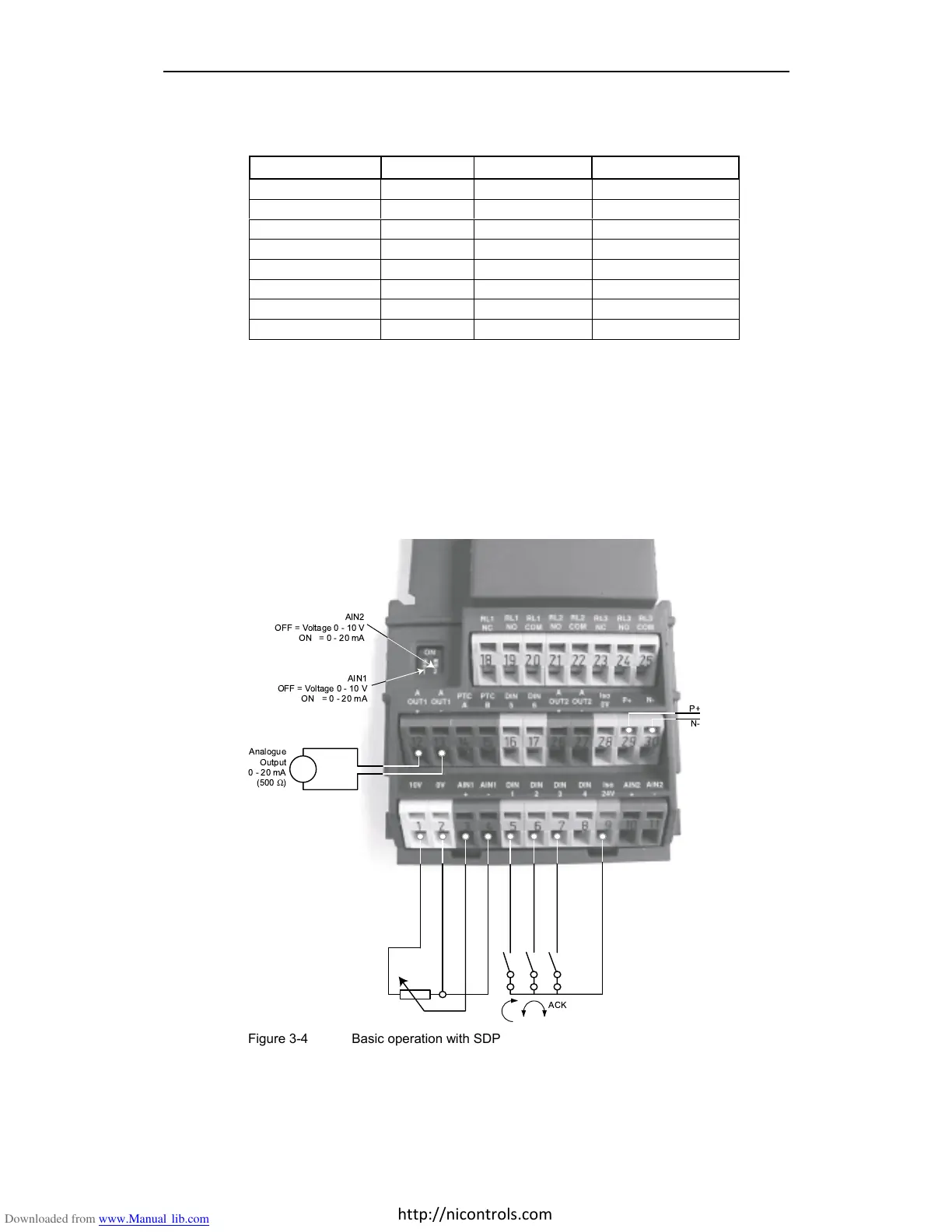

Figure 3-4 Basic operation with SDP
