International English 3 Commissioning
MICROMASTER 440 Operating instructions
6SE6400-5CA00-0BP0
39

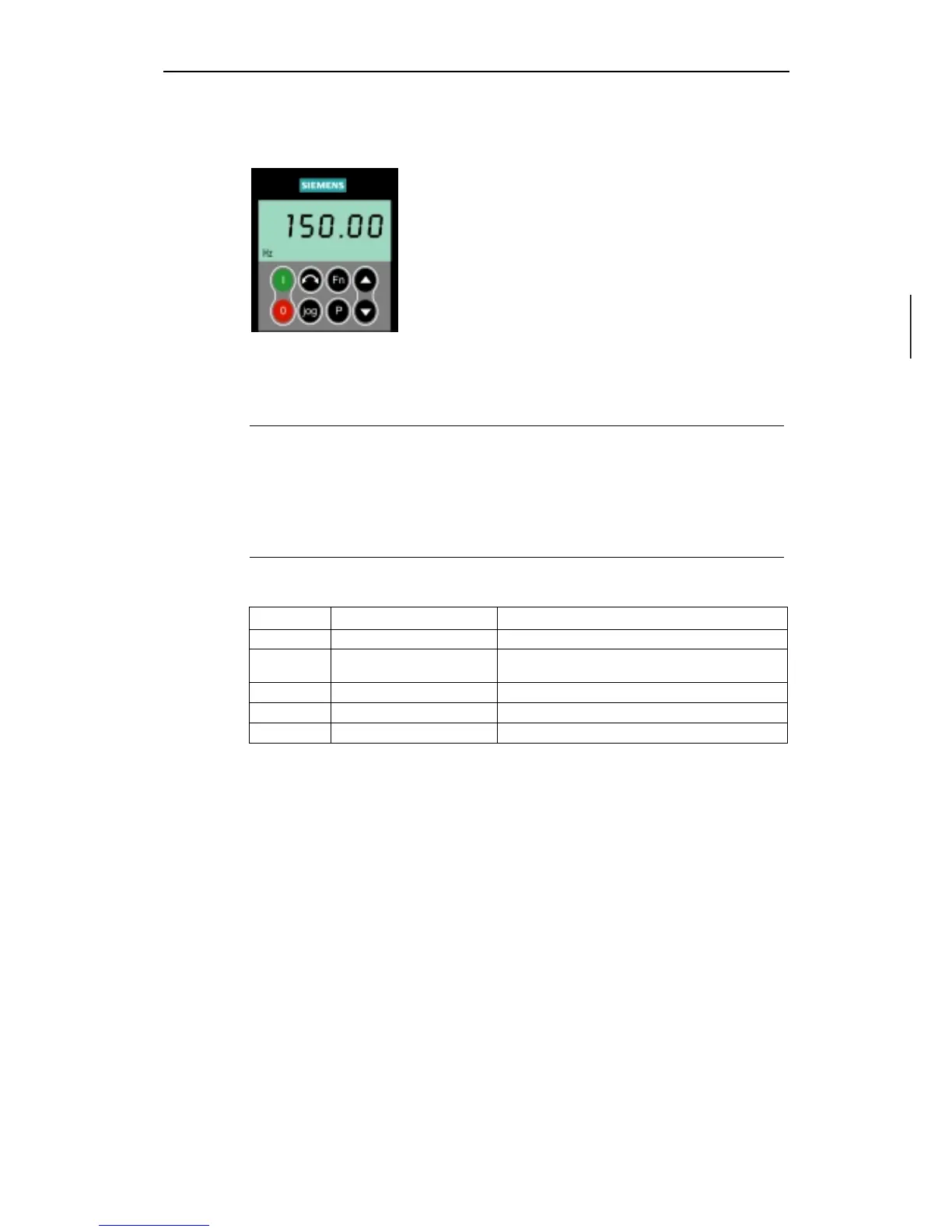

3.2.4.2 Commissioning with the Basic Operator Panel (BOP)
The Basic Operator Panel (BOP) provides access to the
inverter parameters and enables the user to customize
the settings of your MICROMASTER 440. The BOP can
be used to configure several MICROMASTER 440
Inverters. This is accomplished by using the BOP to set
the required parameters and once the process is
complete, then the BOP can be replaced by the SDP.
The BOP contains an five-digit display that allows the user
to read the input and output characteristics of any
parameter. The BOP does not have the capability to store
parameter information.
Table 3-1 shows the factory default settings for operation via the Basic Operator
Panel.
Notes
♦ The BOP motor control functions are disabled by default. To control the motor
via the BOP, parameter P0700 should be set to 1 and P1000 set to 1.
♦ The BOP can be fitted to and removed from the inverter whilst power is
applied.
♦ If the BOP has been set as the I/O control (P0700 = 1), the drive will stop if
the BOP is removed.
Table 3-1 Default settings for operation using the BOP
Parameter Meaning Default Europe (North America)
P0100 Operating Mode Europe/US 50 Hz, kW (60Hz, hp)
P0307 Power (rated motor)
Dimension (kW (Hp)) depending on setting of P0100.
[Value depending on variant.]
P0310 Motor frequency rating 50 Hz (60 Hz)
P0311 Motor speed rating 1395 (1680) rpm [depending on variant]
P1082 Maximum Motor Frequency 50 Hz (60 Hz)
