Note - Busy Message
In some cases - when changing parameter values - the display on the BOP shows
. This means the inverter is busy with tasks of higher priority.
Changing single digits in Parameter values
For changing the parameter value rapidly, the single digits of the display can be
changed by performing the following actions:
Ensure you are in the parameter value changing level (see "Changing parameters
with BOP").
1. Press
(function button), which causes the right hand digit to blink.
2. Change the value of this digit by pressing
/ .
3. Press
(function button) again causes the next digit to blink.
4. Perform steps 2 to 4 until the required value is displayed.
5. Press the
to leave the parameter value changing level.
Note
The function button may also be used to acknowledge a fault condition
Motor data for parameterization
50 Hz
230/400V
0.61 0.35 A
Cos j 0.81
Cos j 0.81
65%
0.12kW
2800 / min
3_Mot
IEC 56
IM B3
Nr. ED510 3053
IP54 Rot KL 16
60 Hz 440V Y
0.34A
0.14 kW
3310 /min
S.F. -- 1.15
12.022
I.CI.F
P0308 P0310 P0304
P0309 P0305 P0311 P0307

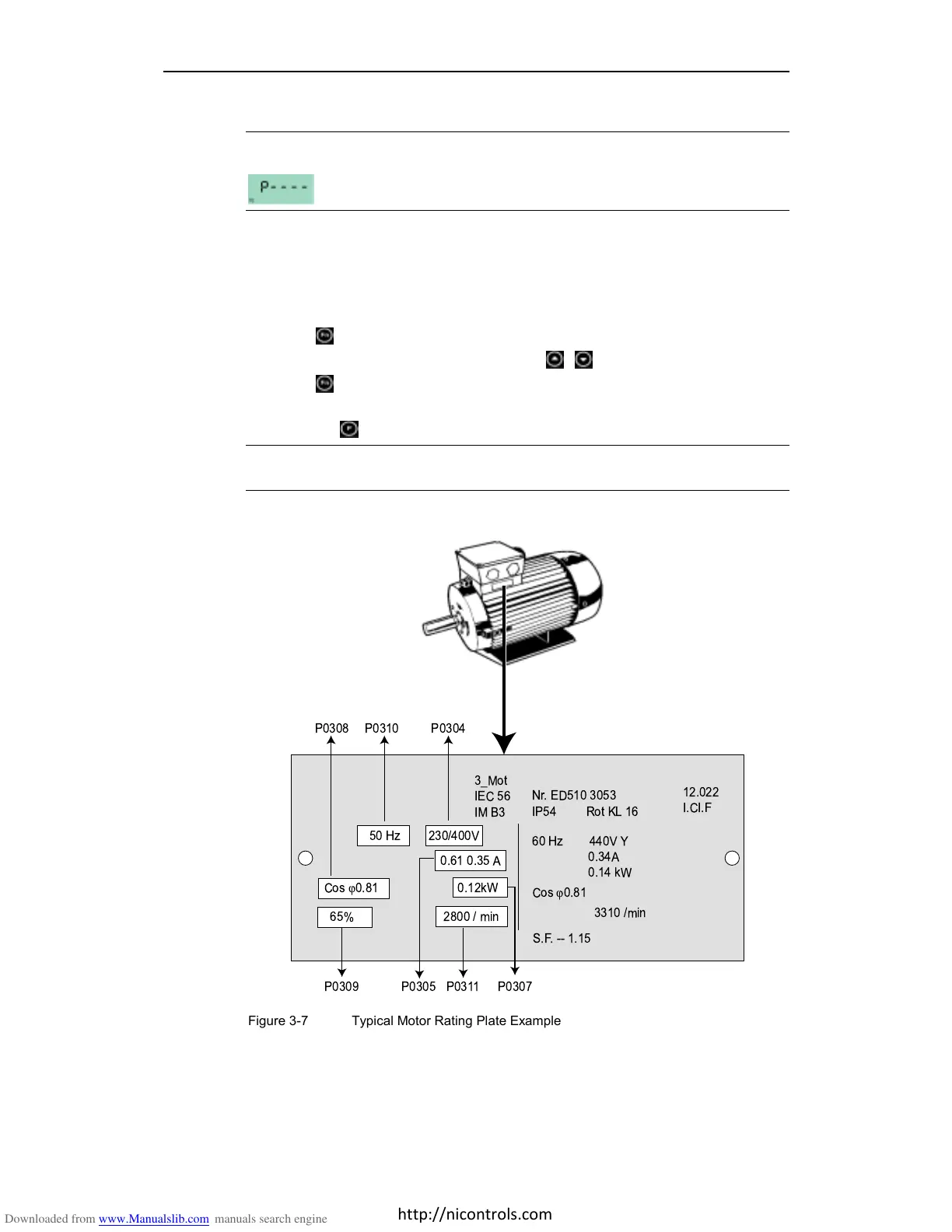

Figure 3-7 Typical Motor Rating Plate Example
