Page 6 Milltronics BW100 - INSTRUCTION MANUAL 7ML19985DJ01
mmmmm
Installation
Installation

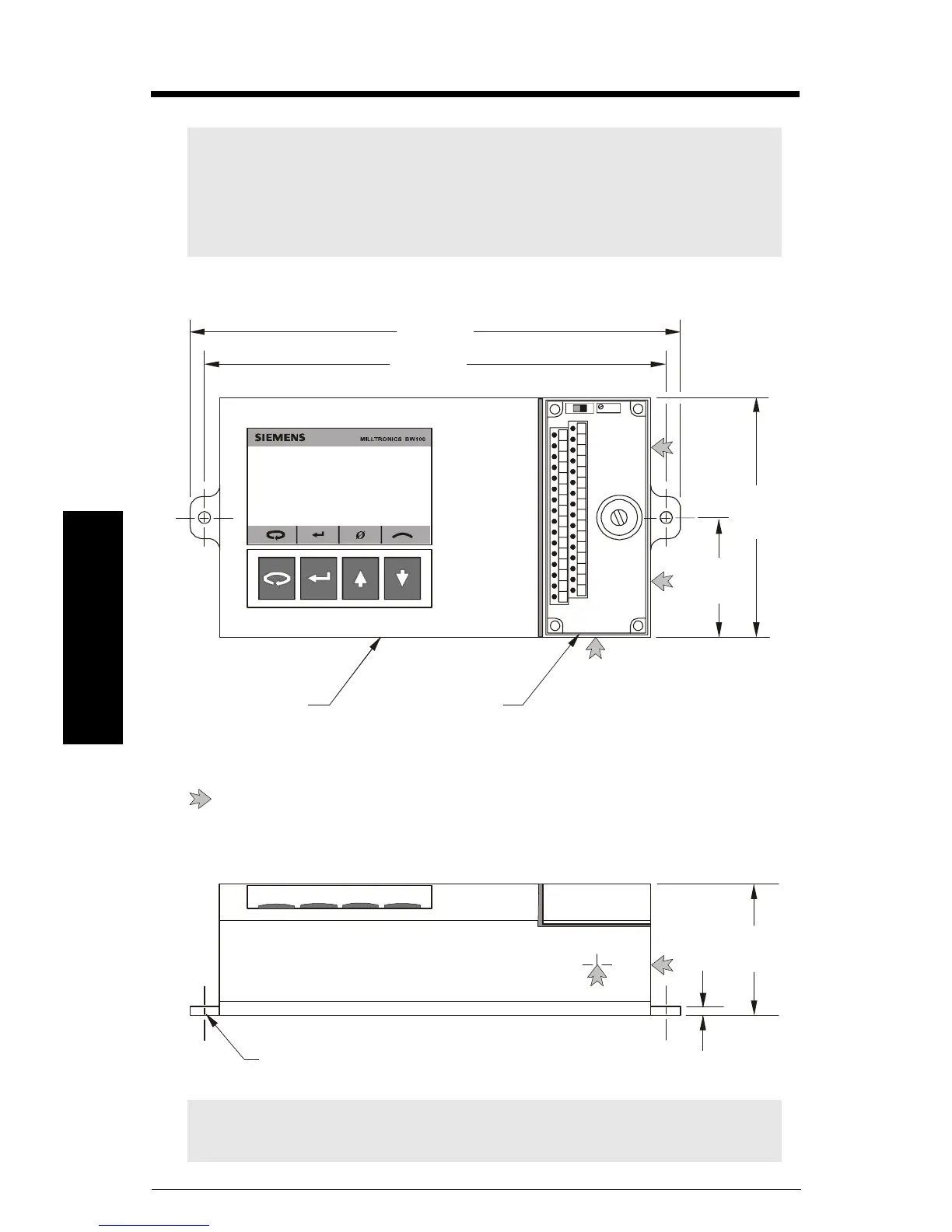

Dimensions
Notes:
• Installation shall only be performed by qualified personnel and in
accordance with local governing regulations.
• This product is susceptible to electrostatic shock. Follow proper
grounding procedures.
Note: Non metallic enclosure does not provide grounding between connections.
Use grounding type bushings and jumpers.
Conduit entry area. Recommend drilling the enclosure with a hole
saw and the use of suitable cable glands to maintain ingress rating.
270mm
(10.6")
254 mm
(10")
138 mm
(5.4")
69 mm
(2.7")
sealed
enclosure
integral junction box
(cover removed)
with terminal block and
voltage selection switch
mounting hole
6.4 mm (1/4") Ø
5 mm
(0.2")
74 mm
(2.9")
