Siemens RUGGEDCOM RX1400 Installation Guide

Chapter 2
Installing the Device
RUGGEDCOM RX1400
Installation Guide
18 Connecting WLAN Antennas
4
1
1
3
3
5
2
6
5

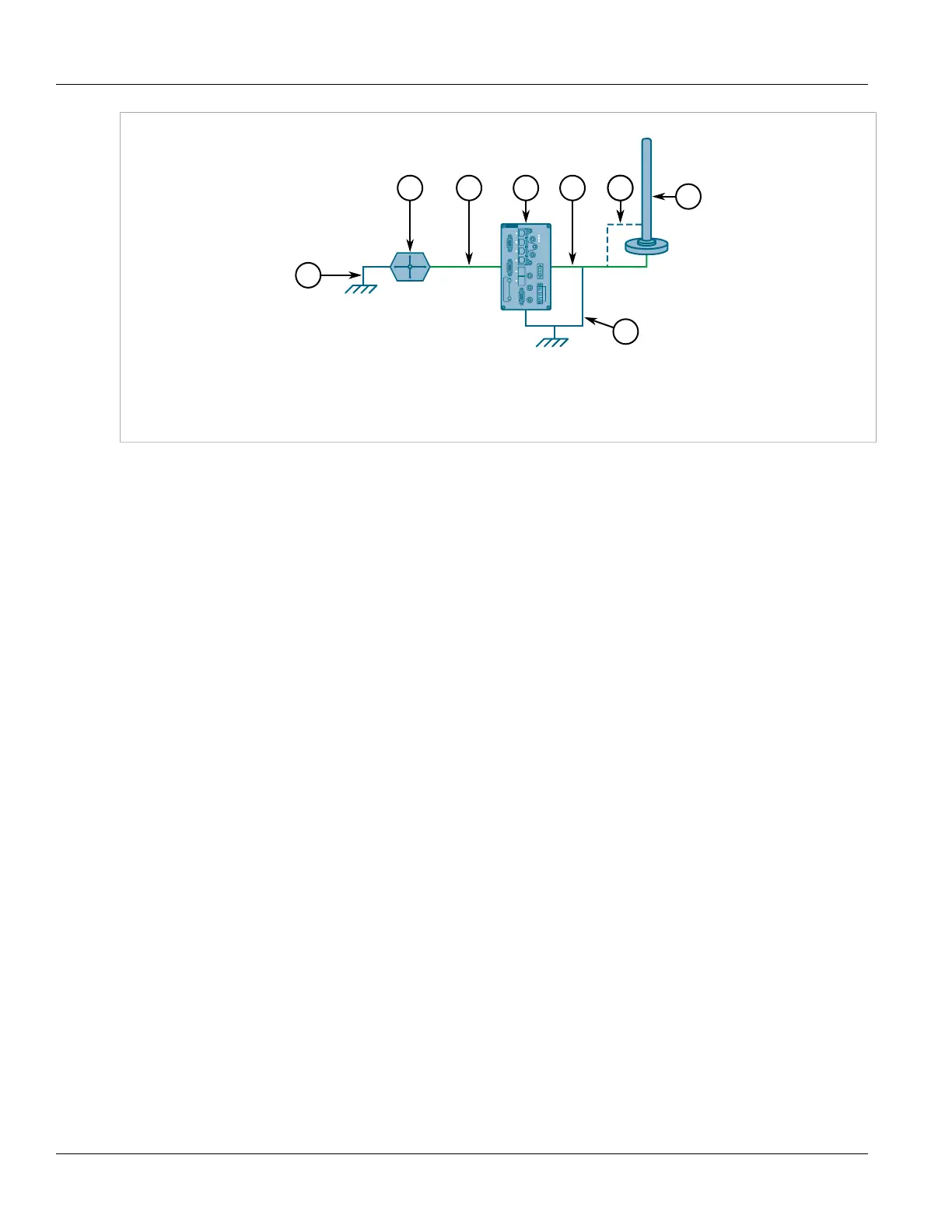

Figure7:Antenna and Lightning Protector Assembly (Optional)
1.Drain Wire 2.RUGGEDCOM RX1400 3.Shielded Coaxial Cable 4.Lightning Protector, Line Amplifier or Bandpass Filter
5.Ground Wire 6.GPS Antenna
3. Using shielded coaxial cables, connect the antenna assembly to the ANT2 port on the device.
Section2.6.4
Connecting WLAN Antennas
Install a single WLAN antenna for Single-Input Single-Output (SISO) or dual antennas for Multiple-Input Multiple-
Output (MIMO).
To install a WLAN antenna, do the following:
1. Select an appropriate antenna. For a list of available WLAN antennas, refer to Section2.6.1, “Available
Antennas”.
2. Mount the antenna to a pole or wall in an area that provides good signal coverage and is away from any
signal noise emanating from other communications equipment.
3. Using shielded coaxial cables, connect the antenna to either the ANT3 (SISO) or ANT4 (MIMO) port on the
device. Make sure the cable is routed away from any noise sources, such as Switch-Mode Power Supplies
(SMPS).
If needed, install a lightning protect between the antenna and the device.
