Siemens RUGGEDCOM RX1400 Installation Guide

RUGGEDCOM RX1400
Installation Guide
Chapter 3
Communication Ports
Fast Ethernet Ports 25
Communication Ports
The RUGGEDCOM RX1400 can be equipped with various types of communication ports to enhance its abilities and
performance.
1
5
4
2
6
7
8
9
3

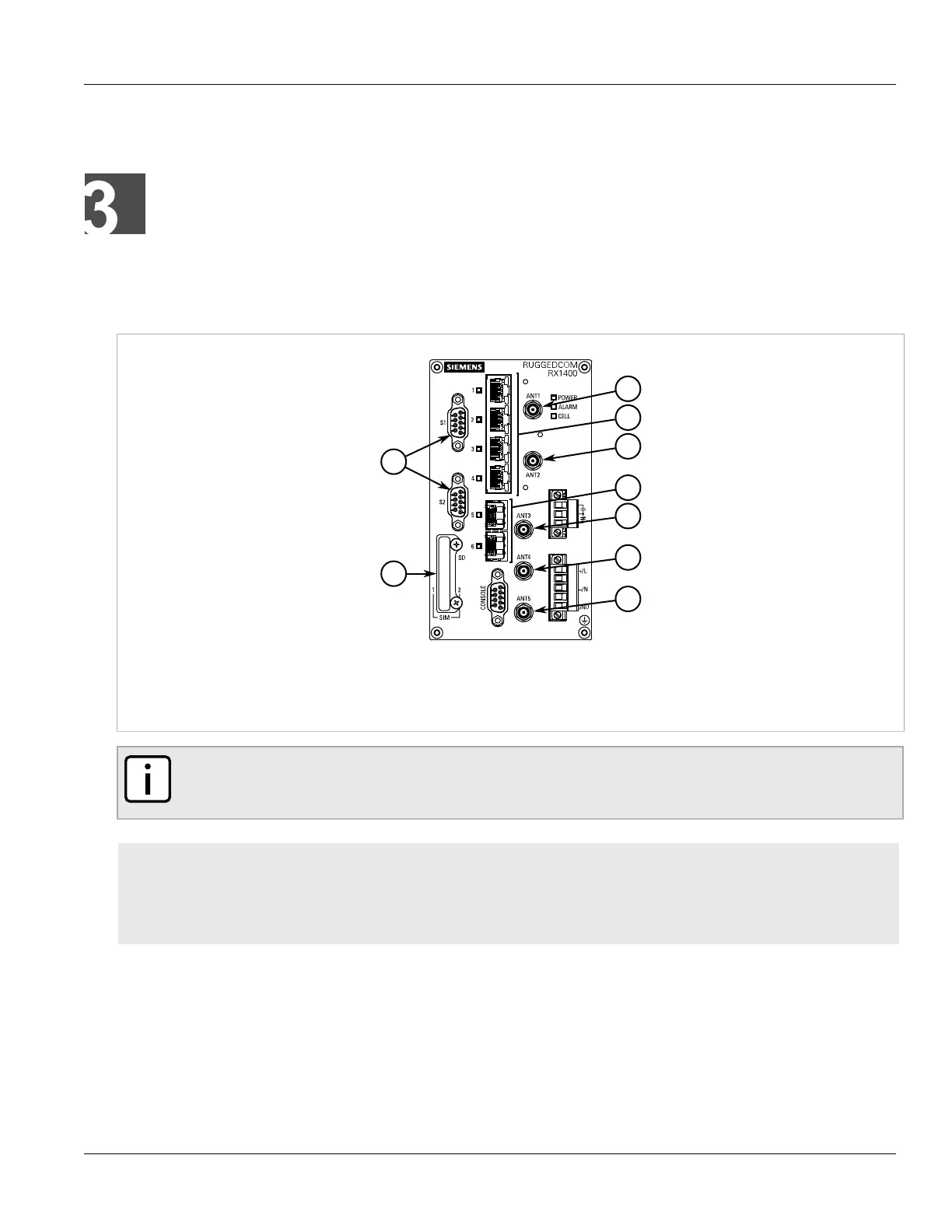

Figure15:Port Assignment
1.Serial Ports 2.Access Plate 3.ANT1 Port 4.Fast Ethernet Ports 5.ANT2 Port 6.SFP Transceiver Ports 7.ANT3 Port 8.ANT4
Port 9.ANT5 Port
NOTE
For information about the LTE MAIN, LTE MIMO or GPS ports and the cellular modem, refer to
Section4.5, “Cellular Modem Specifications”.
CONTENTS
• Section3.1, “Fast Ethernet Ports”
• Section3.2, “SFP Transceivers”
• Section3.3, “Serial Ports”
Section3.1
Fast Ethernet Ports
The RUGGEDCOM RX1400 features four 10/100Base-TX fast Ethernet (FE) ports with RJ45 connectors. The RJ45
connectors are directly connected to the chassis ground on the device and can accept CAT-5 shielded twisted-pair
(STP) cables.
