Chapter 3
Communication Ports
Serial Ports 27
IMPORTANT!
Only use SFP transceivers approved by Siemens for RUGGEDCOM products. Siemens accepts no liability
as a result of performance issues related in whole or in part to third-party components.
SFP Transceiver Order Code
Speed
(Mbit/s)
Mode
a
Nominal Distance (km)
RUGGEDCOM SFP1121-1FX2A 6GK6000-8FE50-0AA0 100 MM 2
RUGGEDCOM SFP1132-1BX10R 6GK6000-8FB51-0AA0 1000 SM 10
RUGGEDCOM SFP1132-1BX10T 6GK6000-8FB52-0AA0 1000 SM 10
RUGGEDCOM SFP1132-1BX40R 6GK6000-8FB53-0AA0 1000 SM 40
RUGGEDCOM SFP1132-1BX40T 6GK6000-8FB54-0AA0 1000 SM 40
RUGGEDCOM SFP1122-1SX 6GK6000-8FG51-0AA0 1000 MM 0.5
RUGGEDCOM SFP1132-1LX10 6GK6000-8FG52-0AA0 1000 SM 10
RUGGEDCOM SFP1132-1LX25 6GK6000-8FG53-0AA0 1000 SM 25
RUGGEDCOM SFP1132-1LX40 6GK6000-8FG57-0AA0 1000 SM 40
RUGGEDCOM SFP1132-1LX70 6GK6000-8FG54-0AA0 1000 SM 70
RUGGEDCOM SFP1132-1LX100 6GK6000-8FG55-0AA0 1000 SM 100
a
MM = Multi-Mode, SM = Single-Mode
Section3.3
Serial Ports
The RUGGEDCOM RX1400 supports two serial ports with female DB9 connectors, which can be run in RS-232,
RS-485 or RS-422 mode. For technical specifications, refer to Section4.4, “Serial Port Specifications”.
The following is the pin-out description for DB9 serial ports:
Serial DB9 Port
5
1
69

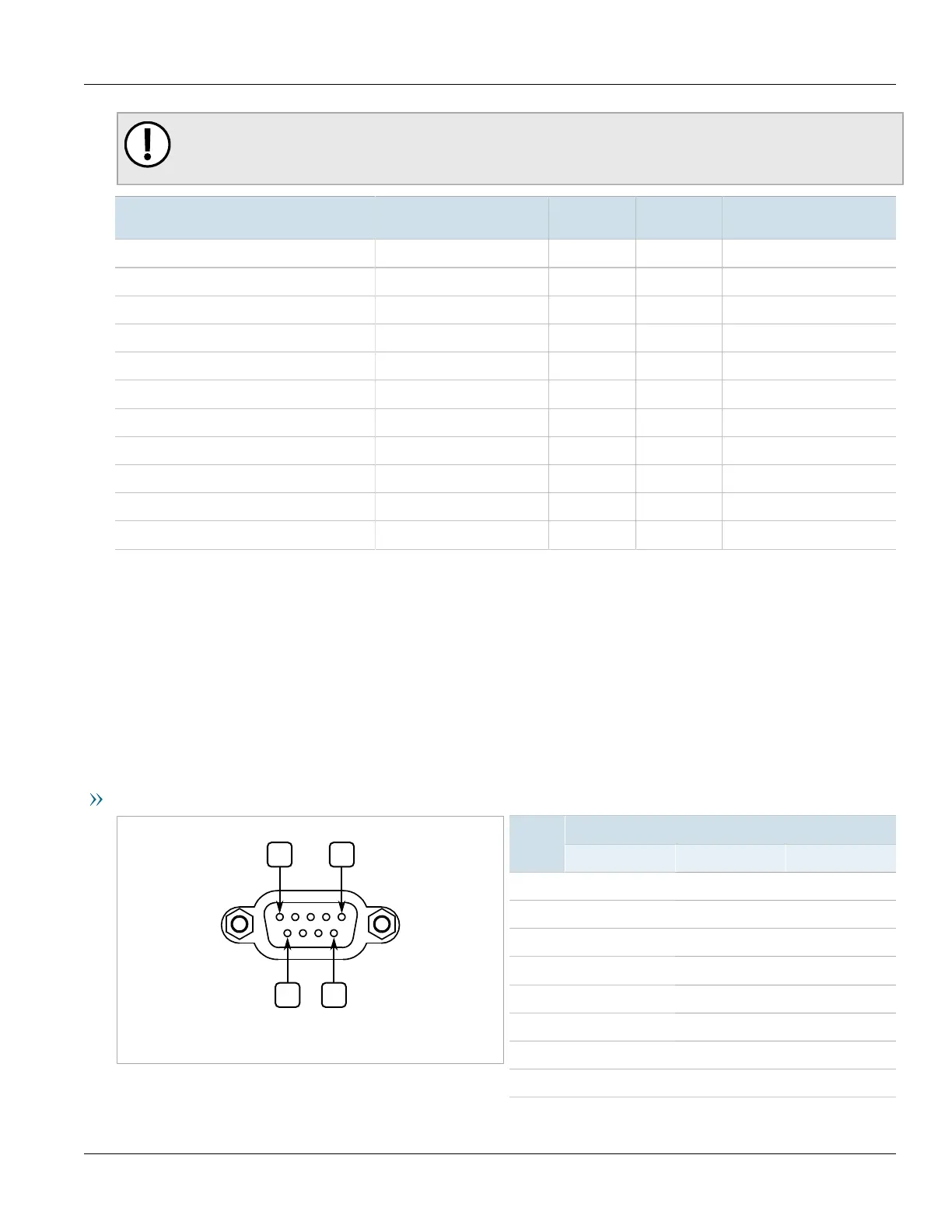

Figure17:Serial DB9 Port Pin Configuration
Mode
Pin
RS-232 RS-422 RS-485
1 Reserved (Do Not Connect)
2 RX
b
RX-
3 TX
b
TX- RX-/TX-
4 Reserved (Do Not Connect)
5 Common (Isolated) Ground
6 Reserved (Do Not Connect)
7 RTS TX+ RX+/TX+
8 CTS RX+
