2.6 Digital inputs and outputs
24 Equipment Manual, 09/2022, L1V30415168B-03
2.6.1 Digital Input
The following functions can be assigned to the digital input:
• Status monitoring: Capturing statuses of connected signal encoders
• Tariff switching for two-tariff counters
• Synchronization of the measuring period by means of the synchronization pulse of a
system control center or other device.
• Input for energy pulses (S0 interface)
External power supply, max. 30 VDC, typically 24 VDC

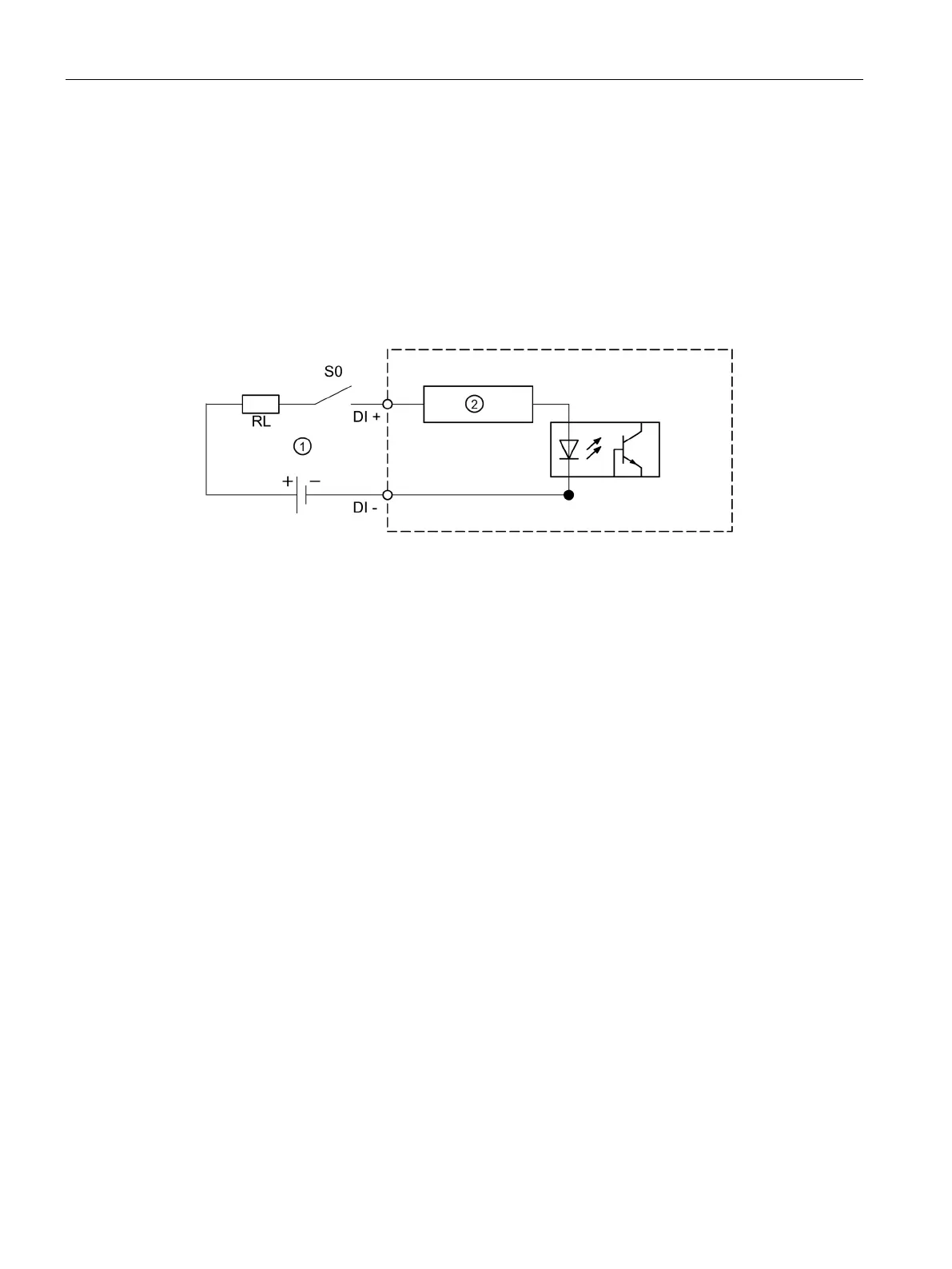

Figure 2-1 Block diagram: Digital inputs
