2.6 Digital inputs and outputs
Equipment Manual, 09/2022, L1V30415168B-03
25
2.6.2 Digital output
The following functions can be assigned to the digital output:
• Not used:
The digital output is deactivated.
• Device ready for operation:
With the device ready for operation the digital output is ON.
• Remote control:
The digital output is remotely controlled.
• Direction of rotation
The digital output is switched on by a counter-clockwise rotating electrical field and
remains active while the direction of rotation of the field remains unchanged.
• Limit violation:
The digital output is switched on by a limit violation and remains active while the limit
violation prevails.
• Energy pulse
The digital output outputs the parameterized number of pulses per energy unit (e.g. kWh).
The specified energy counter is evaluated here.

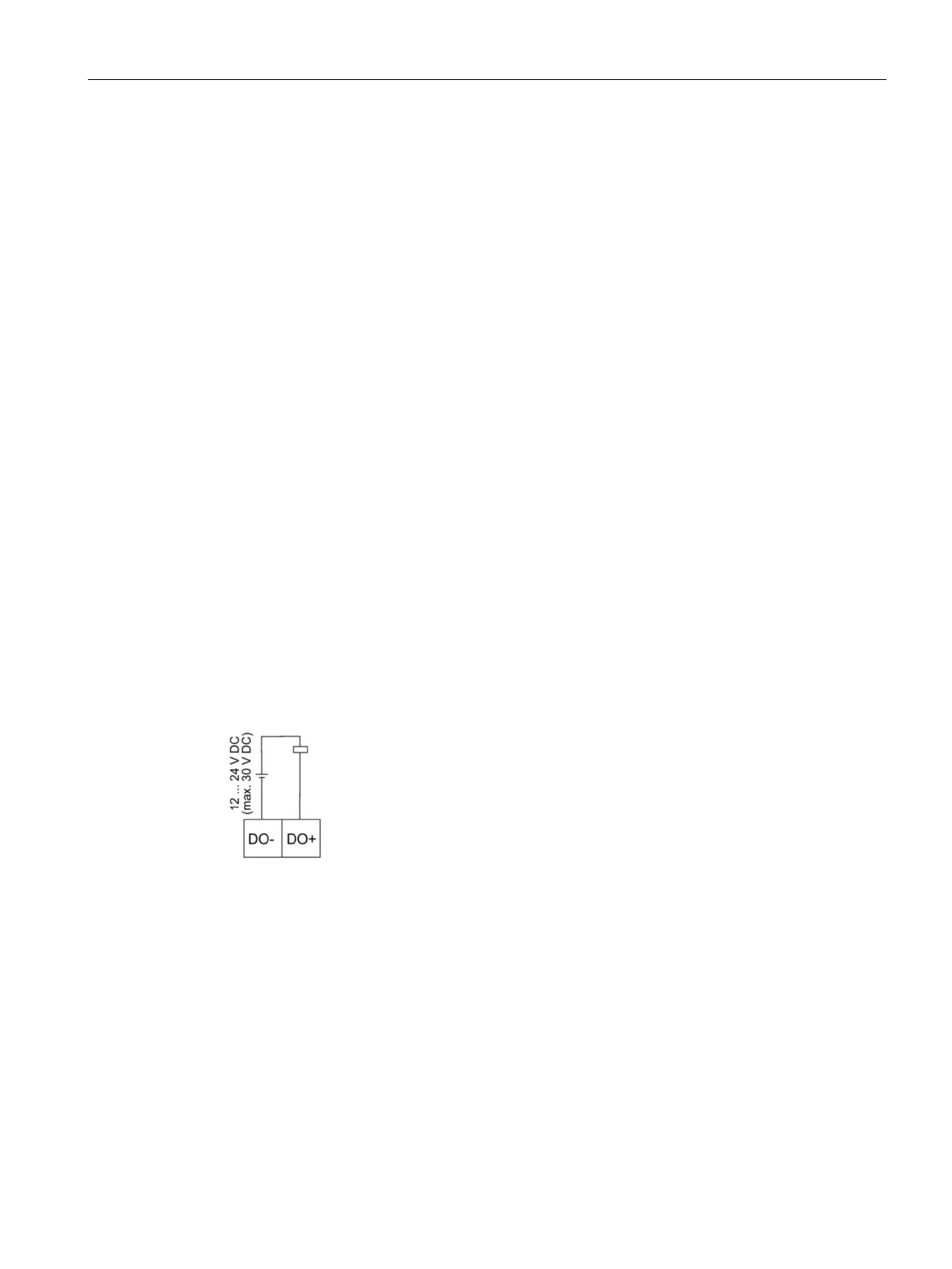

Figure 2-2 Block diagram: Digital outputs
