Connection
4.3 Connection examples
Equipment Manual, 09/2022, L1V30415168B-03
41

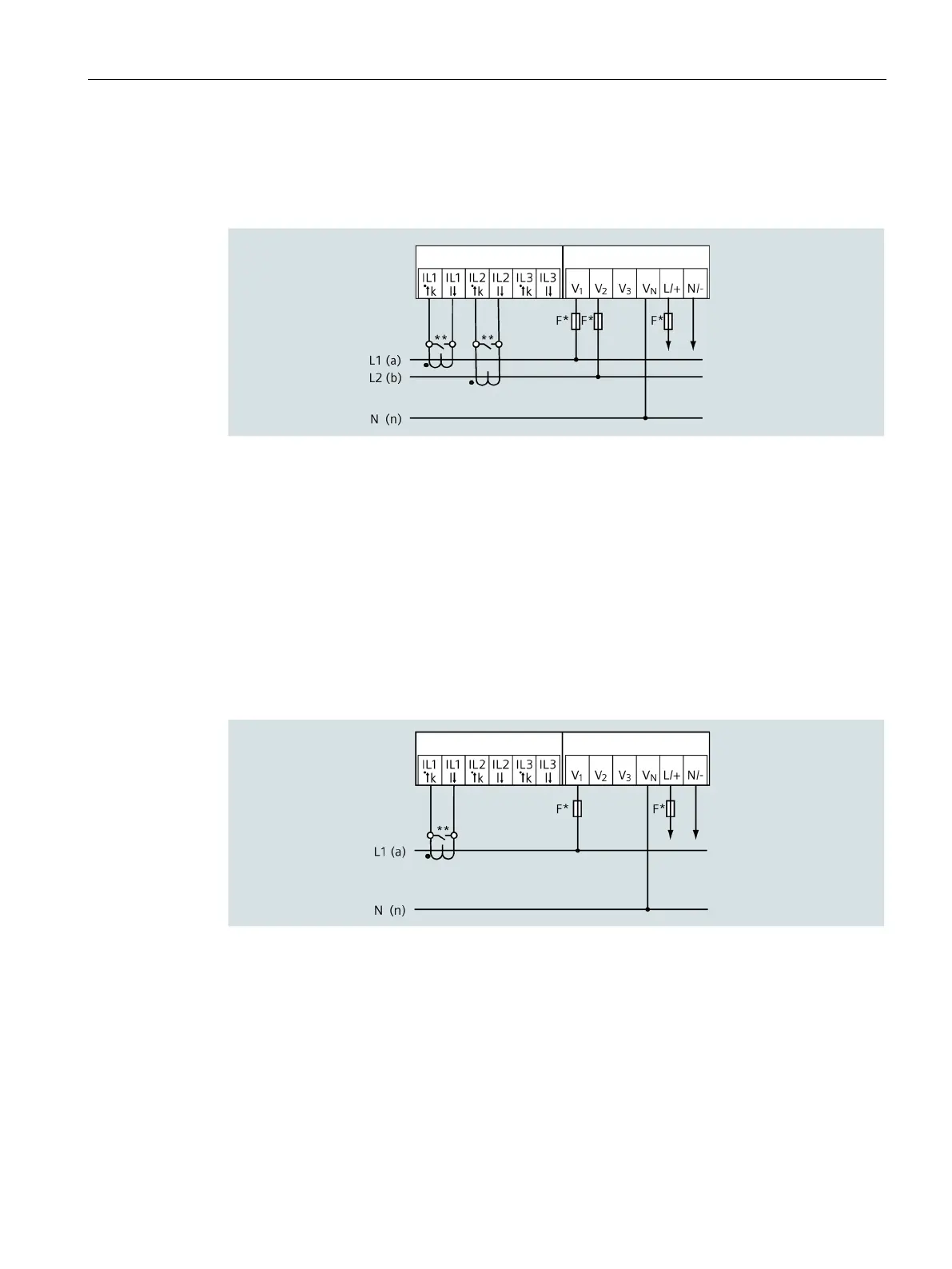

(11) Two-phase measurement, three conductors, unbalanced load, without voltage
transformer, with two current transformers
Connection type 3P4W
* The fuses are only used for cable protection. All commercially available fuses and automatic
circuit breakers up to 16 A (C) or 20 A (B) can be used.
** Install a short-circuit device. Protection against overvoltage when the secondary transformer
circuit is open.
Figure 4-12 Connection type 3P4W, without voltage transformer, with two current transformers
The device indicates 0 (zero) V for L3.
(12) Single-phase measurement, two conductors, without voltage transformer, with one
current transformer
Connection type 1P2W
*
The fuses are only used for cable protection. All commercially available fuses and automatic
circuit breakers up to 16 A (C) or 20 A (B) can be used.
** Install a short-circuit device. Protection against overvoltage when the secondary transformer
circuit is open.
Figure 4-13 Connection type 1P2W, without voltage transformer, with one current transformer
