Siemens SICAM - Current-Sensors Grounding Connection

Table 7-3 Power-Flow Direction Parameters for Isolated/Compensated-Grounded Systems
Phase Parameter Value
I
1
power-flow direction Not reversed
I
2
/I
N
power-flow direction Reversed
I
3
power-flow direction Not reversed
i
i
NOTE
Table 7-2 and Table 7-3 show the settings recommended by Siemens. You can change the power-flow
direction according to your applications.
Current-Sensors Grounding Connection

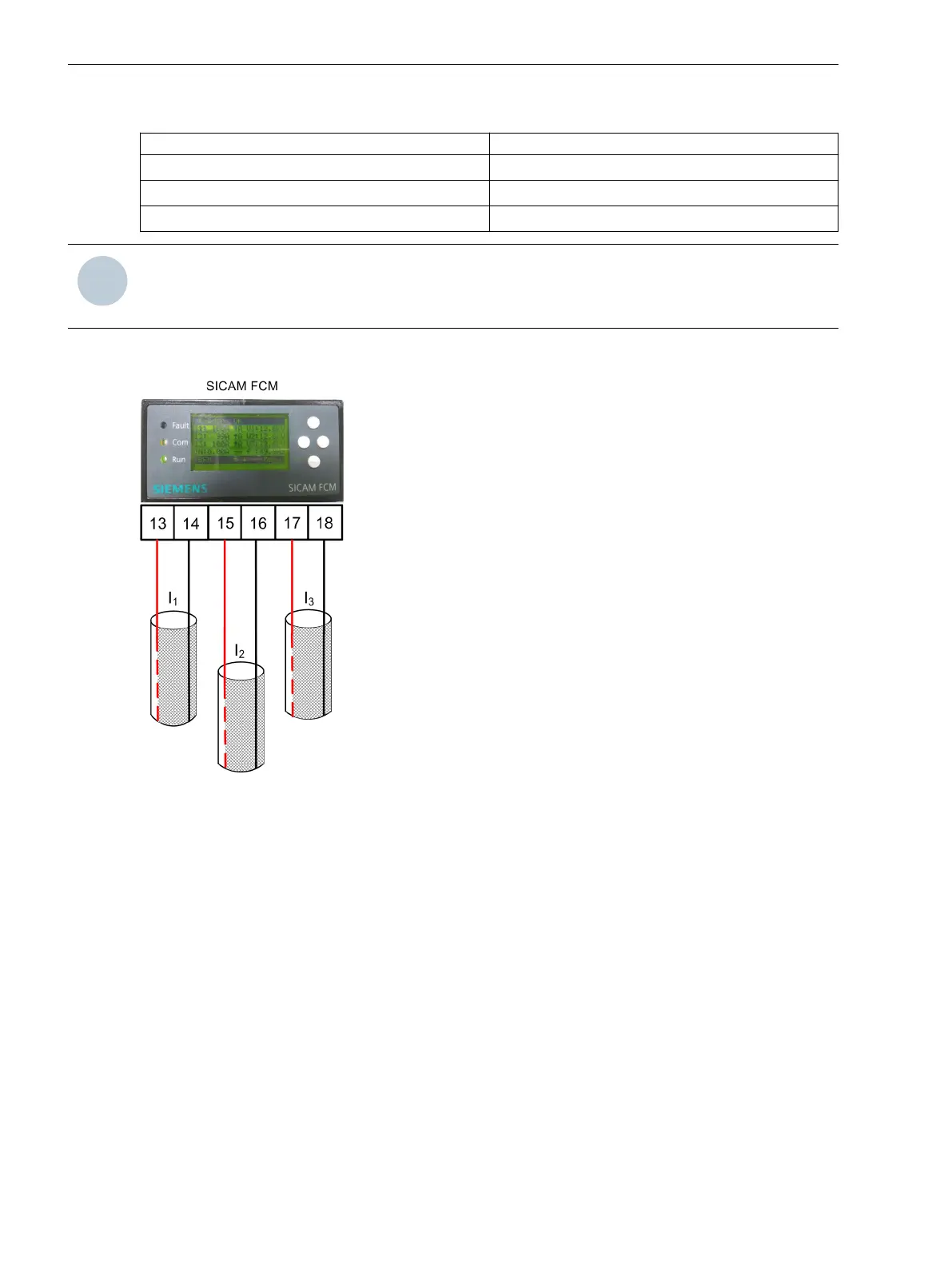

[dw_sfcm_cursen_grndconn, 1, en_US]
Figure 7-11 Current-Sensors Grounding Connection
Connection Diagrams
7.3 Sensor Connections
76 SICAM, Feeder Condition Monitor, Manual
E50417-H8940-C580-A4, Edition 03.2019
