Siemens SIMATIC CN 4100 - Plant Engineering; Communication System Configuration

Plant engineering
4

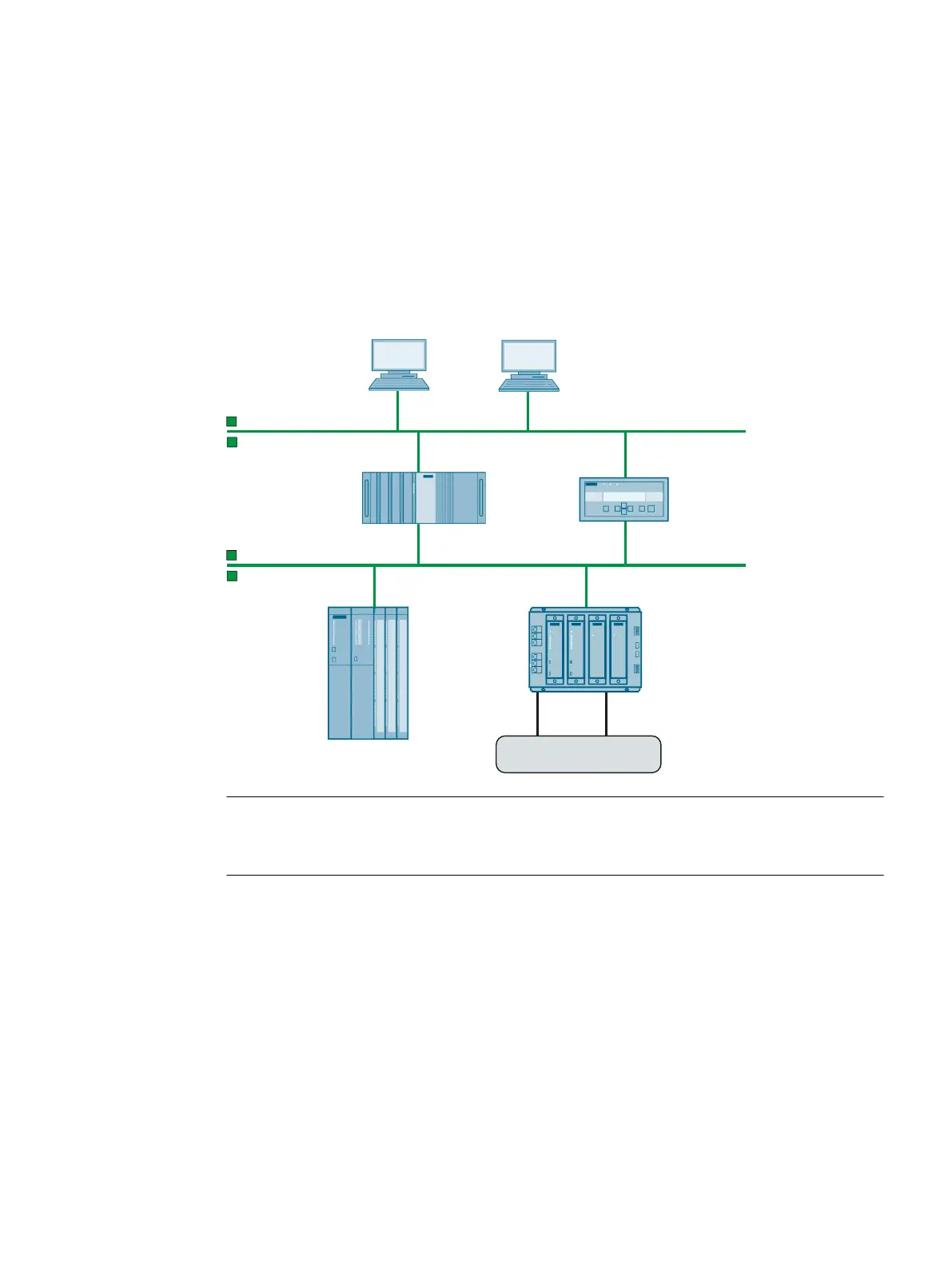

The position of the SIMATIC CN 4100 communication system in the topology and typical
applications are shown in the 󹪝gure below:
5IJSEQBSUZTZTUFNT
/51TFSWFS
6TFSOFUXPSL
1MBOUOFUXPSL
.PECVT5$1
&OHJOFFSJOH4ZTUFN&4
0QFSBUJOH4ZTUFN04
&404
&404
4
01$6"
4*."5*$$/
*OEVTUSJBM&UIFSOFU
*OEVTUSJBM&UIFSOFU
Note
Network security
To secure the communications of the plant network, you should use a SCALANCE 󹪝rewall.
4.1 SIMATIC CN 4100 communication system con󹪝guration
When using the SIMATIC CN 4100 communication system, the following interfaces are available:
• The integrated Ethernet ports (X1 and X2), which can be connected to the plant network
individually or redundantly.
• The integrated Ethernet ports (X1.1; X1.2 and X2.1; X2.2), which can be connected
individually or redundantly to two Ethernet networks as interfaces to third-party systems.
CN 4100 Communication System
Equipment Manual, 10/2021, A5E50871363-AA 17
