8.3 LEDs of the RJ45 port
Denition

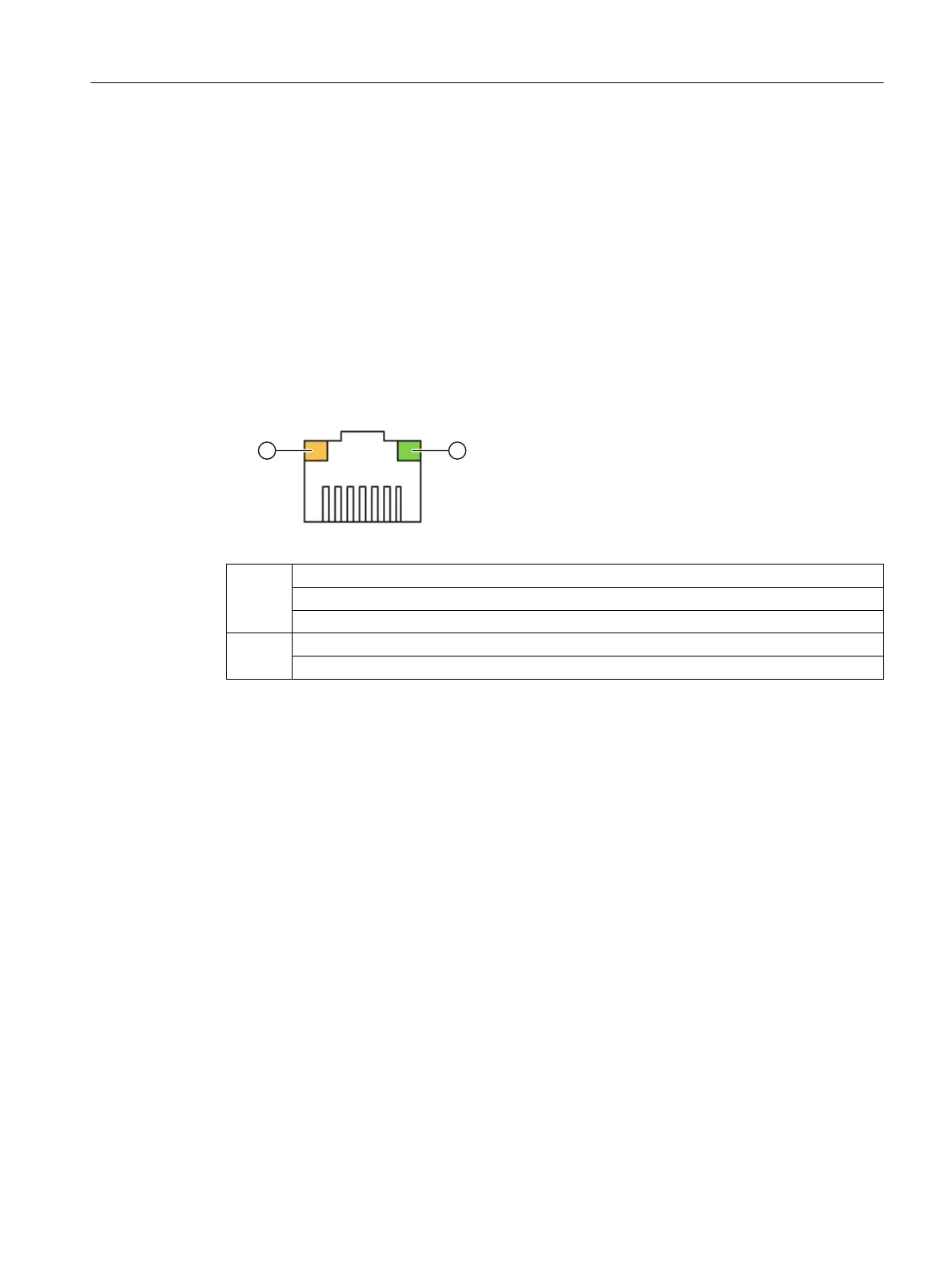

Each RJ45 port has two LEDs to indicate the status of its Ethernet connection.
RJ45 Ethernet ports are available on the following devices:
• Rack
Description
① LED is o: 10 Mbps
Green steady light: 100 Mbps
Orange steady light: 1000 Mbps
② Continuous light: Active connection (e.g. to a hub).
Flashes: Activity
