Siemens SIMATIC CN 4100 - CPU Module Interface Connections

Description
The rack is equipped with the following Ethernet ports (10/100/1000 Mbps) for communication
via 󹪝eldbus protocol or standard Ethernet:
• Two Ethernet ports for the plant network
• Four Ethernet ports for third-party systems

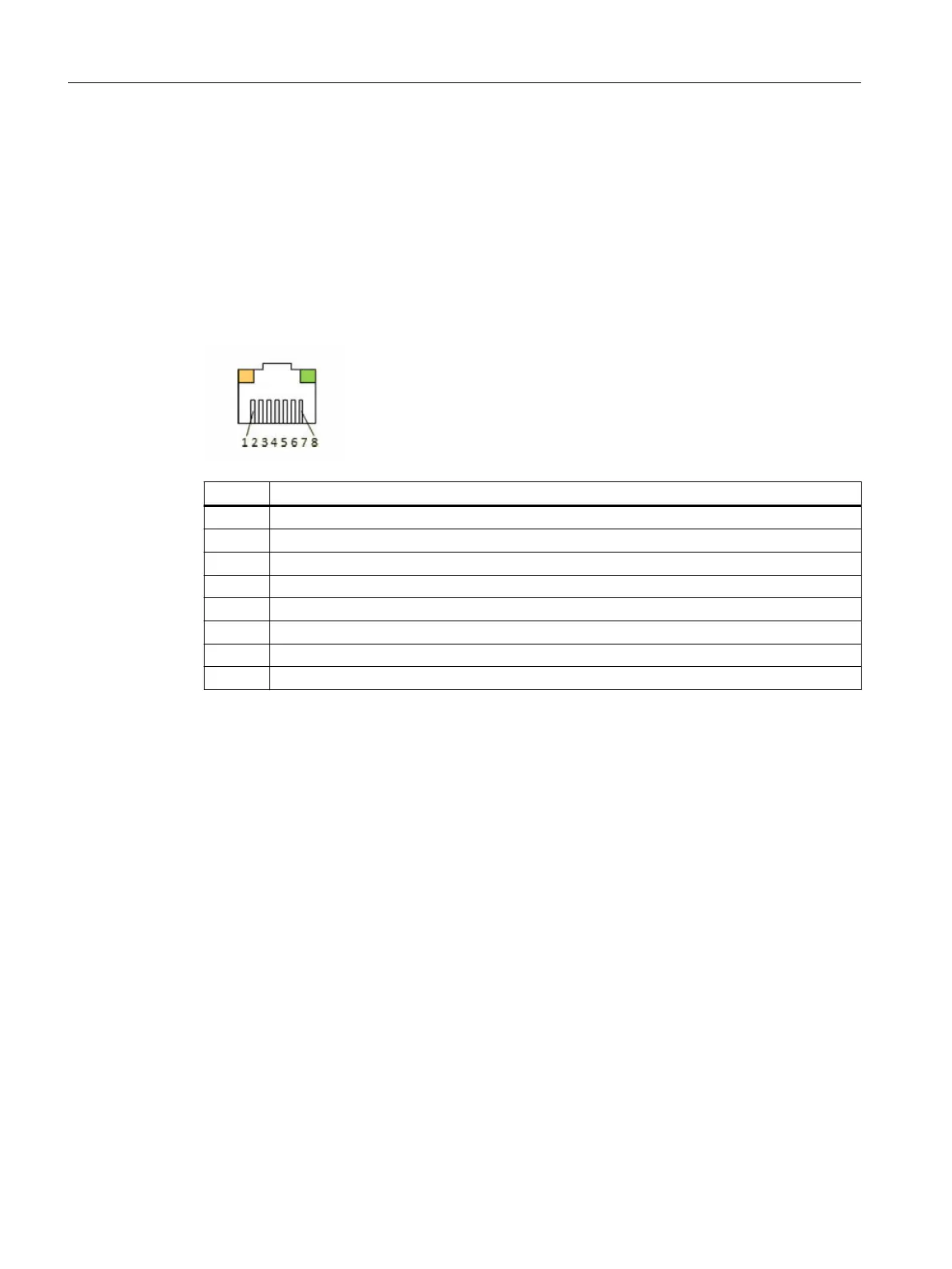

Design
Pin Description
1 BI_DA+
2 BI_DA-
3 BI_DB+
4 BI_DC+
5 BI_DC-
6 BI_DB-
7 BI_DD+
8 BI_DD
B.2 Connections of the CPU module
B.2.1 Micro-HDMI port of the CPU module
De󹪝nition
The Micro-HDMI port can be used to connect a monitor.
Description
The CPU module is equipped with a Micro-HDMI port.
Data connections
B.2 Connections of the CPU module
CN 4100 Communication System
70 Equipment Manual, 10/2021, A5E50871363-AA
